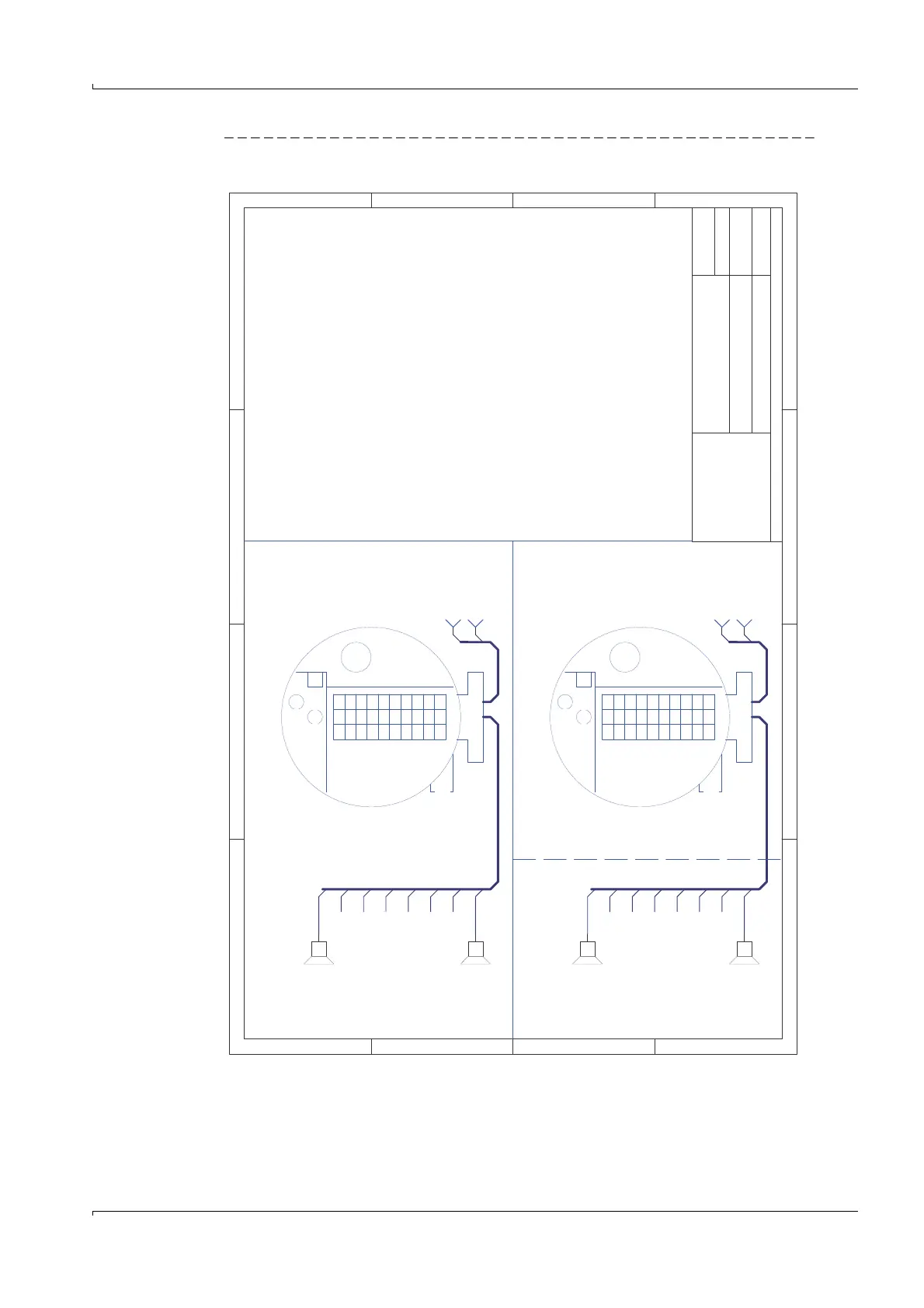

Figure 105 Control drawing 781.00.02 (page 2)
1 2 34
A B C D
4
321
D
C B A
2
Sick Engineering GmbH Bergener Ring 27 01458 Ottendorf-Okrilla
MKO
6
2.0
18-Jul-2012 _
Format: Page von
A4
FLOWSIC600-x-x-C-x-x (Gas groups C, D) Drawing No.
781.00.02
Rev.:
Control Drawing
issued by
US-Transducer US-Transducer
GERMANY
31 32
33
34 51 52 41 42 81 82
GND
1
(
+
)
2
(
-
)
G
ND
Up to 8 [Exia] Terminals for Ultrasonic Transducers manufactured by SICK only with the following Entity Parameters
Class I, Division 1, Groups C and D, Temp. Code T4, Class I, Division 2, Groups C and D, Temp. Code T4 Class I, Zone 1, Group II B, Temp. Code T4, Class I, Zone 2, Group II B, Temp. Code T4
US-Transducer US-Transducer
31 32 33 34 51 52 41 42 81 82
GND
1
(
+
)
2
(
-
)
G
ND
Up to 8 [Exia] Terminals for Ultrasonic Transducers manufactured by SICK only with the following Entity Parameters
Class I, Zone 0, Group II B, Temp. Code T4
Class I, Zone 1, Group II B, Temp. Code T4
Division 1 / Zone 0 / Zone 1 installation 1. Maximum non-hazardous area voltage not to exeed 125V 2. In the US install in accordance with the NEC (ANSI/NFPA 70) and ANSI/ISA RP 12.6.) 3. In Canada install in accordance with the CEC part 1 4. [ Exia] is defined as Associated Equipment 5. WARNING: Substitution of components may impair Intrinsic Safety. 6. For Entity Installation, use CSA certified safety barriers or other CSA certified Associated Equipment that satifies the following condtions: Voc <= Vmax, Isc <= Imax., Ca >= Ci + Ccable, La >= Li + Lcable. See drawing no. 781.00.02 page 5 for Entity parameters Division 2 / Zone 2 installation 1. Install in accordance with the CEC or NEC. 2. WARNING: Explosion Hazrad - Do not disconnect equipment unless power has been switched off or the area is known to be non - hazardous. 3. WARNING: Explosion Hazard - Substition may impair suitability for Class 1, Division 2
Voc=51.2V Isc=77mA Ca=18nF La=0.03mH Voc=51.2V Isc=77mA Ca=18nF La=0.03mH
Power Supply: Terminals 1(+), 2(-) Vin=12V to 24V Iin= 60mA to 150mA Current output 4-20mA: Terminals 31,32 Vin=30V Iin=100mA
Binary outputs 1, 2 and 3 Pulse output: Terminals 51, 52 Config. output: Terminals 41, 42 Error output: Terminals 81, 82 Vin= 30V Iin= 100mA Data-Interface (RS485): Terminals 33, 34 Vin=5V Iin=174mA
Divsion 1 / Zone 1 Explosion Proof installation
Connector Connector
SPU-LINK (Option only) Voc=12.3V Isc=130mA Ca=4μF La=4mH
Connector Connector
SPU-LINK (Option only) Voc=12.3V Isc=130mA Ca=4μF La=4mH
Field Terminal Installation:
