90 FLOWSIC600 · Technical Information · 8010125 V 4.0 · © SICK AG
Flow Calibration
Subject to change without notice

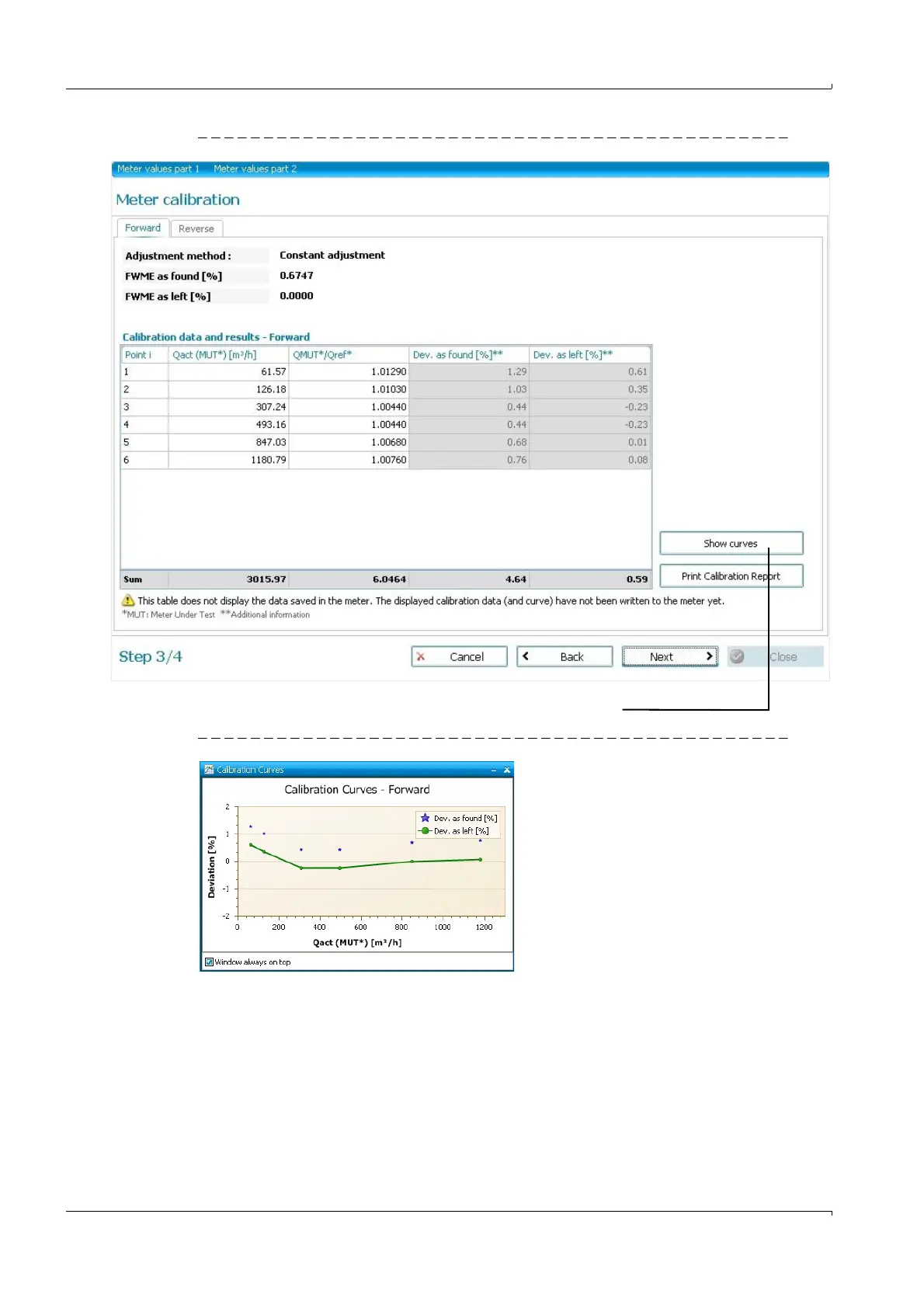

Figure 39 "Calibration wizard", Step 4
Figure 40 Calibration curve for adjustment with constant factor (example)
The calibration wizard calculates the WME (Weighted Mean Error) or the FMWE (Flow
Weighted Mean Error) and the adjust factor (or polynomial coefficients).
Use the tabs to change between the table for forward and reverse flow.
Click "Show curves" to display the calibration curves.
Click "Next".
