SICK S300 User Manual

Operating instructions Chapter 4
S300
8010948/YY96/2016-02-17 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 47
Subject to change without notice
Configurable functions
Vertical operation
In vertical operation (for access protection and hazardous point protection) according to
I
EC 61496<3 you must always configure the protective fields used with the contour as
reference function.
Use lateral, vertical boundaries of the opening (e.g. door frame) and the floor as reference.
If in this case the position of the S300 is changed in one or more planes, the distance to
the reference changes and the S300 switches its OSSDs to the OFF state.
4.10 Monitoring cases
The S300 supports a configuration with multiple monitoring cases. By switching the moni-
toring case you can switch to different monitoring conditions in the case of a change to the
monitoring situation.
WARNING
Ensure for each monitoring case that the minimum distance to the hazardous area is
maintained!
See chapter 5 “Mounting” on page 56.
The number of monitoring cases that can be configured is dependent on the variant and
on the control. The following table shows the number of monitoring cases:
Standard Advanced Professional Expert
Applications with local static control inputs on the S300
1 4 8 8
Applications with static control inputs via EFI (e.g. on a Flexi Soft)
32 32 32 32
Applications with dynamic control inputs on the S300 or via EFI
– – 32 32
Applications with dynamic control inputs via EFI
32 32 32 32

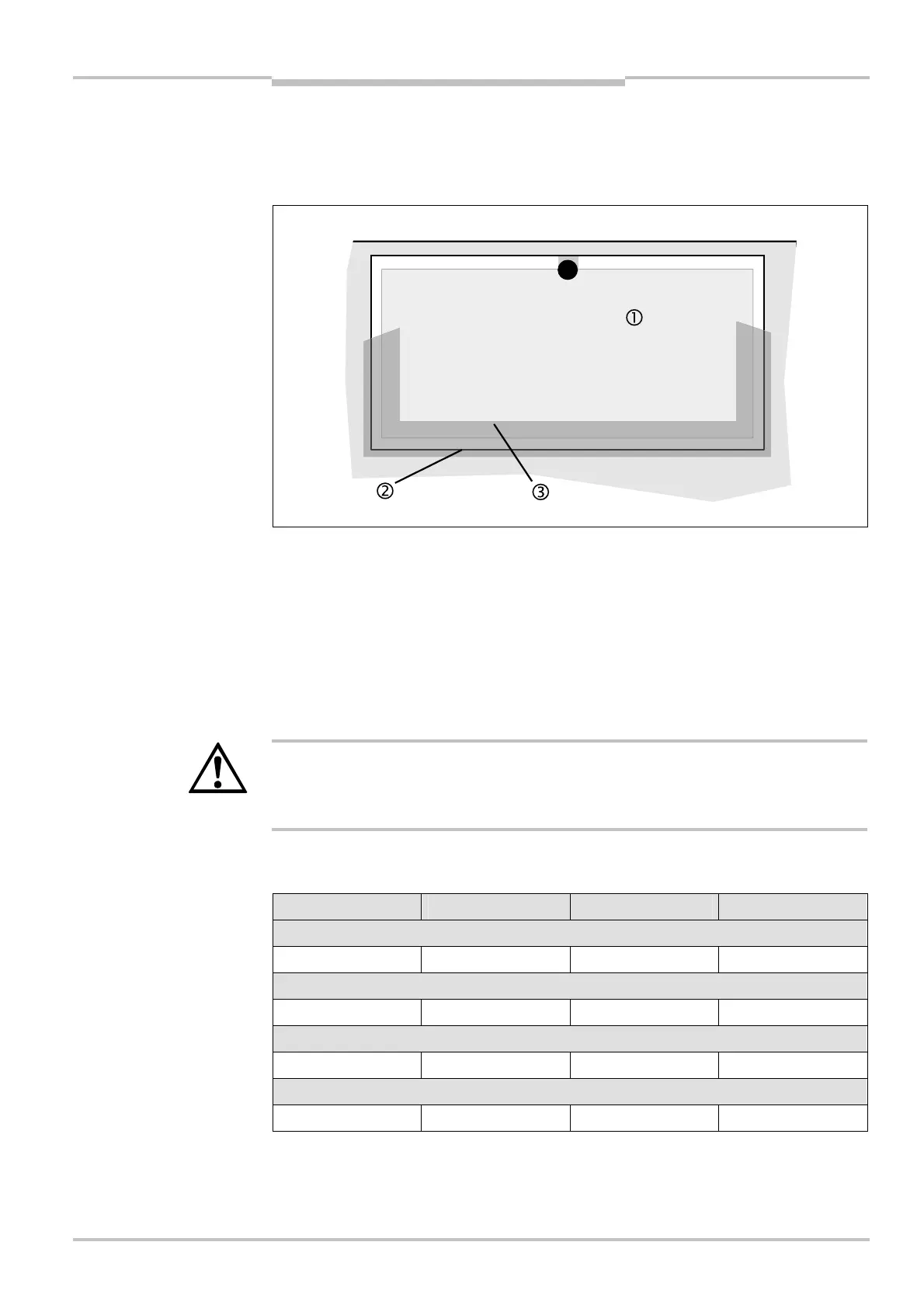

Fi
g.
22
:
Contour as reference
for vertical operation
 Protective field
 Contours of the machine
opening
 Contour segment
Recommendation
Tab.
17
:
Number of monito
-
ring cases per variant and
application

SICK S300 Specifications

General

Protection Class	IP65
Resolution	30 mm
Interface	RS-422, Ethernet
Power Supply	24 V DC
Operating Temperature	0 °C ... +50 °C
