Application examples and
connection diagrams
7.3.6 Protective field switching between two S300 with static inputs
S300 Expert with S300 Expert in host/guest conjunction with relays/contactors; operating
mode: without restart interlock with external device monitoring; static protective field
switching via inputs A, B and C. The protective fields affect the related OSSDs on host or
guest.

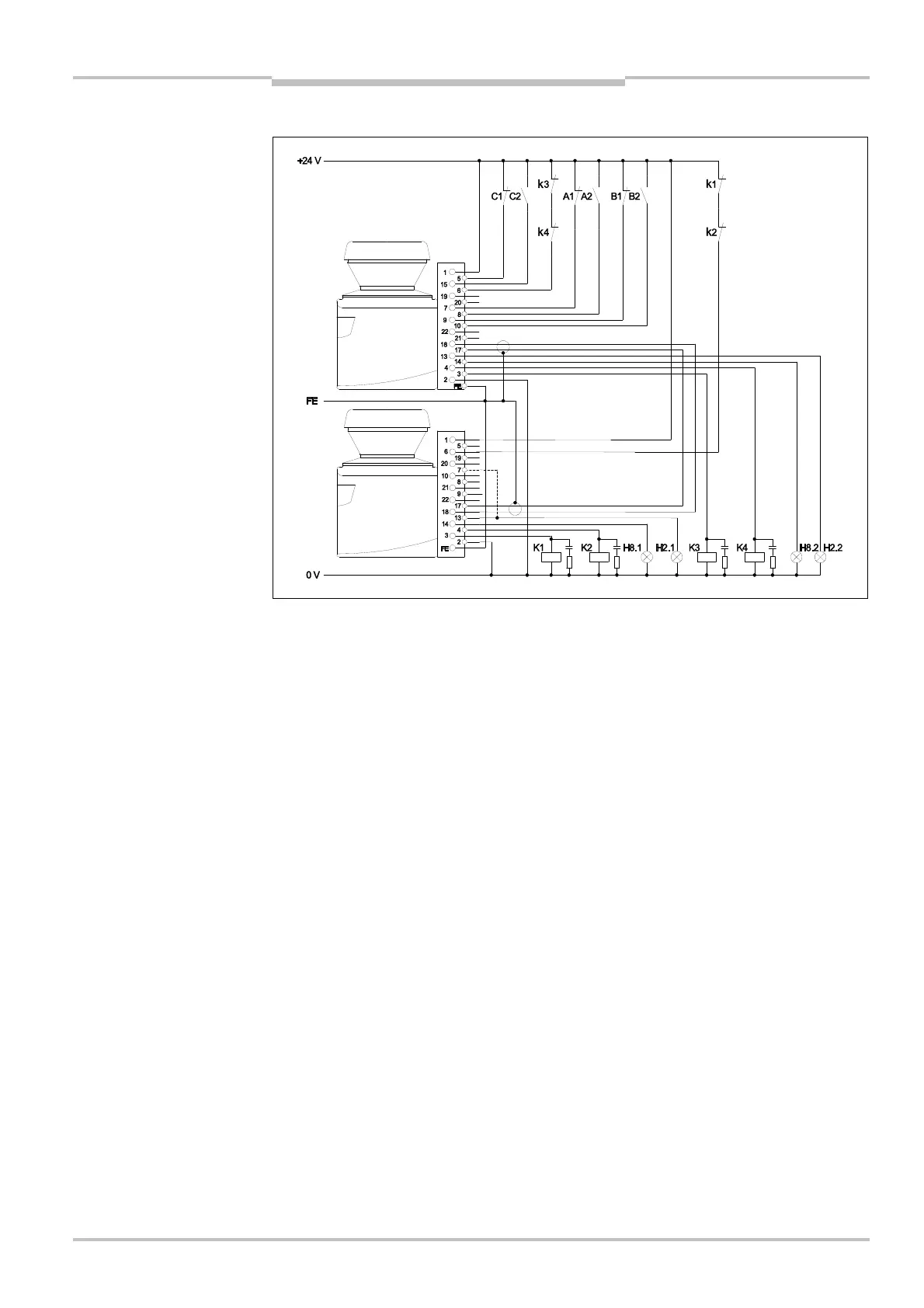

Fig.
72
:
Connection diagram
for protective field switching
between two S300 using
static inputs
S300
Expert
S300
Expert

SICK S300 Specifications

General

Protection Class	IP65
Resolution	30 mm
Interface	RS-422, Ethernet
Power Supply	24 V DC
Operating Temperature	0 °C ... +50 °C
