Operating instructions Chapter 6
S300
8010948/YY96/2016-02-17 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 87
Subject to change without notice
Electrical installation
6.4 Configuration connection M8× 4 (serial interface)
Pin S300 PC-side RS-232-D-Sub
1 Reserved Not assigned
2 RxD Pin 3
3 0 V DC (voltage supply) Pin 5
4 TxD Pin 2
After configuration always remove the connecting cable from the configuration connec-
tion!
After the configuration of the device has been completed, locate the attached protection
cap to cover the configuration connection.

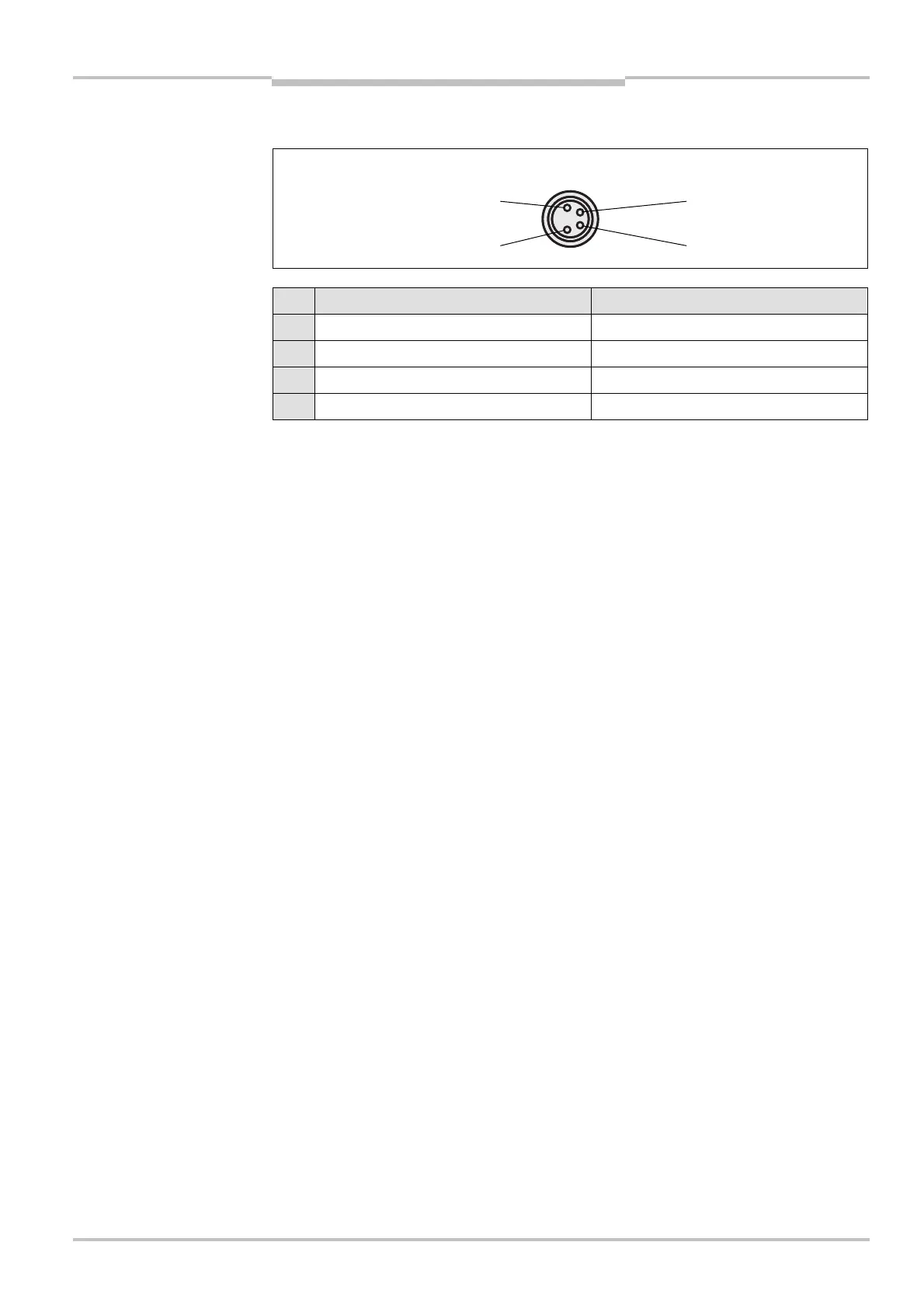

Fig.
59
:
Pin assignment
configuration connection
M8
× 4
Tab.
26
:
Pin assignment
configuration connection
M8
× 4
Notes
3
4
1
2
