7.2.4 Vehicle monitoring with four safety laser scanners and the Flexi Soft modular
s
afety controller

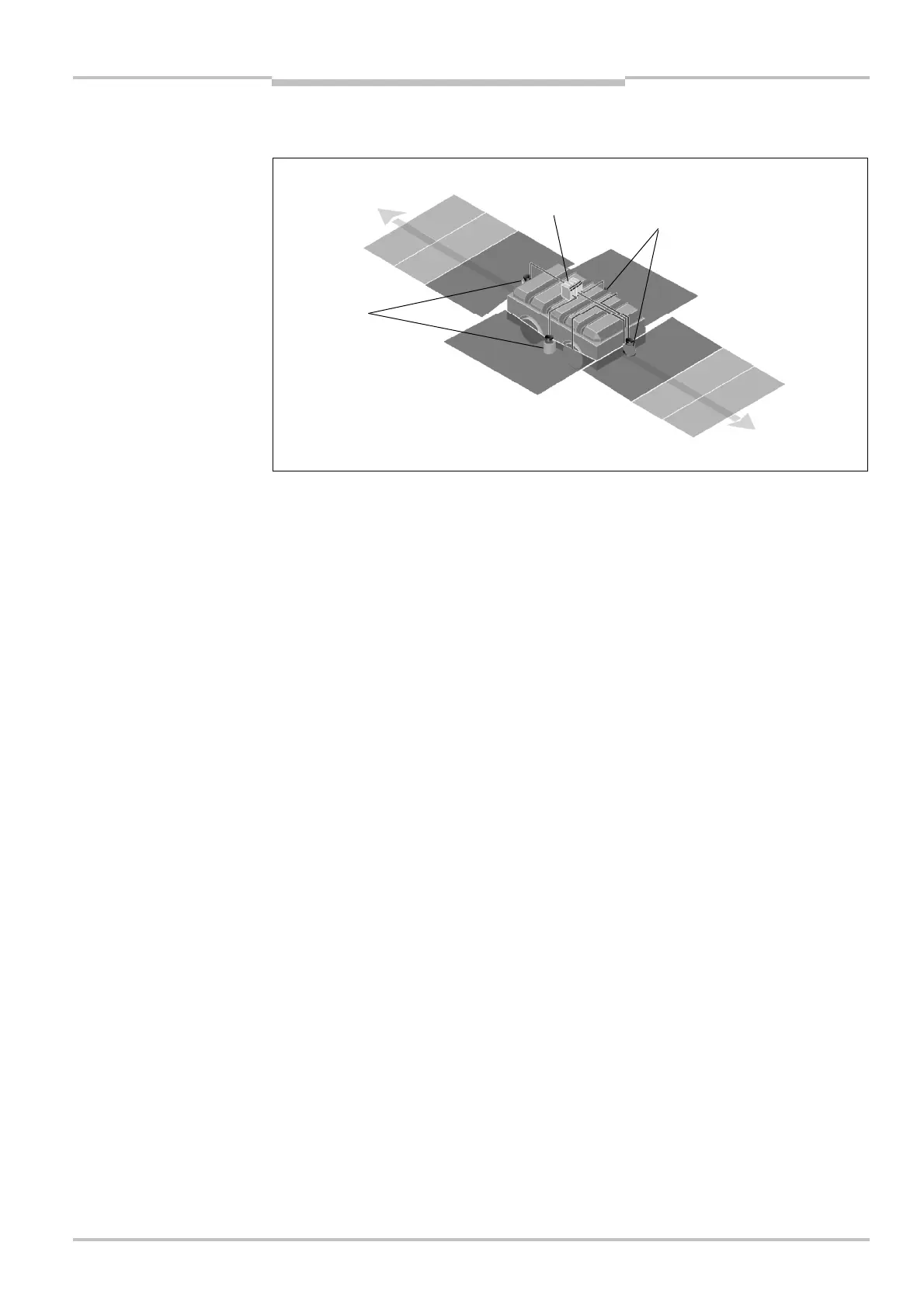

The protective fields on the two S300 Professional monitor in the related direction of travel
on forward or reverse movement. The protective fields on the S300 Advanced monitor the
area to the side of the vehicle. The information on the protective fields is passed via EFI to
the Flexi Soft safety controller and there combined using logic modules.
The signal on the safety outputs on the Flexi Soft safety controller is passed to the vehicle
control.
with S300 Professional and
S300 Advanced
