Application examples and
connection diagrams
7.3.4 Protective field switching with static and dynamic inputs
S300 Professional in conjunction with UE10-3OS; operating mode: without restart interlock
with external device monitoring; dynamic protective field switching by the incremental
encoders A and B as well as static protective field switching by the control input IN C.
7.3.5 Protective field switching between two S300 with dynamic and static inputs
S300 Professional with S300 Professional in host/guest conjunction with relays/contac-
tors; operating mode: without restart interlock with external device monitoring; dynamic
protective field switching by the incremental encoders A and B on the host; static protec-
tive field switching using the control input IN C on the host. The protective fields affect the
related OSSDs on host or guest.

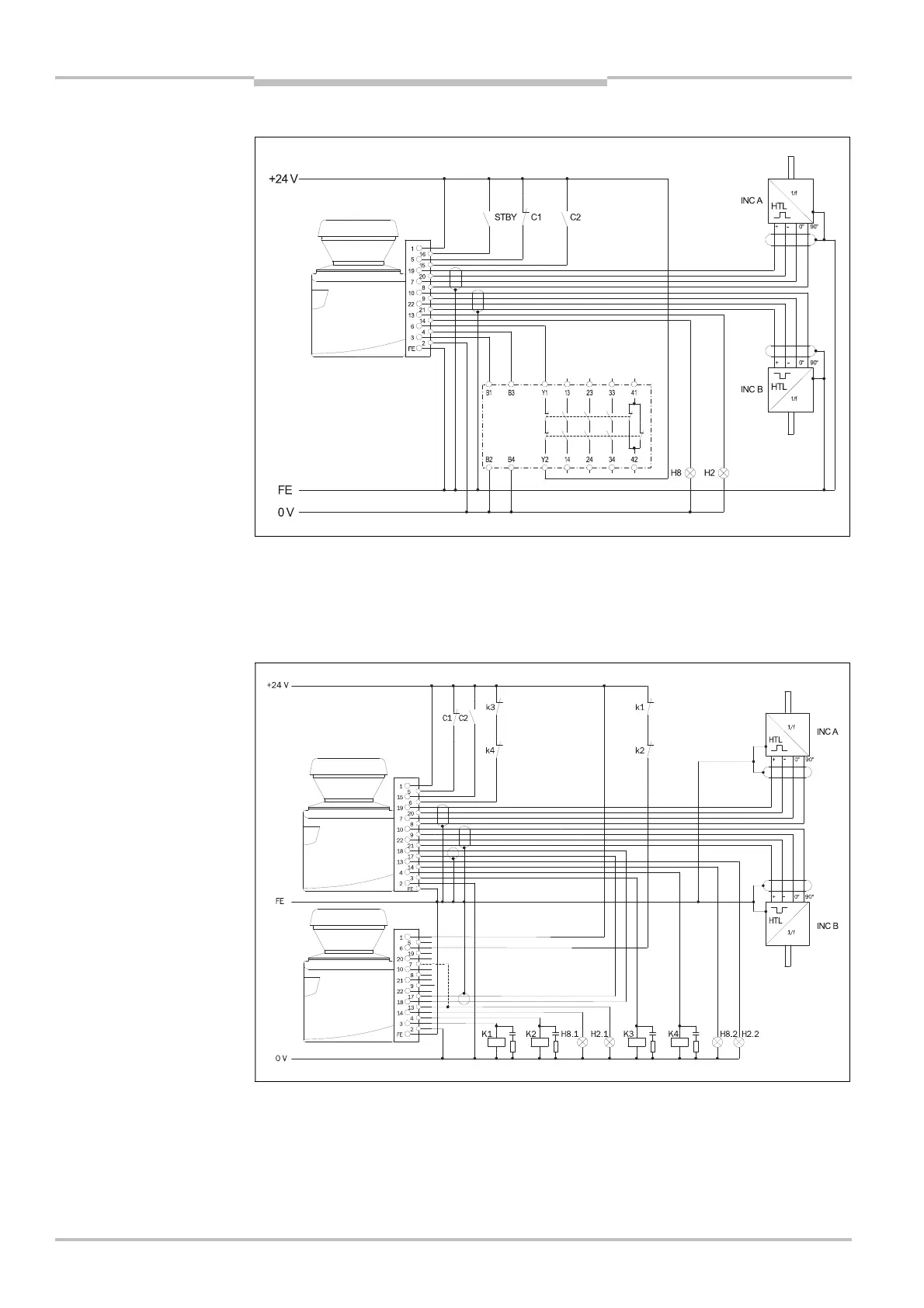

Fig.
70
:
Connection diagram
for protective field switching
using static and dynamic
inputs
Fig.
71
:
Connection diagram
for protective field switching
between two S300 with
dynamic and static inputs
S300
Professional

UE103OS
S300
Professional
S300
Professional

SICK S300 Specifications

General

Protection Class	IP65
Resolution	30 mm
Interface	RS-422, Ethernet
Power Supply	24 V DC
Operating Temperature	0 °C ... +50 °C
