Mounting
5.7.1 Direct mounting
The S300 has two threaded holes M5× 8 on the rear. Using them you can mount the S300
directly on the intended mounting surface. To avoid a possible tendency to vibrate, if
n
ecessary the reference surface on the rear can be used as the third mounting point .
During mounting, please observe the dimensional drawings (see section 12.6 “Dimensio-
nal drawings” on page 132).

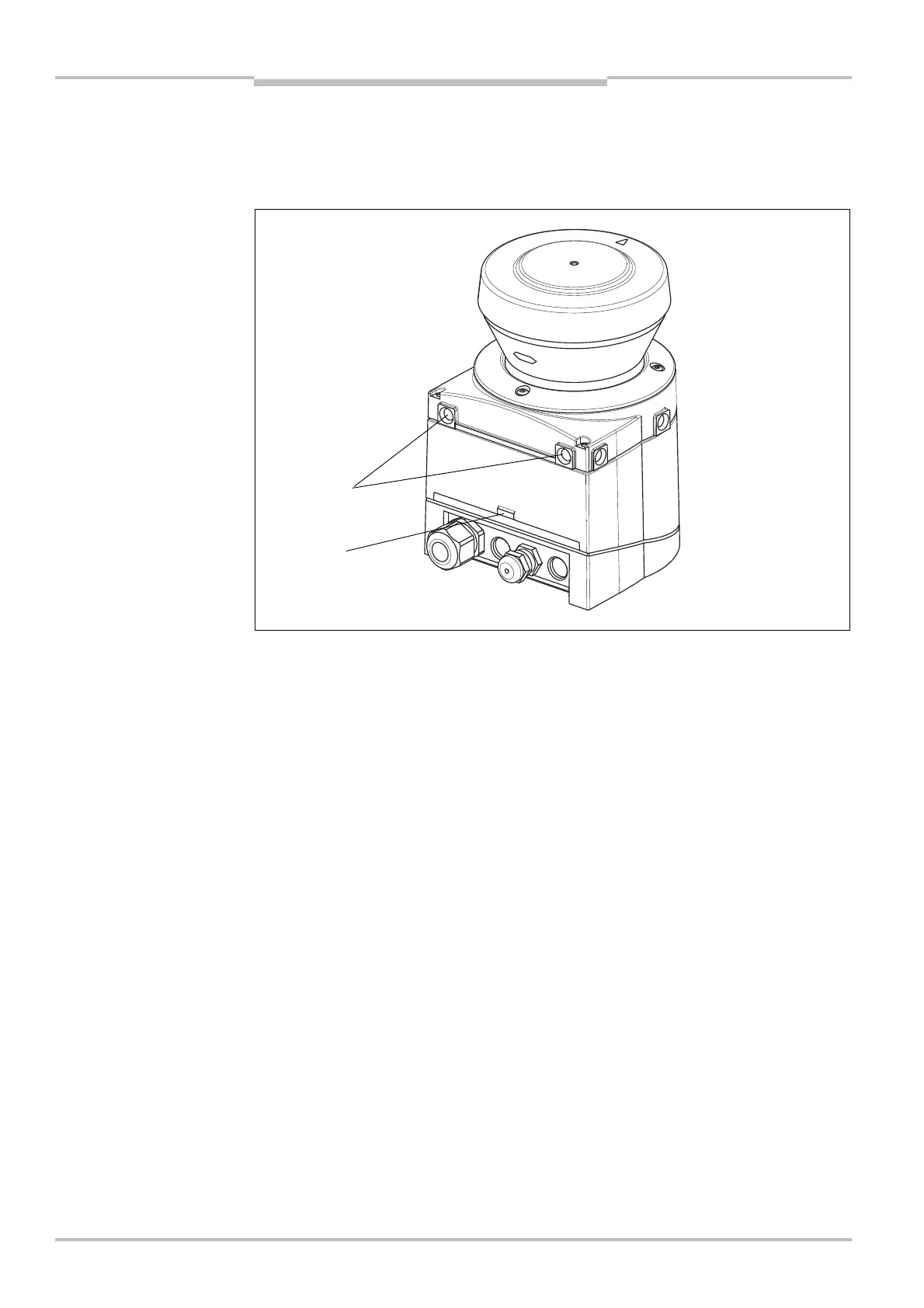

Fig.
45
:
Direct mounting
Note
M5
×
8

