SICK S300 User Manual

Chapter 7 Operating instructions
S300
96 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8010948/YY96/2016-02-17
Subject to change without notice
Application examples and
connection diagrams
7.3.7 Protective field switching between an S3000 and an S300 with static and
d
ynamic inputs
S3000 Professional with S300 Professional in host/guest conjunction with relays/contac-
tors, operating mode: without restart interlock, with external device monitoring, direction of
travel dependent dynamic protective field switching by the incremental encoders C and D
as well as static protective field switching by the control inputs IN A and IN B on the
S3000. The protective fields affect the OSSDs on the host
7.3.8 Protective field switching with a Flexi Soft safety controller
One S3000 Professional with one S300 Professional in an EFI system; Protective field
evaluation, restart interlock and EDM via EFI using a Flexi Soft safety controller. Static
protective field switching via EFI using the control inputs S1 to S4 of the Flexi Soft safety
controller.

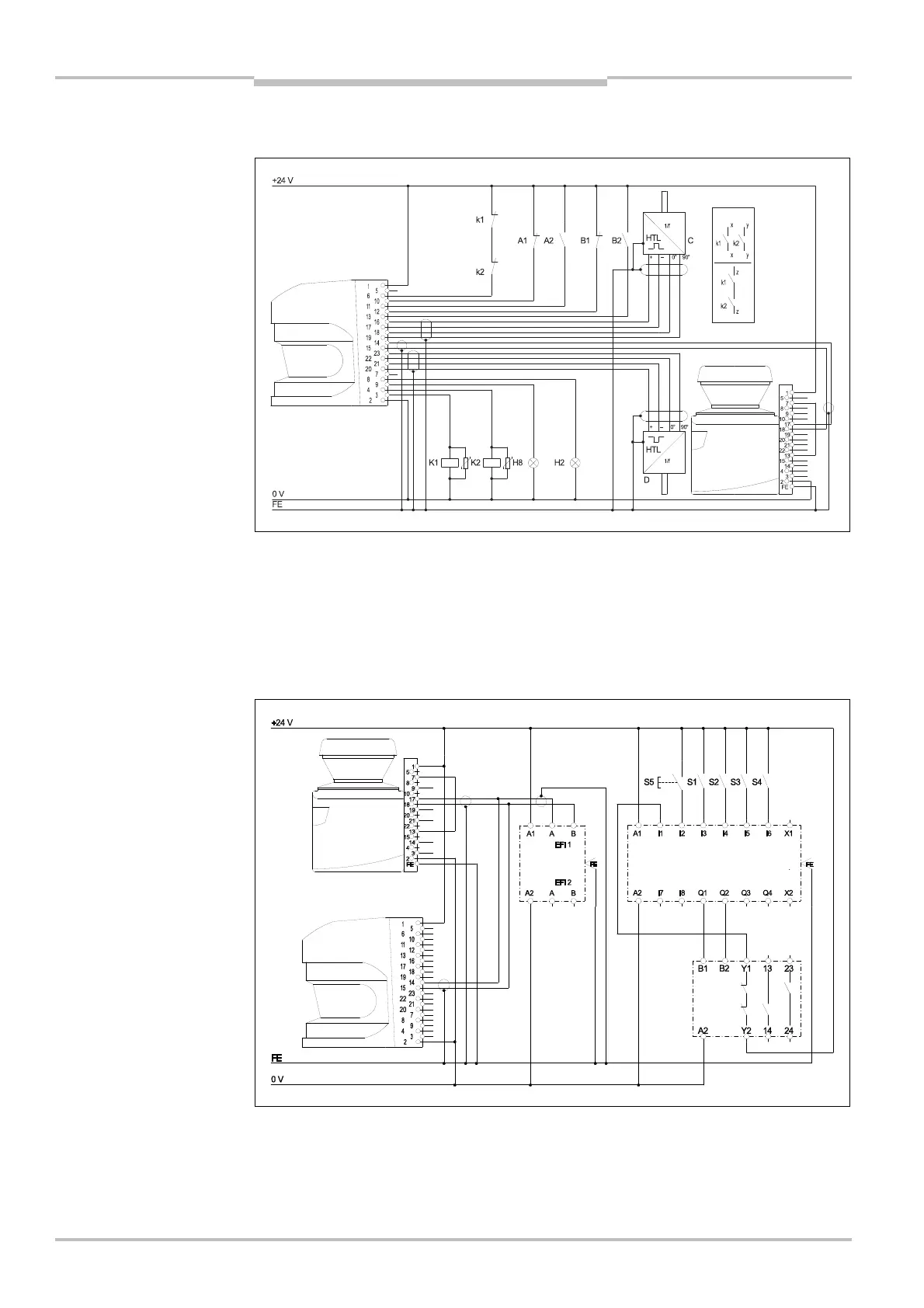

Fig.
73
:
Connection diagram
for protective field switching
between an S3000 and an
S300 using static and
dynamic inputs
Fig.
74
:
Connection diagram
protective field switching
between S3000 and S300
using a Flexi Soft safety
controller
S3000
Professional
S300
Professional

FX3<XTIO
S3000
Professional
S300
Professional

FX3<CPU1

UE10-
2FG

SICK S300 Specifications

General

Protection Class	IP65
Resolution	30 mm
Interface	RS-422, Ethernet
Power Supply	24 V DC
Operating Temperature	0 °C ... +50 °C
