Application examples and
connection diagrams
7.1.2 Applications with multiple monitored areas (S300 Advanced)
The two areas to be monitored are switched using the static control inputs depending on
the phase of the process on the machine. For example the area  or the area  can be
monitored.
7.2 Mobile applications
7.2.1 Vehicle monitoring for unidirectional travel (S300 Standard)
The S300 monitors the area in the direction of travel and switches its OSSDs to the OFF
state to stop the vehicle as soon as there is an object in the protective field.

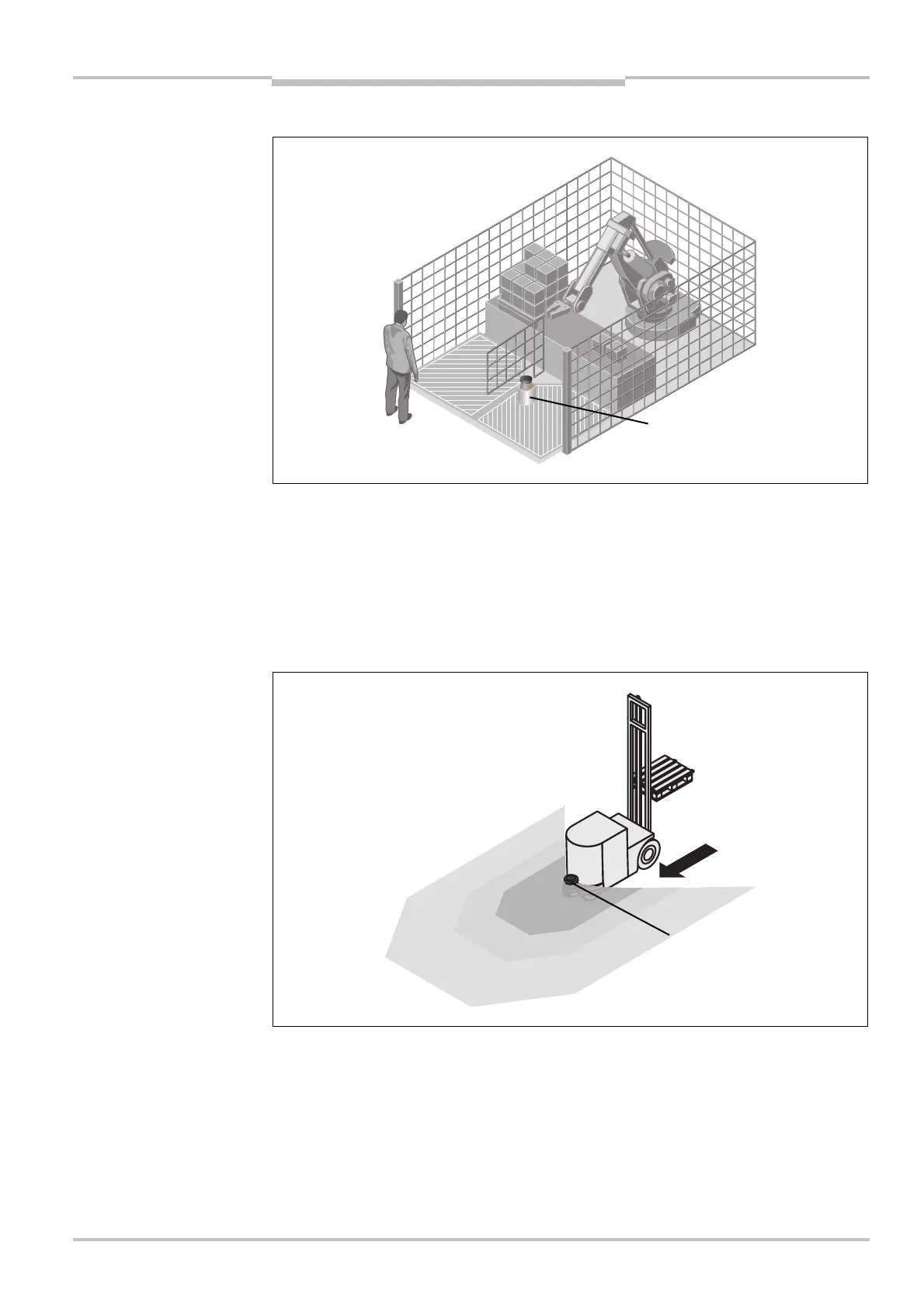

Fig.
62
:
Hazardous area
protection with
S300 Advanced
Fig.
63
:
Vehicle monitoring
with S300 Standard
S300
Advanced with two pro
-
tective fields and warning fields —
mounted horizontally


S300
Standard with
one protective field and
two warning fields

SICK S300 Specifications

General

Protection Class	IP65
Resolution	30 mm
Interface	RS-422, Ethernet
Power Supply	24 V DC
Operating Temperature	0 °C ... +50 °C
