Operating instructions Chapter 5
S300
8010948/YY96/2016-02-17 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 75
Subject to change without notice
Mounting
5.7.2 Mounting with mounting kit 1a or 1b
With the aid of mounting kit 1 you can mount the S300 indirectly on the mounting surface.
The mounting kit is available as mounting kit 1a without protection device for the optics
c
over and as mounting kit 1b with protection device for the optics cover.
 Mount mounting kit 1a or 1b on the mounting surface.
 Then mount the S300 on the mounting kit 1a or 1b.
During mounting, please observe the dimensional drawings (see section 12.6 “Dimensio-
nal drawings” on page 132).

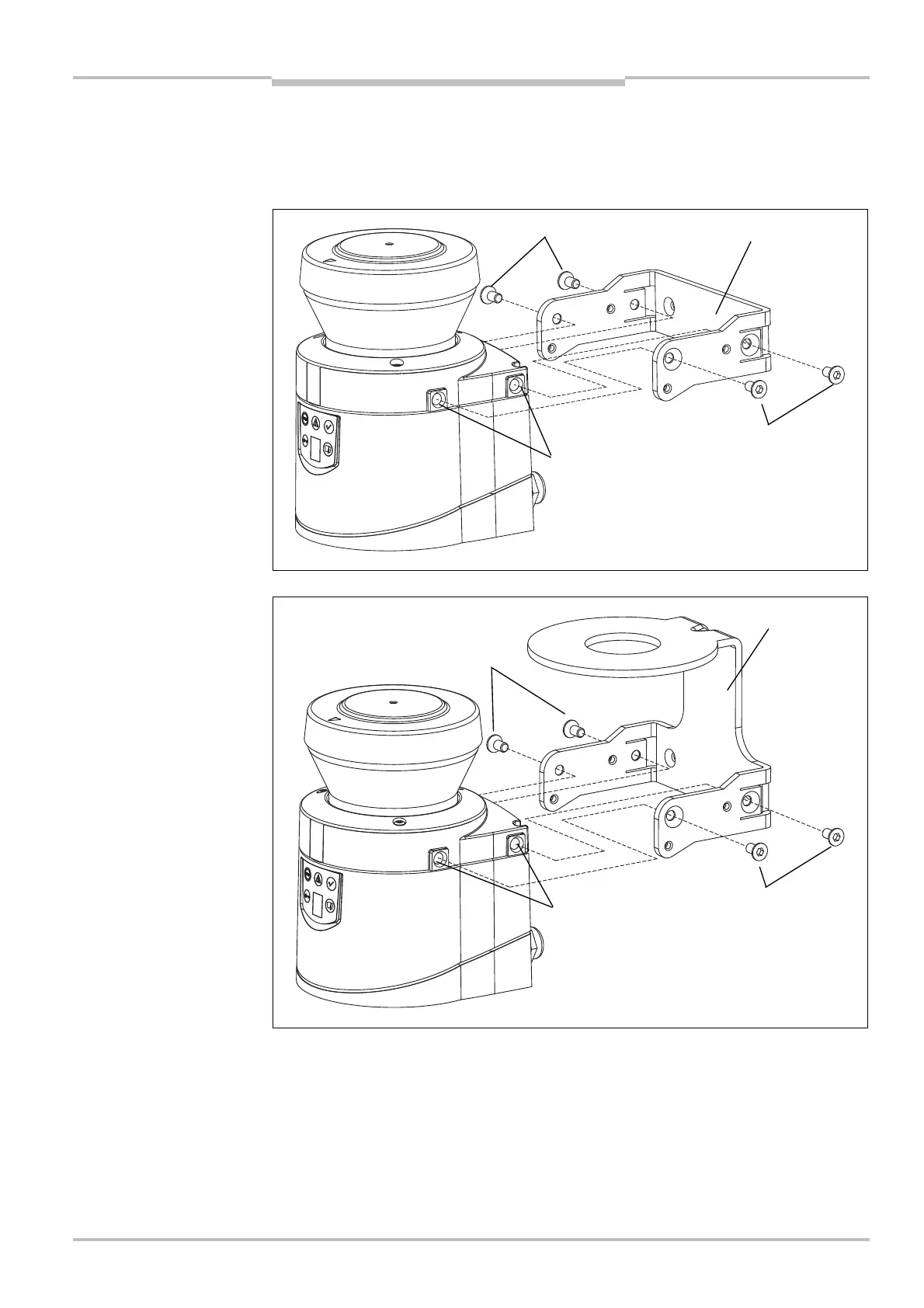

Fig.
46
:
Mounting with
mounting kit 1a
Fig.
47
:
Mounting with moun
-
ting kit 1b incl. protection for
the optics cover
Note
Mounting kit
1b
Threaded holes
M5
×
8
Fixing screws
Fixing screws
Mounting kit
1a
Threaded holes
M5
×
8
Fixing screws
Fixing screws

SICK S300 Specifications

General

Protection Class	IP65
Resolution	30 mm
Interface	RS-422, Ethernet
Power Supply	24 V DC
Operating Temperature	0 °C ... +50 °C
