3 Product description
3.1 MLG-2 type label

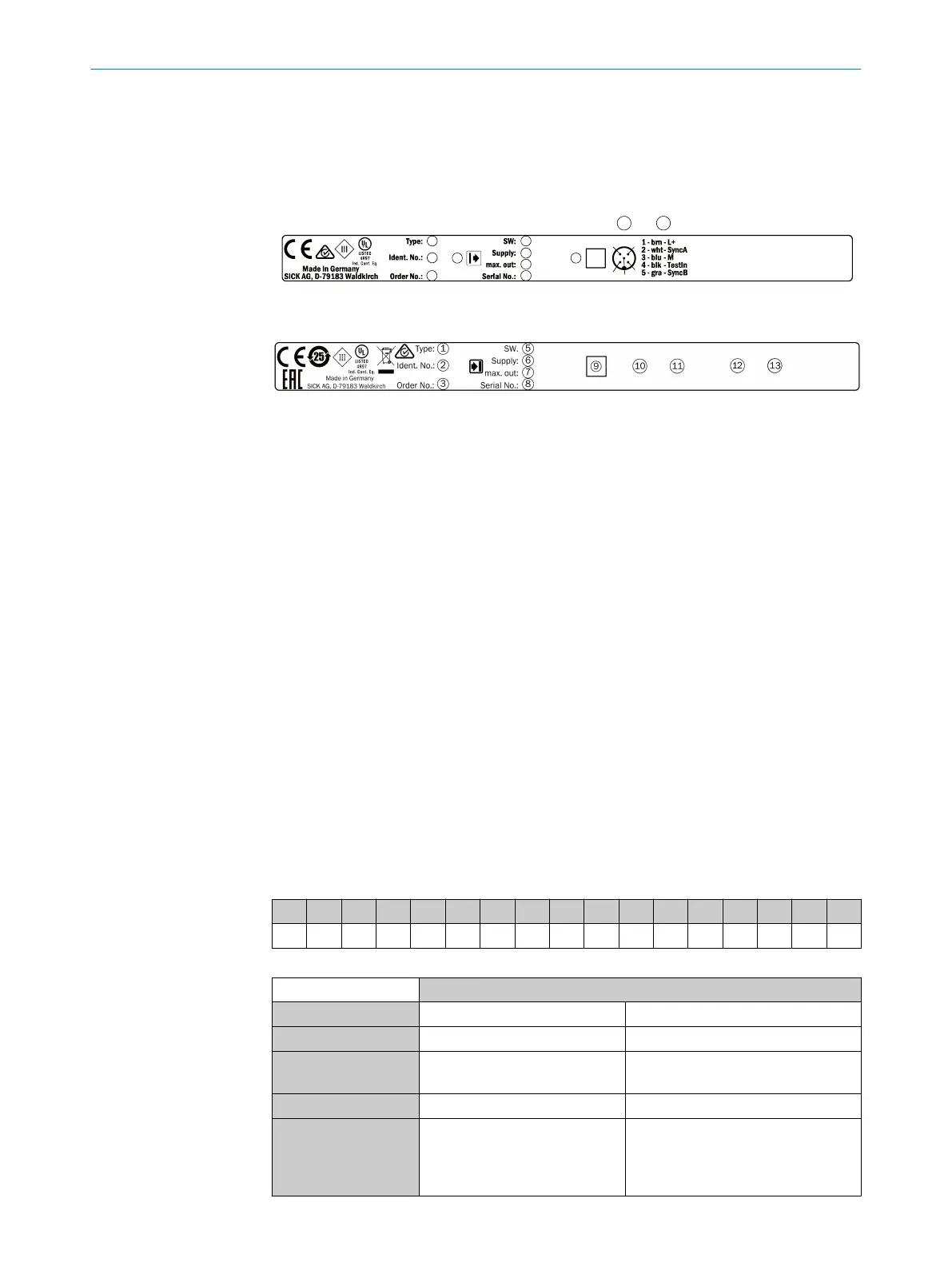

The senders and receivers of the MLG-2 each have a type label.
2
5
1
34
1110
4
7
6
5
9
3
2
1
8
Figure 1: Sender type label
Figure 2: Receiver type label
1
Type code
2
Part number for the individual sender or receiver
3
Part number for the whole MLG-2
4
Sender or receiver symbol
5
Firmware version
6
Required voltage supply
7
Maximum output current
8
Serial number
9
2D Matrix Code, contains the part numbers of the sender/receiver, the part number of
the MLG-2, and the serial numbers
ß
Diagram of the M12/5-pin/M12/8-pin male connector
à
Pin assignment of the M12/5-pin/M12/8-pin male connector
á
Diagram of the M12/4-pin female connector
â
Pin assignment of the M12/4-pin female connector
3.2 Type code
Example
MLG-2 with 5 mm beam separation, WebChecker type, measurement field width
750 mm, analog interface, 1 input, 1 digital output as well as 2 analog outputs, no
options, 2.5 m sensing range.
Table 2: Example of an MLG-2 type code
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
M L G 0 5 W - 0 1 3 1 B 1 0 2 0 1
Table 3: Meaning of the positions in the type code
Position Meaning
1 … 3 Product family MLG
4 and 5 Beam separation 05 = 5 mm
6 Type W = WebChecker
0 = special type
7 Hyphen –
8 … 11 Detection width 0131 = see "Measurement field
width", page 12
0000 = special measurement field
width
PRODUCT DESCRIPTION 3
8024643/2019-09-02 | SICK O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker
11
Subject to change without notice
