Prerequisites:
•
The MLG-2 was set up for edge measurement.
1. Parameterize the desired function on the “Enhanced Sensing” page in the “Func‐
tional configuration” menu.
✓
The result is on the “Start” and “Enhanced Sensing” pages.
More information:
•
see "“Functional configuration” menu", page 73
Example
1 2
211
2

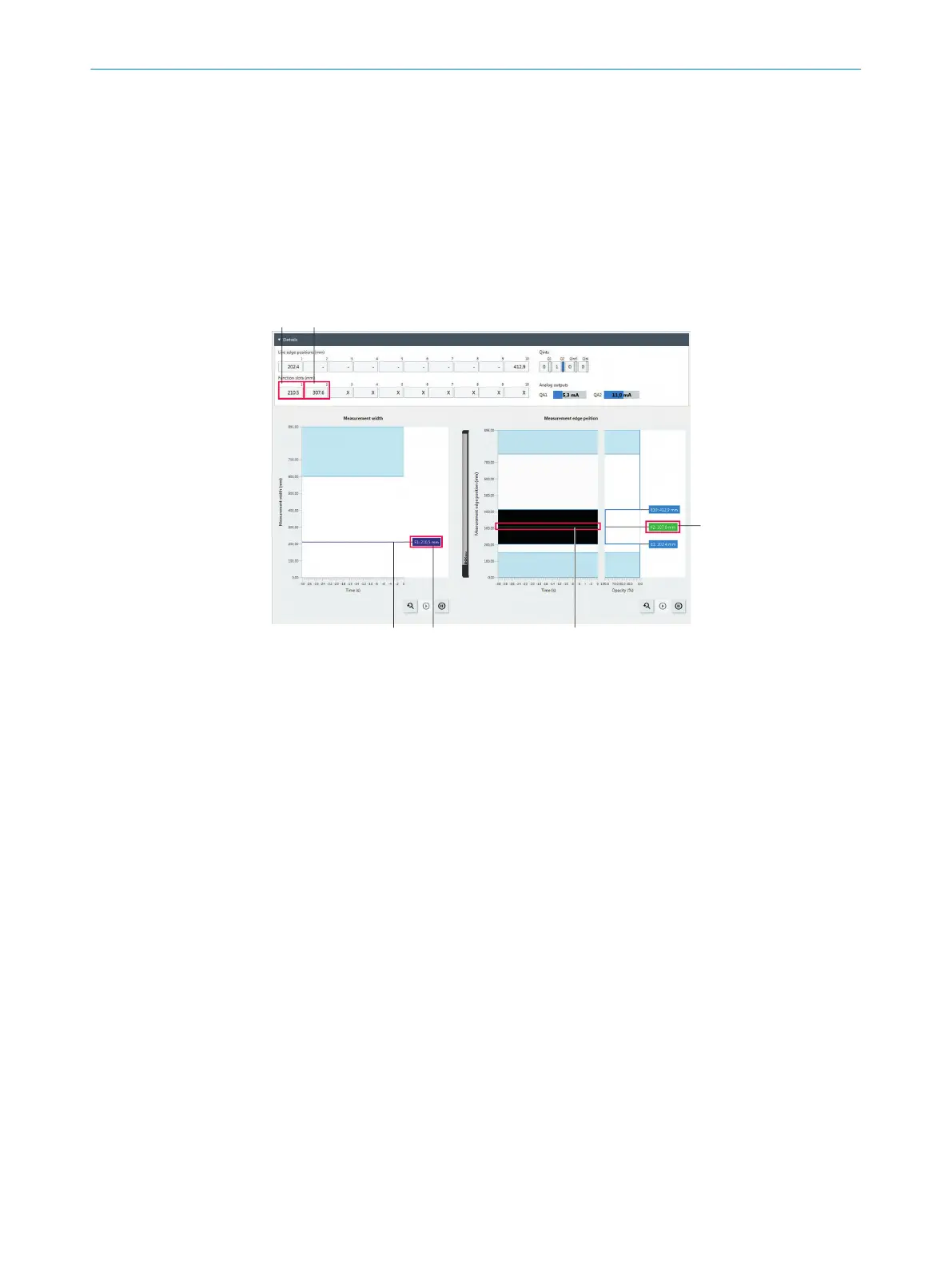

Figure 43: Results for “Functional configuration” examples, “Enhanced Sensing” page
1
Result for "F1: Calculation of the width between edges E1 and E10” function
2
Result for "F2: Calculation of the width between the center positions of edges E1 and
E10” function
9.5 Other configurations
You can run the following configurations via SOPAS ET.
For example, the following configurations are possible depending on the MLG-2-variant:
•
Configure PIN of the M12 male connector on the receiver see "“General settings”
area", page 63.
•
Parameterize analog outputs see "“Analog output” menu", page 75.
•
Parameterize switching output and inputs see "“Digital configuration” menu",
page 75.
•
Parameterize RS-485 interface.
9 COMMISSIONING VIA SOPAS
58
O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker 8024643/2019-09-02 | SICK
Subject to change without notice
