4.8 Functions: Calculation of width and center positions
You can parameterize up to 10 functions via SOPAS. The following functions are possi‐
ble:
•
Calculate width between 2 edges.
•
Calculate distance between 2 edges
The results of the functions are designated F1 to F10.
rs
5
1
4
13.5
A
A
62
ca. 1/3
ca. 2/3
10
1
3
2

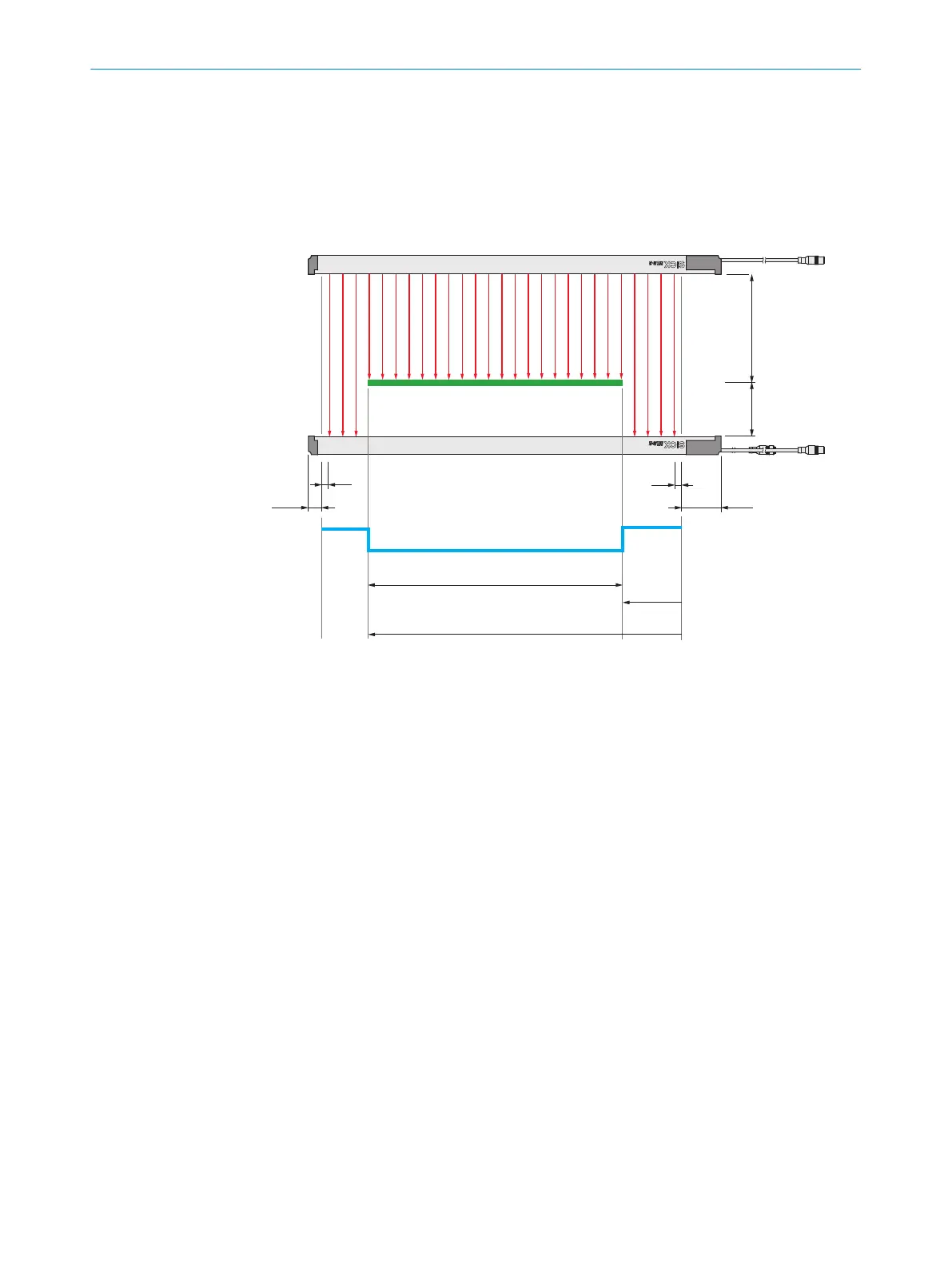

Figure 21: Example: Measured edges, calculated width
1
Object
2
Sequence of attenuation
3
Edge position 1
4
Calculated width between edges 1 and 10
5
Edge position 10
You can select every measured edge for the functions. The edges do not have to be
adjacent.
Additional information
•
see "“Functional configuration” menu", page 73
