SICK WebChecker MLG-2 User Manual

0
0,5
1,0
2,0
1,5
1
2
0 0,5 1,0 1,5 2,0
Y
X
2,5
2,5

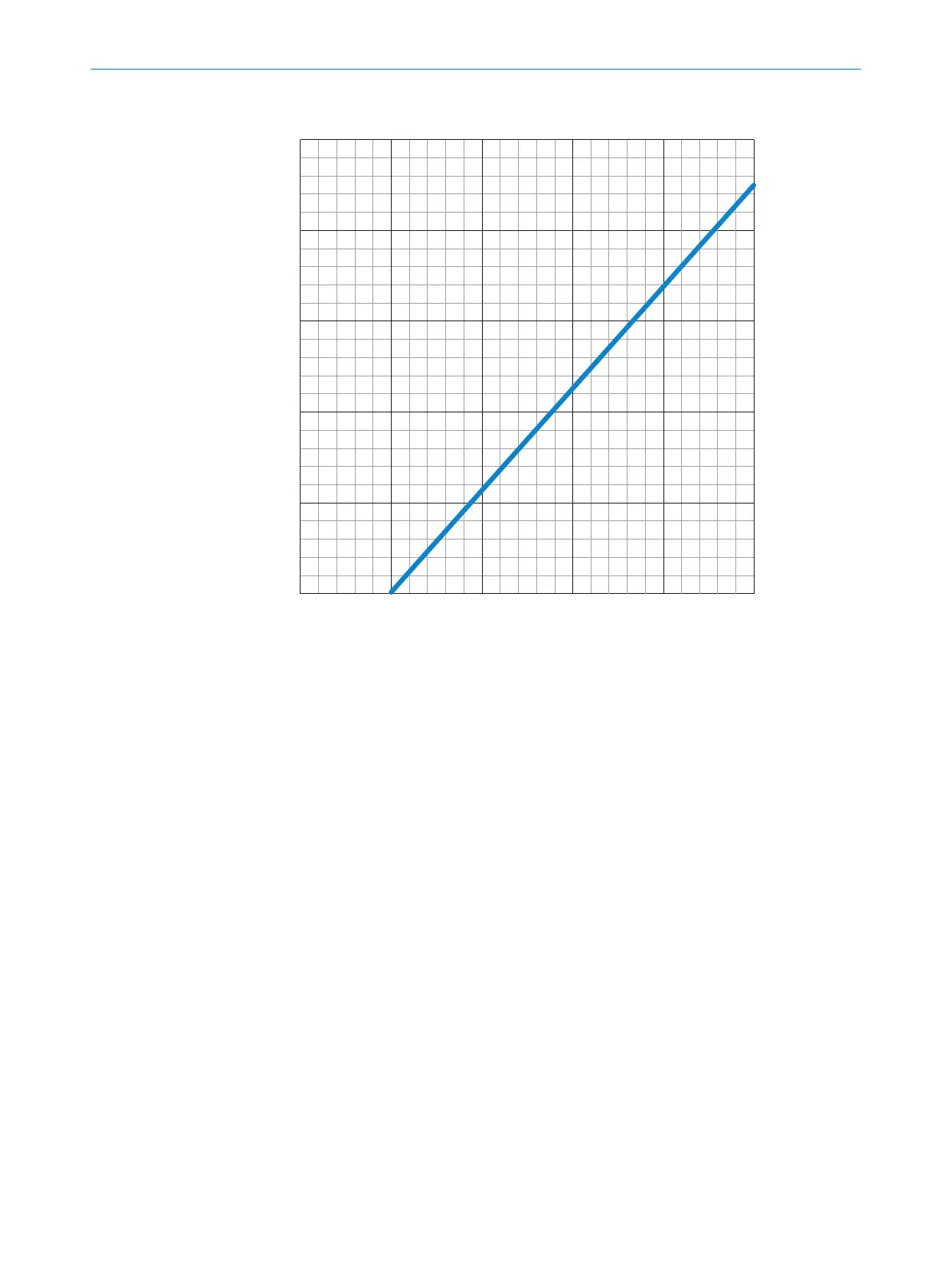

Figure 24: Graph of minimum distance from reflective surfaces
1
Minimum distance in m
2
Sender to receiver distance in m
5.3 Mounting procedure
Additional information
•
see "Planning mounting distance between sender and receiver", page 22
Observe the following points for correct mounting:
•
Align sender and receiver with the front screens toward one another with a water
level.
•
Connecting cables from the sender and receiver must point in the same direction.
•
The head sides of the sender and the receiver must be aligned.
•
Mount the sender and receiver such that the object to be detected is placed at an
optimal object position. The optimal object position is the distance between the
sender and the object and is about 2/3 of the distance between the sender and
receiver, see figure 16, page 23.
•
Observe operating range.
MOUNTING 5
8024643/2019-09-02 | SICK O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker
33
Subject to change without notice
