16.2.3 accuracy
Additional information
•
see "Planning", page 22
0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
–80 –60 –40 –20 0 +20 +40 +60 +80

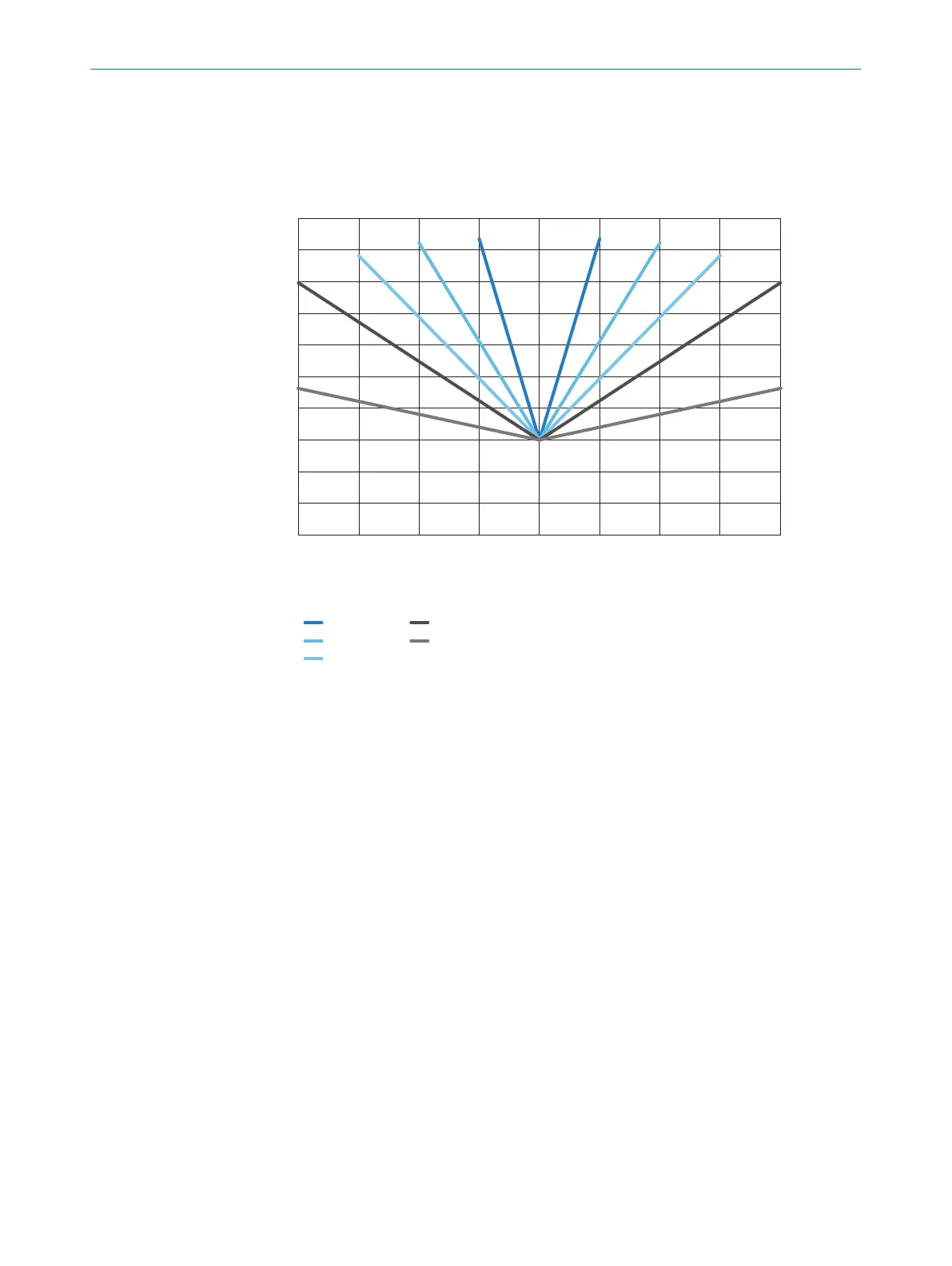

Genauigkeit einer Bahnkante in mm (± 0,3 mm)
Objektposition relativ zur Optimalposition in mm
a: 200 mm
b: 400 mm
c: 600 mm
d: 1000 mm
e: 2500 mm
1,0
Sender-Empfänger-Abstand
e e
dd
cc
bb
aa
