SICK WebChecker MLG-2 User Manual

0,0
500,0
1000,0
2000,0
1500,0
1
2
0 100 200 300 400
2500,0
500 600
7
6
5
4
3

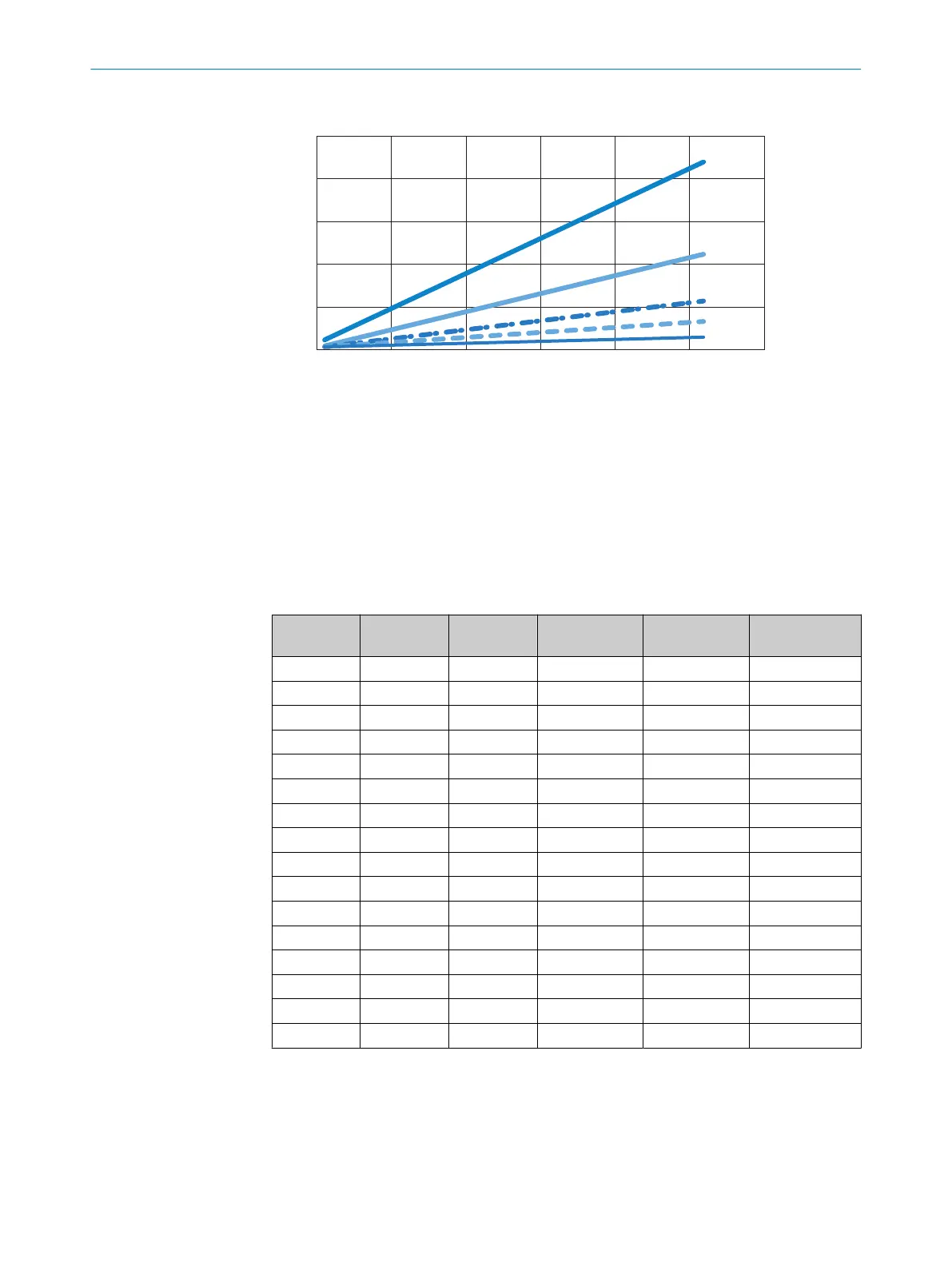

Figure 68: Minimum presence time with smoothing
1
Minimum presence time with smoothing
2
Number of beams
3
Smoothing = 4
4
Smoothing = 8
5
Smoothing = 16
6
Smoothing = 32
7
Smoothing = 64
Table 51: Minimum presence time with smoothing
Number of
beams
Smoothing
= 4
Smoothing
= 8
Smoothing =
16
Smoothing =
32
Smoothing = 64
30 8.2 ms 16.4 ms 32.8 ms 65.5 ms 131.1 ms
60 15.9 ms 31.7 ms 63.5 ms 127.0 ms 254.0 ms
90 23.6 ms 47.1 ms 94.2 ms 188.4 ms 376.8 ms
120 31.2 ms 62.5 ms 124.9 ms 249.9 ms 499.7 ms
150 38.9 ms 77.8 ms 155.6 ms 311.3 ms 622.6 ms
180 46.6 ms 93.2 ms 186.4 ms 372.7 ms 745.5 ms
210 54.3 ms 108.5 ms 217.1 ms 434.2 ms 868.4 ms
240 62.0 ms 123.9 ms 247.8 ms 495.6 ms 991.2 ms
270 69.6 ms 139.3 ms 278.5 ms 557.1 ms 1,114.1 ms
300 77.3 ms 154.6 ms 309.2 ms 618.5 ms 1,237.0 ms
330 85.0 ms 170.0 ms 340.0 ms 679.9 ms 1,359.9 ms
360 92.7 ms 185.3 ms 370.7 ms 741.4 ms 1,482.8 ms
390 100.4 ms 200.7 ms 401.4 ms 802.8 ms 1,605.6 ms
420 108.0 ms 216.1 ms 432.1 ms 864.3 ms 1,728.5 ms
450 115.7 ms 231.4 ms 462.8 ms 925.7 ms 1,851.4 ms
480 123.4 ms 246.8 ms 493.6 ms 987.1 ms 1,974.3 ms
16 TECHNICAL DATA
90
O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker 8024643/2019-09-02 | SICK
Subject to change without notice
