Example 2: Maximum width without empty modules
•
Number of measurement modules: 10
•
Number of empty modules: 0
•
Maximum object width = (10 + 0) x 150 mm – 2 x 23 mm = 1,454 mm
The minimum object width over empty modules is calculated as follows.
•
Minimum object width = number of empty modules x 150 mm + 2 x distance A
Example: Minimum object width without empty modules
•
Number of empty modules: 3
•
Minimum object width = 3 x 150 mm + 2 x 23 mm = 496 mm
4.7 Edge measurement and edge designation
You can measure the positions of up to 10 edges. The edges are labeled with E1 to E10
in SOPAS. The edges are designated according to the following figure.
rs
3
1
6
7
8
9
10
2
3
5
4
3
2
1

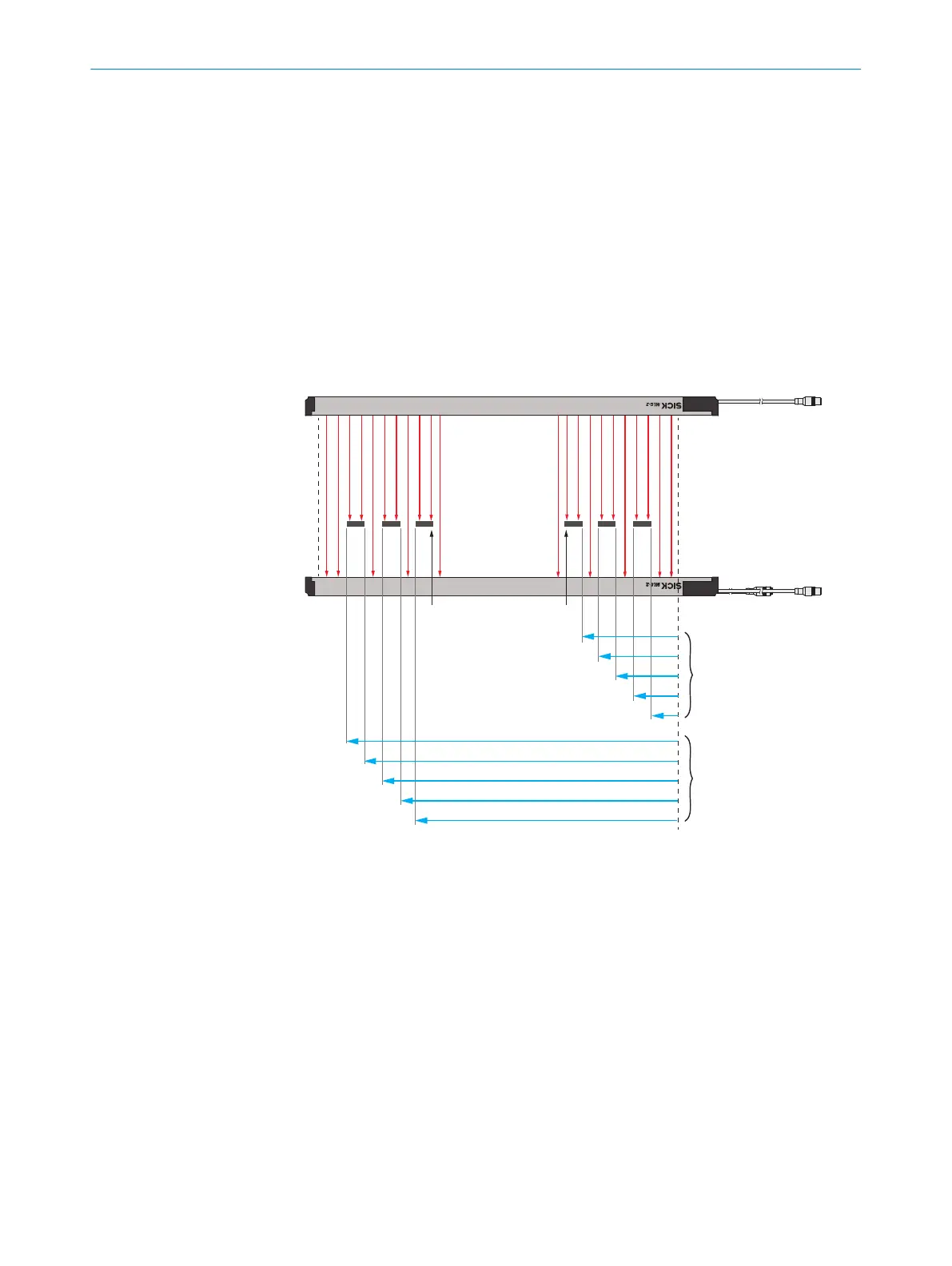

Figure 20: Edge measurement and edge designation
1
Edge designation from connection side 1 to 5
2
Edge designation from head side 10 to 6
3
Edges are not measured as 10 edges have already been measured
Observe the following points:
•
A maximum of 10 edge positions are measured.
•
If more than 10 edges are available, they are not measured. Areas can be blanked
via the “Blanking” and “Material teach-in” menu using SOPAS.
•
Edge designation begins from the connection side with "1”. Edge designation
begins from the head side with "10”.
The example shows a configuration of the MLG-2 using empty modules and more than
10 edges. In line with the specification that only 10 edges can be measured, the first 5
edges are measured in read direction in the current configuration on the connection
side and on the head side. The remaining edges are not measured.
PLANNING
4
8024643/2019-09-02 | SICK O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker
27
Subject to change without notice
