0
0,5
1,0
2,0
1,5
1
2
0 0,5 1,0 1,5 2,0
Y
X
2,5
2,5

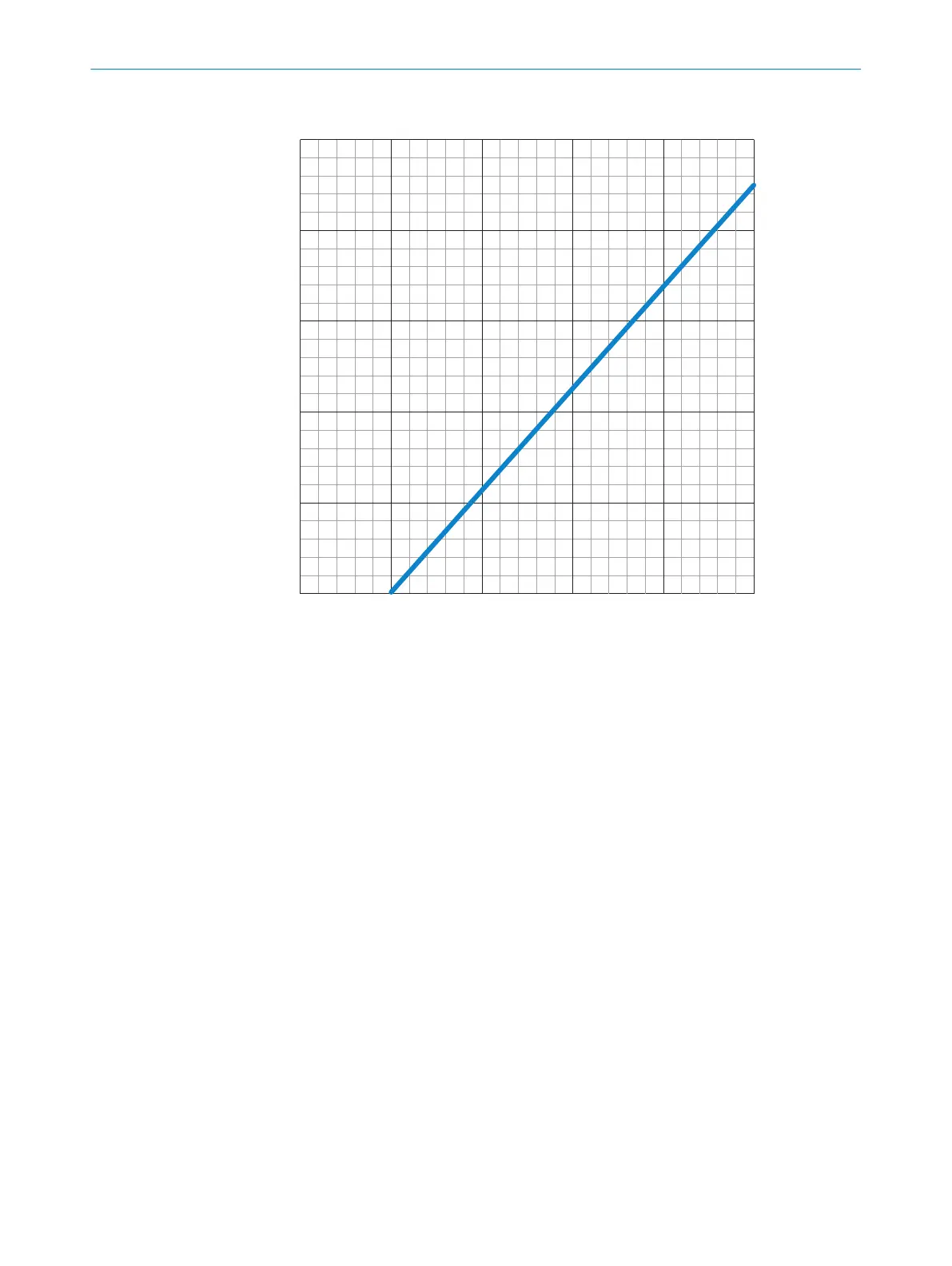

Figure 23: Diagram of distances with light in the same direction
1
Minimum distance in m
2
Sender to receiver distance in m
5.2.3 Minimum distance from reflective surfaces
Reflective surfaces near the light path between the sender and receiver may result in
disruptive reflections and beams being deflected and, hence, result in a failure to
detect objects.
In the case of reflective surfaces, a minimum distance must be maintained between
the reflective surface and the light beams to ensure reliable operation.
This minimum distance depends on the distance between sender and receiver.
5 MOUNTING
32
O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker 8024643/2019-09-02 | SICK
Subject to change without notice
