E1 E2
E3 E4
E9 E10

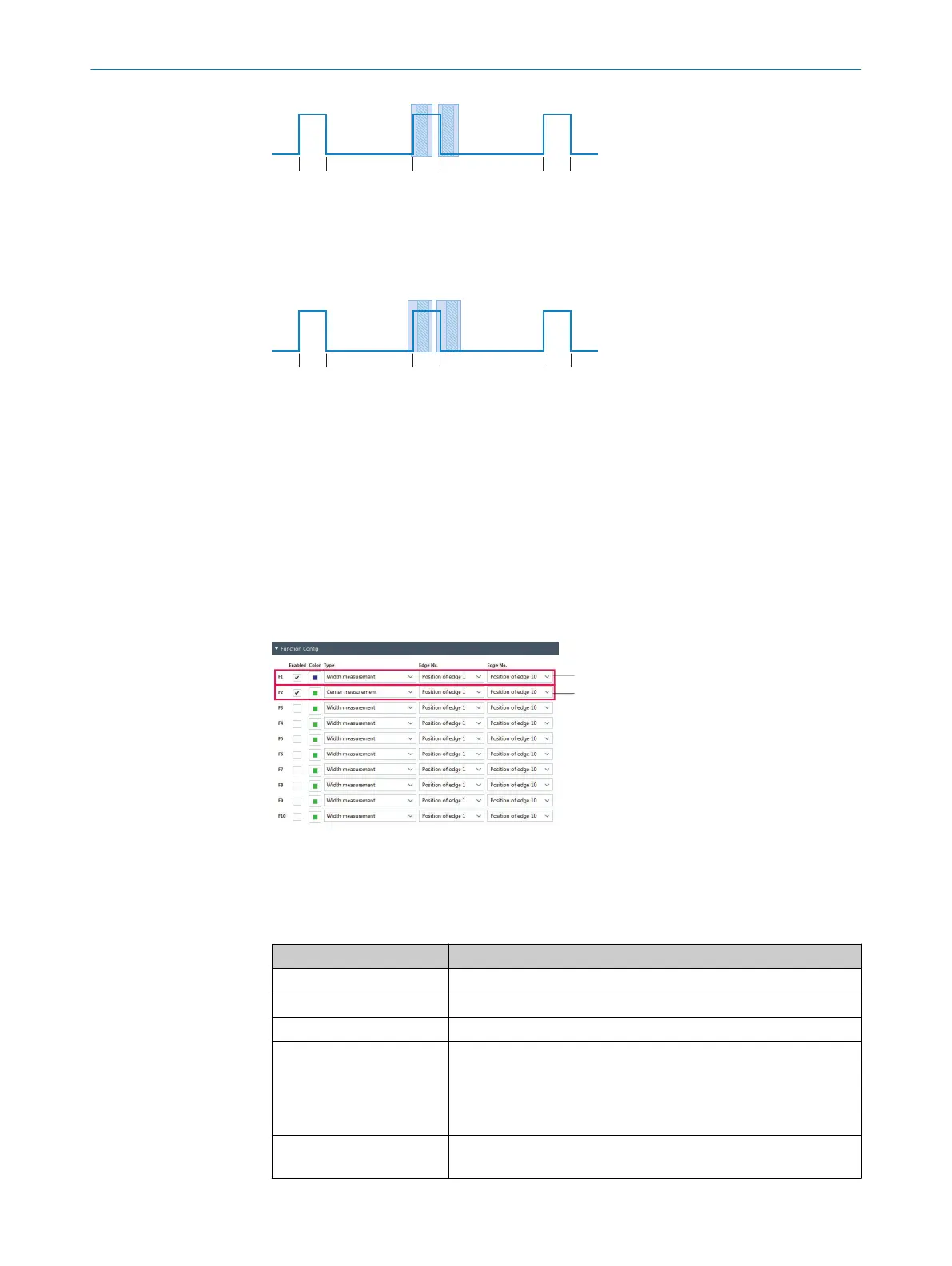

Figure 61: Edges E3 and E4 leave the window
If this is not the case, switching can never happen since edges E3 and E4 are ignored
since the search fields are exited and these as well as assigned functions are no longer
defined.
E1 E2 E9 E10
Figure 62: Ignoring edges E3 and E4 (example)
10.4.5 “Functional configuration” menu
“Functional configuration” menu
You can parameterize the functions for your application via the “Functional configura‐
tion” menu.
You can see the results of the parameterized function in the following areas in SOPAS
•
On the "Start” page in the “Applications - functions” area
•
On the “Start” page in the “Graphic display” area
•
On the “Enhanced Sensing” page in the “Details” area
•
On the “Enhanced Sensing” page in the “Graphic display” area
1
2
Figure 63: “Enhanced Sensing” page, “Functional configuration” menu
1
Example for “Width measurement” function
2
Example for “Center measurement” function
Table 30: Functional configuration
Designation Description
F1 to F10 You can parameterize up to 10 functions.
Enabled Activate or deactivate function.
Color Select color for display of the function.
Type Select function:
•
Width measurement: Calculate width between two selected
edges.
•
Center measurement: Calculate center position between two
selected edges.
Edge number Select first edge used for calculation.
Options: Edge 1 to edge 10
CONFIGURATION WITH SOPAS 10
8024643/2019-09-02 | SICK O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker
73
Subject to change without notice
