16.2 Diagrams
16.2.1 Response time
0,0
20,0
40,0
80,0
60,0
1
2
0 100 200 300 400
100,0
500 600
120,0
3
4

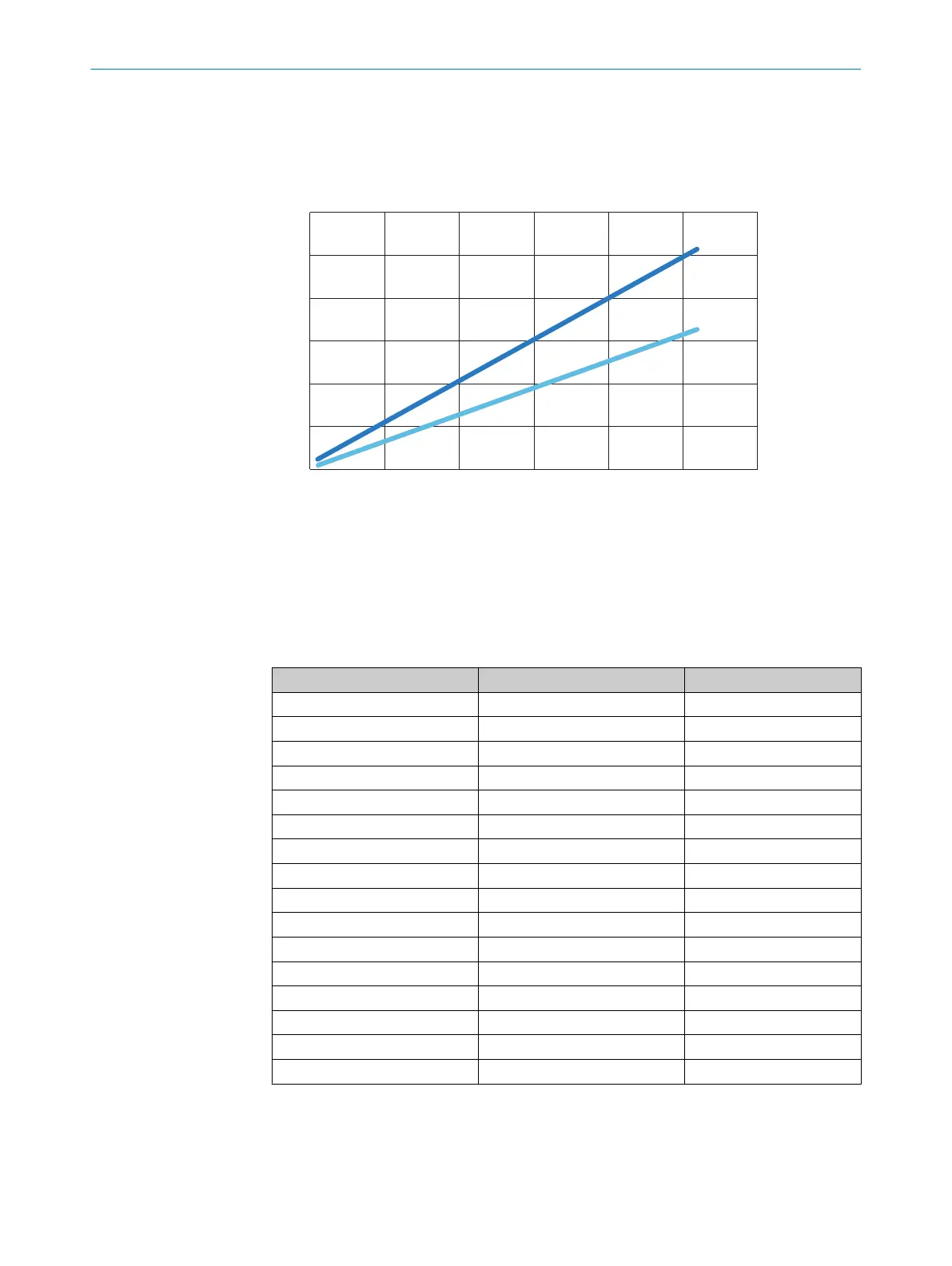

Figure 67: Response time and minimum presence time without smoothing
1
Response time and minimum presence time without smoothing
2
Number of beams
3
Response time
4
Presence time
Table 50: Response time and minimum presence time without smoothing
Number of beams Response time Presence time
30 7.1 ms 4.1 ms
60 13.1 ms 7.9 ms
90 19.0 ms 11.8 ms
120 24.9 ms 15.6 ms
150 30.8 ms 19.5 ms
180 36.7 ms 23.3 ms
210 42.6 ms 27.1 ms
240 48.5 ms 31.0 ms
270 54.4 ms 34.8 ms
300 60.3 ms 38.7 ms
330 66.2 ms 42.5 ms
360 72.2 ms 46.3 ms
390 78.1 ms 50.2 ms
420 84.0 ms 54.0 ms
450 89.9 ms 57.9 ms
480 95.8 ms 61.7 ms
TECHNICAL DATA 16
8024643/2019-09-02 | SICK O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker
