66
67
68
69
70
71
72
73
74

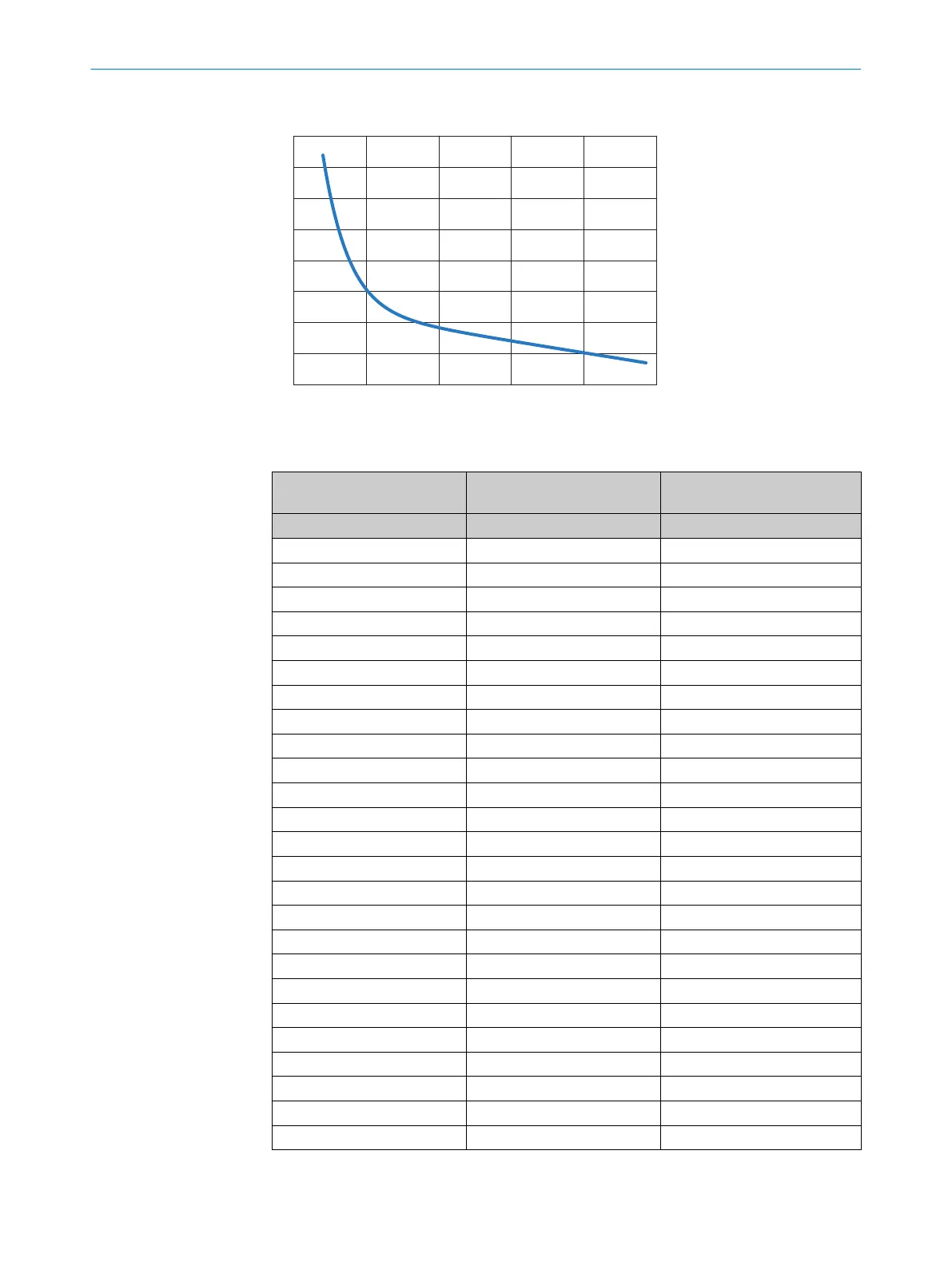

0 500 1000 1500 2000 2500
Optimaler Abstand Objekt – Sender in %
Abstand Sender – Empfänger in mm
Table 53: Optimal object position: Optimal distance between object and sender
Distance between sender and
receiver
Optimal distance between
object and sender
Optimal distance between
object and sender
[mm] [%] [mm]
200 73.4 146.8
250 72.1 180.3
300 71.1 213.3
400 69.8 279.2
500 69.1 345.5
600 68.6 411.6
700 68.3 478.1
800 68.1 544.8
900 68.0 612.0
1000 67.8 678.0
1100 67.7 744.7
1200 67.7 812.4
1300 67.7 878.8
1400 67.5 945.0
1500 67.4 1,011.0
1600 67.3 1,076.8
1700 67.3 1,144.1
1800 67.2 1,209.6
1900 67.1 1,274.9
2000 67.0 1,340.0
2100 67.0 1,407.0
2200 66.9 1,471.8
2300 66.8 1,536.4
2400 66.7 1,600.8
2500 66.6 1,667.5
16 TECHNICAL DATA
92
O P E R A T I N G I N S T R U C T I O N | MLG-2 WebChecker 8024643/2019-09-02 | SICK
Subject to change without notice
