E3G080 Control module ”Extinguishing”
150
Building Technologies 001260_k_en_--.doc
Fire Safety & Security Products 02.2005
37 E3G080 Control module ”Extinguishing”
37.1 Overview
E3G080 > Index 'CC' compatible with EP5 onwards
E3G080 > Index 'AB' compatible with EP4 onwards
E3G080 < Index 'AB' is only compatible with EP3a (further details refer to MI220)
z I-Bus module as control module for one extinguishing SECTION
z 4 monitored control lines for
– ”Sector valve”
– ”Main valve”
– ”Alarm horn”
– ”Illuminated warning panel”
z 5 Monitored detection lines for
– ”Manual activation”
– ”Stop or blocking button” (Function selectable)
– Signal contact ”Loss of extinguishing agent”
– Signal contact ”Extinguishing blocked”
– Signal contact ”Extinguishing activated”
z LON interface for separate extinguishing B3Q440 control consoles
– Enables up to 4 local B3Q440 extinguishing control consoles
– Line and equipment are monitored (not short circuit proof)
z Individual parameterization via maintenance PC (AlgoWorks)
z Downloading of user functions from AlgoWorks via control unit and storage on
E3G080 direct
z Maintenance switch for automatic calibration and line read–in function
z Integrated emergency operation function
z Selectable ground fault monitoring, detected via master module E3X10. (for ap-
plication details –> see chapter 6)
z I-Bus address is set with programming switch ”S3”
z Card format 100 mm x 200 mm
37.2 Application
– module E3G080 is required for each extinguishing SECTION
– a B3Q440 control console is required for each extinguishing SECTION (max. 4
possible)
– Application without the B3Q440 control console is possible, but not recom-
mended
– the total current per E3G080 (valve, alarm horn, illuminated warning panel etc.
active) may not exceed 4 A

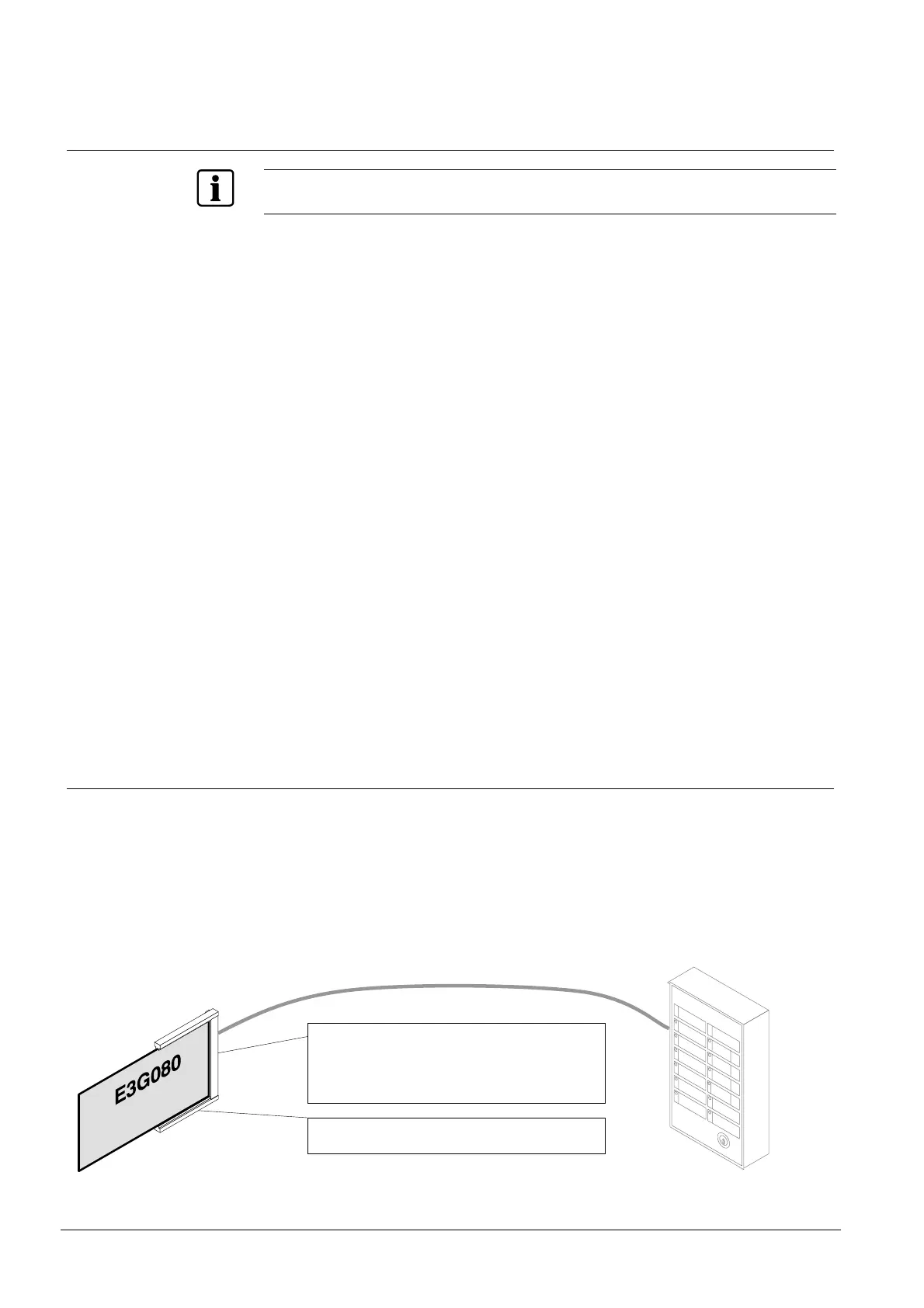

Separate extinguishing control console
B3Q440
Terminal block X10 (20 terminals)
– mounted on module chassis
– for the connection of the prefabricated cable to
connection level, or
– for direct connection of the periphery
Card chassis
– mounted on module chassis
