K3R072 Mimic Display board (supersedes K3R071)
215
Building Technologies 001260_k_en_--.doc
Fire Safety & Security Products 02.2005

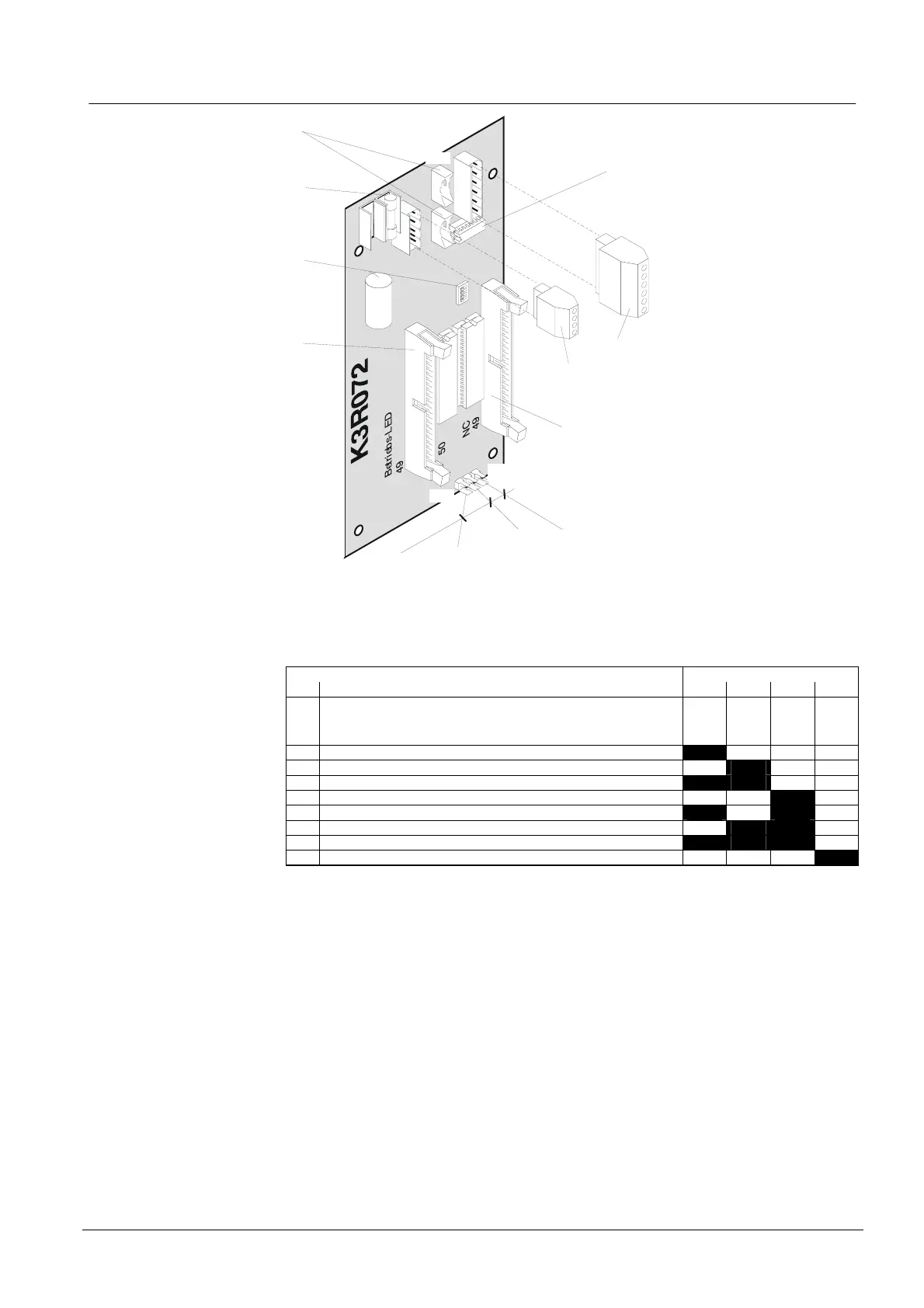

50.6 Important components
3
2
1
4
56
7
8
9
10
11
12
K2
F1
ST1
K1
ST11
S1
1
ON
ST12
X50
1
4
1
6
ST2
X55
X49
Legend:
1 Connector "ST1" / "ST2": Connection of data bus via flat cable
2 Fuse 'F1' 0.4 A/T Supply input 9...45 VDC
3 Programming switch "S1": Equipment address setting
Function Programming switch S1
No. S1-1 S1-2 S1-3 S1-4
0
Test procedure:
In this setting all outputs are activated alternating between even
and uneven numbers.
off off off off
1 Equipment address 1 on off off off
2 2 off on off off
3 3 on on off off
4 4 off off on off
5 5 on off on off
6 6 off on on off
7 7 on on on off
8 8 off off off on
"S1-1...4" are set to "off" at the factory
4 Connector "ST11" 50-pin: for 50-wire flat cable F50F410 with 24 red LEDs for
mimic display and 2 wires 49/50 for 'LED operation' or for flat cable of relay
card K3G060
5 Use Z3I520
6 Plug-in connector "X49": Output for 'Buzzer'
7 Plug-in connector "X50": Input for key 'Lamp test'
8 Plug-in connector "X55": Input for key 'Switch-off buzzer'
9 Connector "ST12" 50-pin: for 50-wire flat cable F50F410 with 24 red LEDs for
mimic display and 2 wires 49/50 unused or for flat cable of relay card K3G060
10 Plug-in terminals "K1", 4-pin: Power supply 9...45 VDC
11 Plug-in terminals "K2", 6-pin: Connection of data bus instead of flat cable
12 Resistor array (assembled ex work / must be assembled only for one device)
