Error messages
A CPU that can no longer assume the required state is indicated in color. The State cell
changes to red or yellow/orange.
● Red: Error
● Yellow/orange: Note
A single click on the corresponding cell causes an error text or information text to appear in a
roll-out tip.

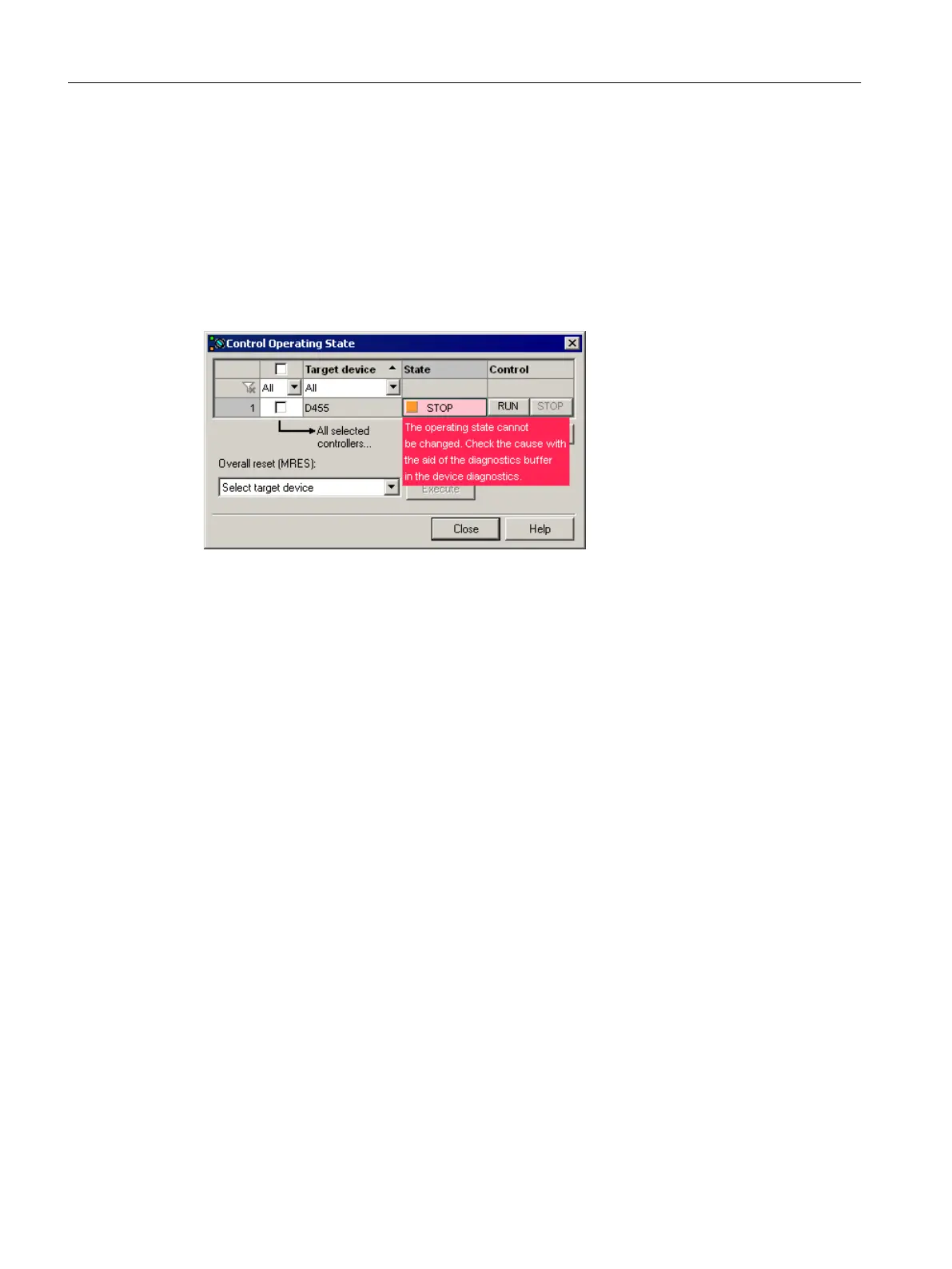

Figure 7-5 Roll-out tip with error description
Target system
7.3 Controlling the operating mode with SIMOTION SCOUT
SIMOTION SCOUT
158 Configuration Manual, 11/2016
