8. Activate the setting in Control value.
9. Click Control. The active command is highlighted in yellow in the program.

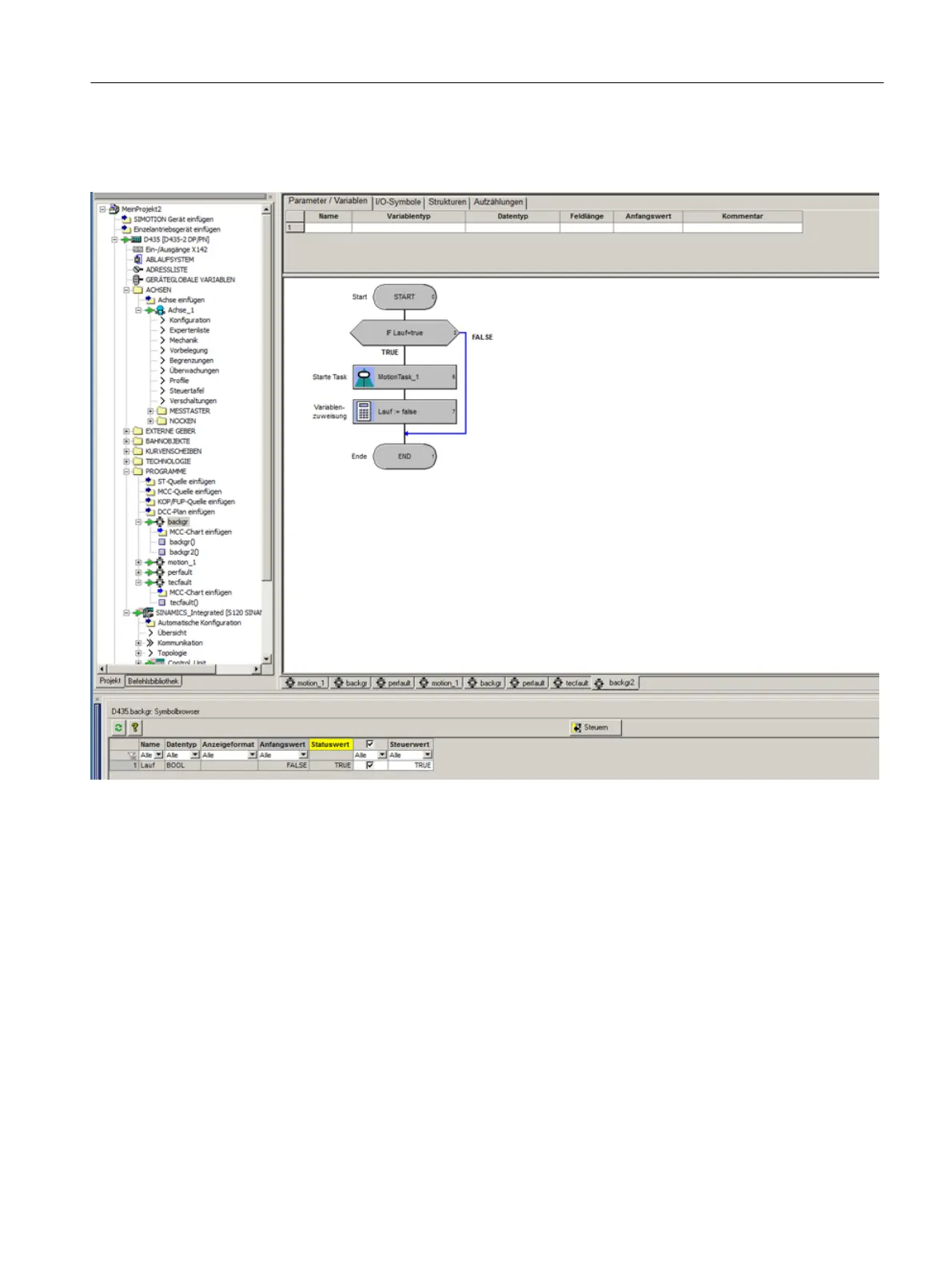

Figure A-11 Monitoring and controlling the variable in the BackgroundTask
The motor now rotates at 6000 rpm and approaches the position 2000 mm. You can check
this by selecting Axis_1 at Axes, opening basicMotion in the symbol browser, and observing
the position. The values are refreshed automatically when an online connection exists.
Appendix
A.2 Creating an example program for axis positioning in SIMOTION SCOUT
SIMOTION SCOUT
Configuration Manual, 11/2016 237
