Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
249

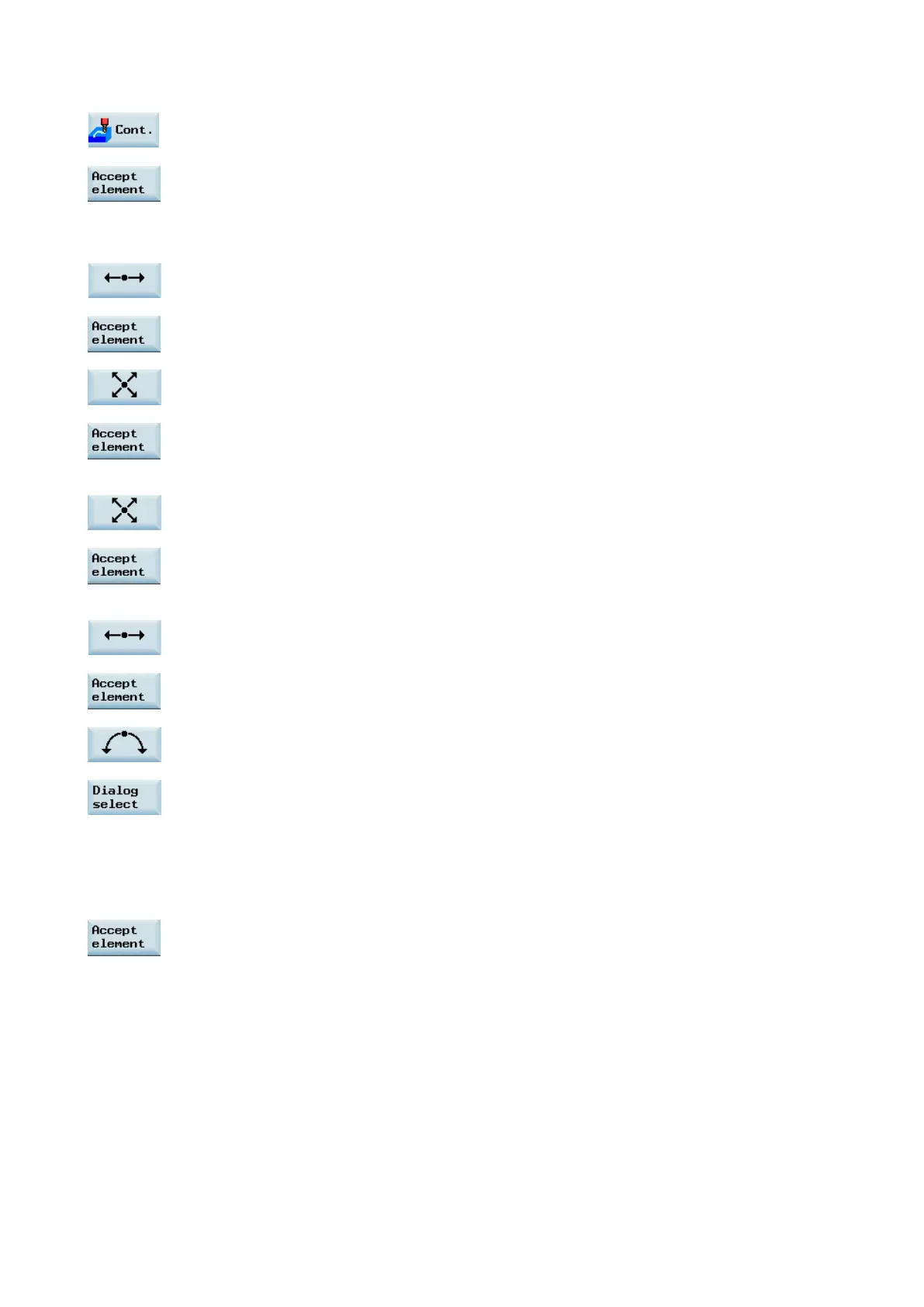

4. Press this softkey to open the contour editor.
5. Define a start point with the following parameters and press this softkey to confirm.
● Programming plane: G17
● X: 5.67 abs.
● Y: 0
6. Press this softkey to select a contour element of straight horizontal line.
7. Enter the parameters for this element and press this softkey to confirm.
● X: -93.285 abs.
8. Press this softkey to select a contour element of straight line in any direction.
9. Enter the parameters for this element and press this softkey to confirm.
● X: -43.972 inc.
● α1: -125 °
10. Press this softkey to select a contour element of straight line in any direction.
11. Enter the parameters for this element and press this softkey to confirm.
● X: 43.972 inc.
● α1: -55 °
12. Press this softkey to select a contour element of straight horizontal line.
13. Enter the parameters for this element and press this softkey to confirm.
● X: 5.67 abs.
14. Press this softkey to select a contour element of circular arc.
15. Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
● Direction of rotation: clockwise
● R: 72
● X: 5.67 abs.
● Y: 0 abs.
16. Press this softkey to confirm.
