Programming and Operating Manual (Milling)
6FC5398-4DP10-0BA1, 01/2014
255
21. Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
● α1: -158 °
● Y: -14.8 abs.
● α2: 0 °
22. Press this softkey to confirm.
23. Press this softkey to select a contour element of straight horizontal line.
24. Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
● L: 5
25. Press this softkey to confirm.
26. Press this softkey to select a contour element of straight vertical line.
27. Enter the parameters for this element and press this softkey to confirm.
● Y: 5.7 abs.
28. Press this softkey to select a contour element of straight horizontal line.
29. Enter the parameters for this element and press this softkey to confirm.
● X: 0 abs.

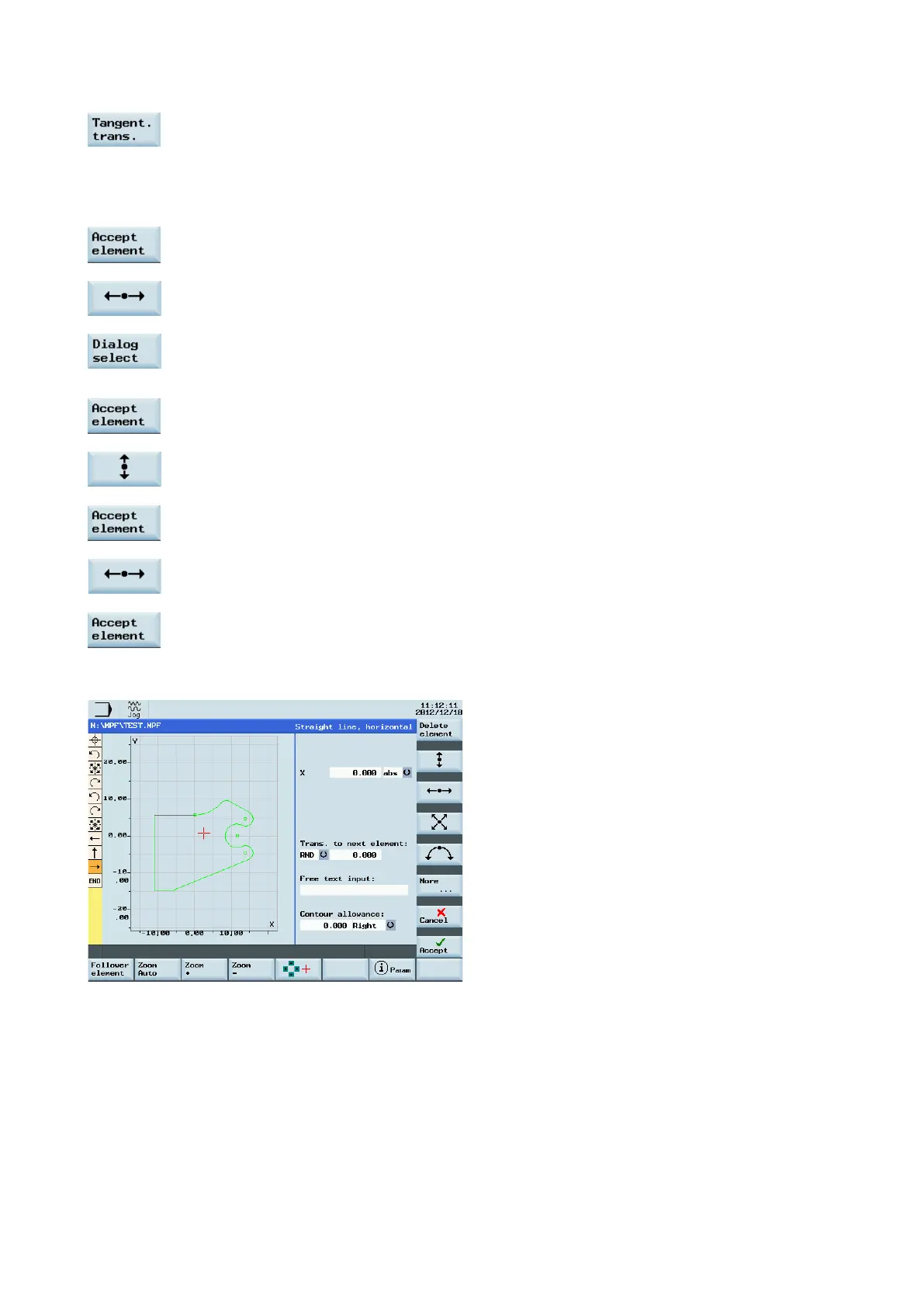

Now you can see the programmed contour in the graphics window:
