Programming and Operating Manual (Milling)
26 6FC5398-4DP10-0BA1, 01/2014
...

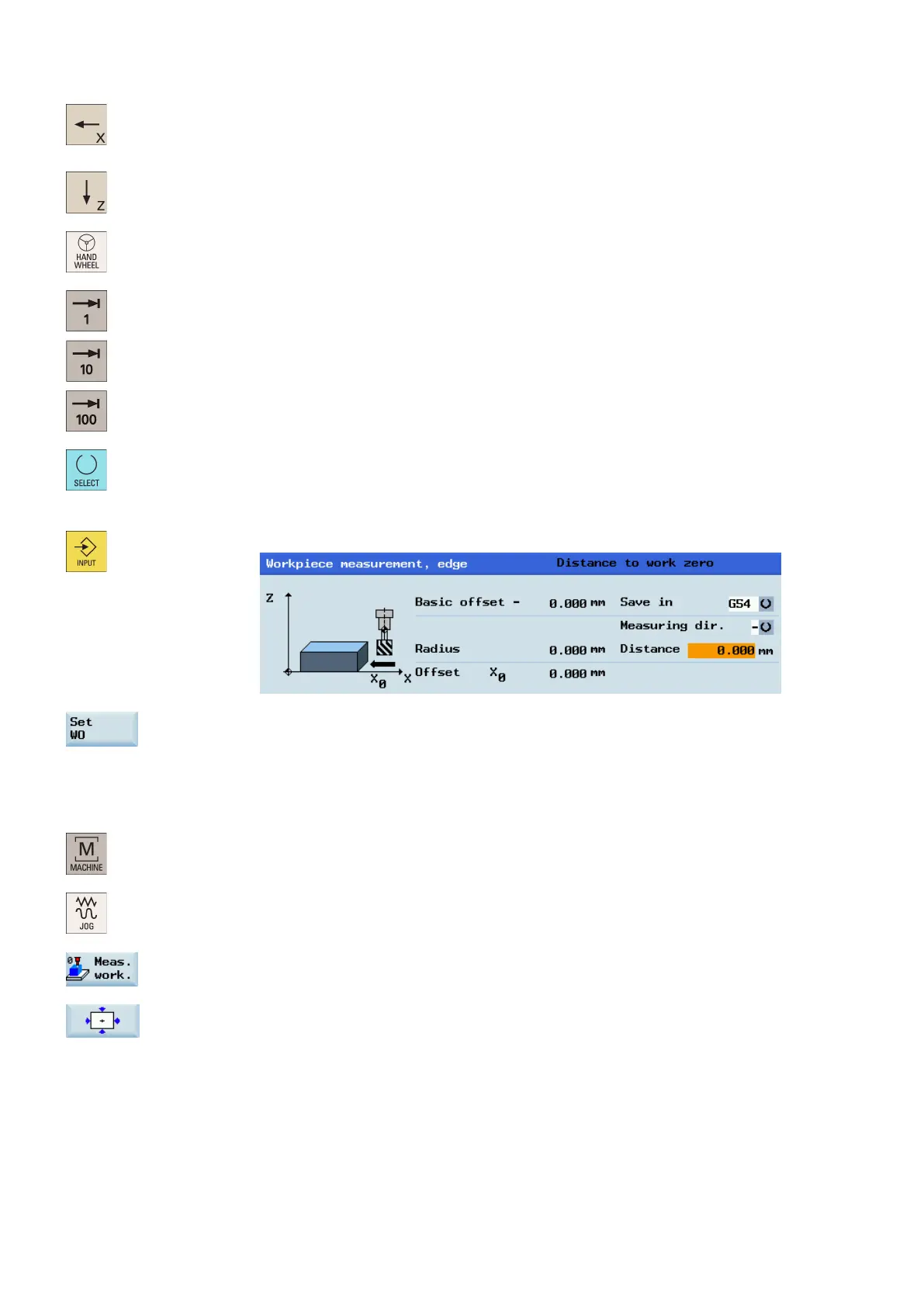

Traverse the tool, which has been measured previously, to approach the workpiece in the X
direction.
7. Switch to handwheel control mode.
8. Select a suitable override feedrate, and then use the handwheel to move the tool to scratch
the required workpiece edge.
9. Select the offset plane to save in and the measuring direction (for example, "G54" and "-").
10. Enter the distance (for example, "0").
Press this key or move the cursor to confirm your input.
12. Press this vertical softkey. The work offset of the X axis is calculated automatically and
displayed in the offset field.
13. Repeat the above operations to measure and set the work offsets in the "Y" and "Z" axes
respectively.
Rectangular workpiece measurement
1. Select the desired operating area.
2. Switch to JOG control mode.
3. Open the lower-level menu for workpiece measurement.
4. Press this vertical softkey to open the window for measurement of a rectangular workpiece.
