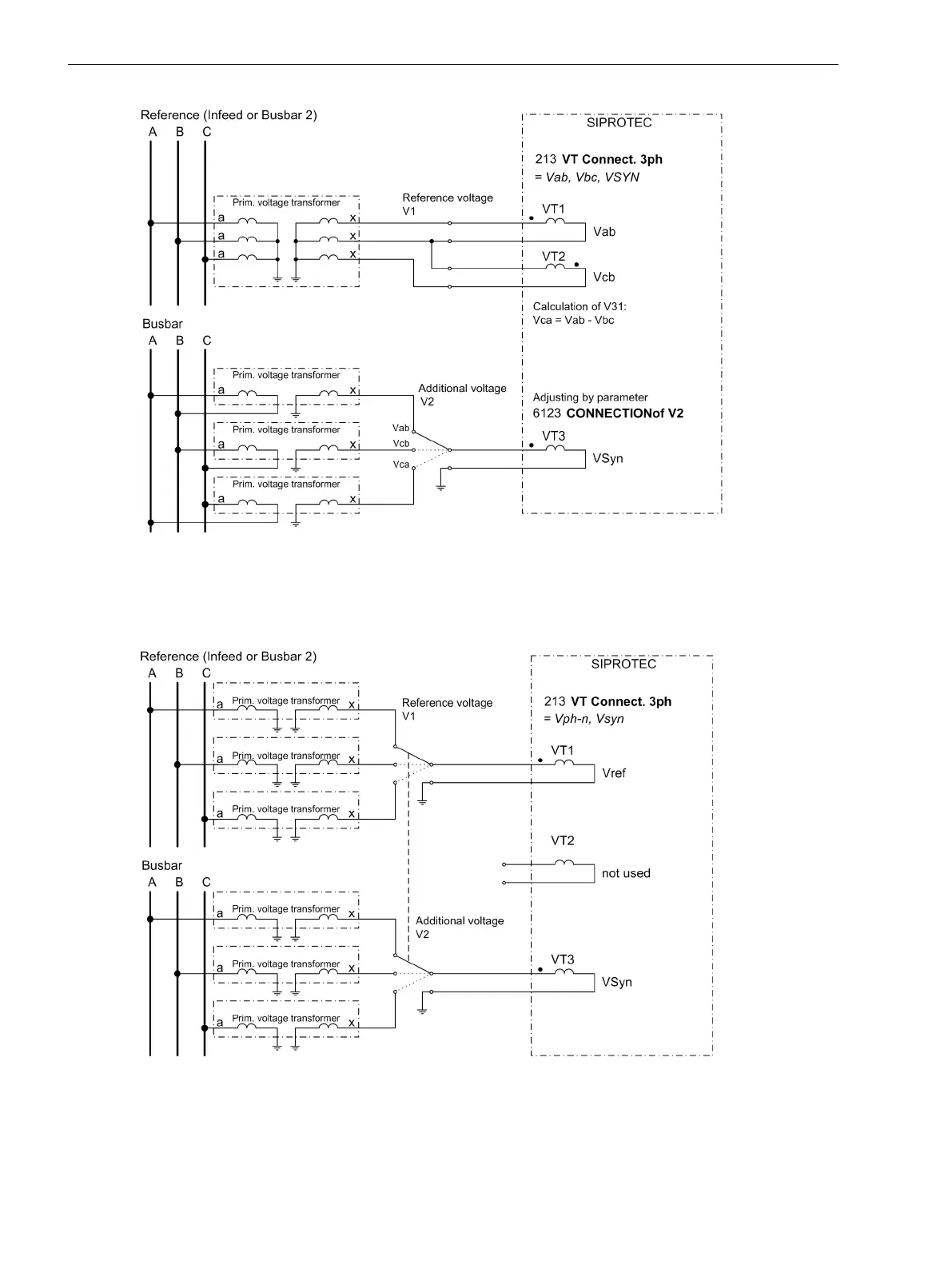

Figure 2-118
Phase-to-phase voltage connection (open-delta connection)
If only phase-to-ground voltages are available, the reference voltage V
1
is connected to the first voltage trans-
former and the additional voltage V
2
to the third voltage transformer.
[sync-1phasig-anschl-le-061116, 1, en_US]
Figure 2-119
Phase-to-ground voltage connection
Functions
2.20 Synchrocheck
