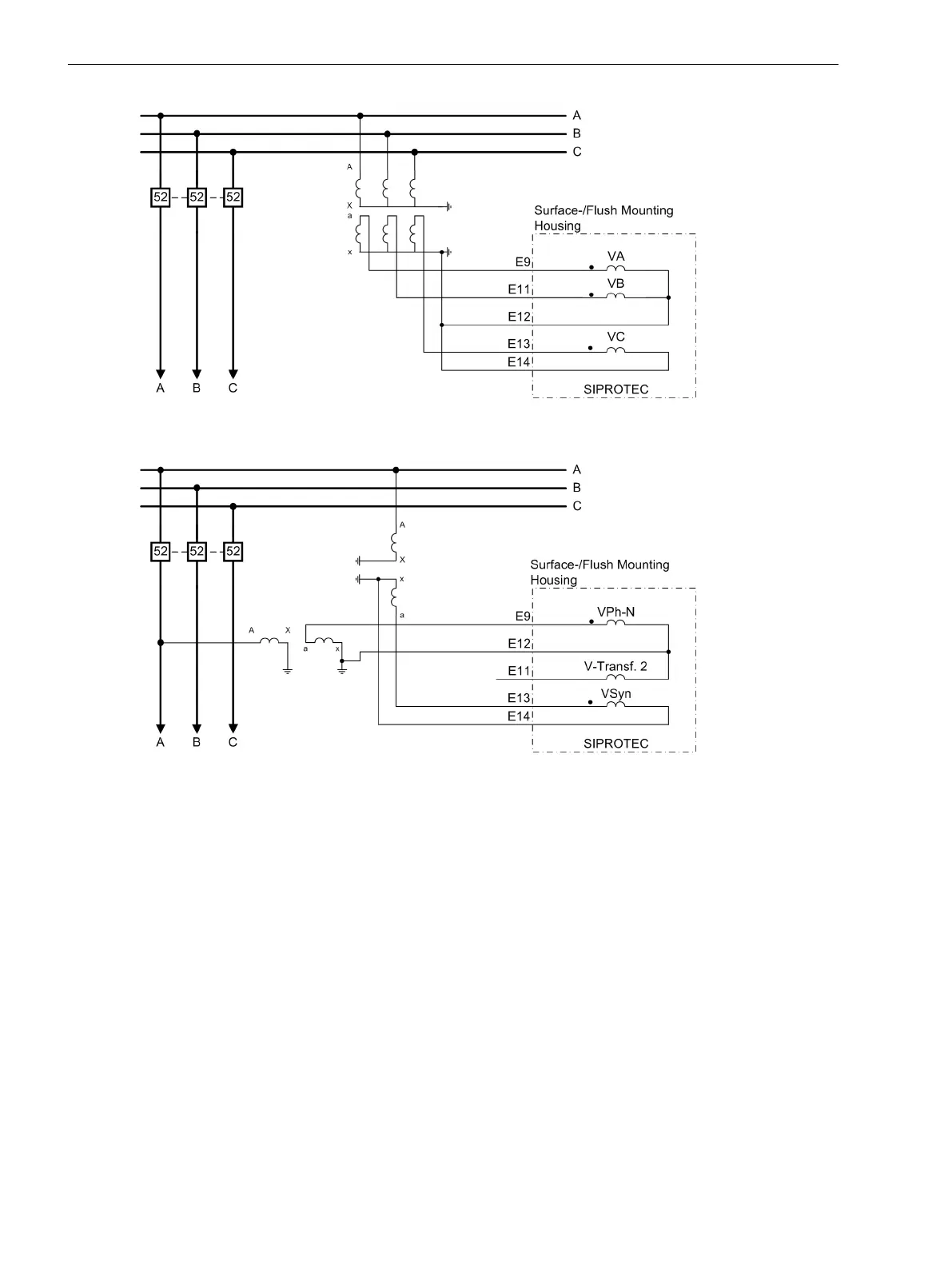

Figure C-16 Example for connection type "VAN, VBN, VCN" busbar-side voltage connection
[anschl-uph-usyn-20070129, 1, en_US]
Figure C-17 Example for connection type "Vph-n, Vsyn"
The connection can be established at any one of the three phases. The phase must be the same for Vph-n
and Vsyn.
Connection Examples
C.1 Connection Examples for Current and Voltage Transformers
