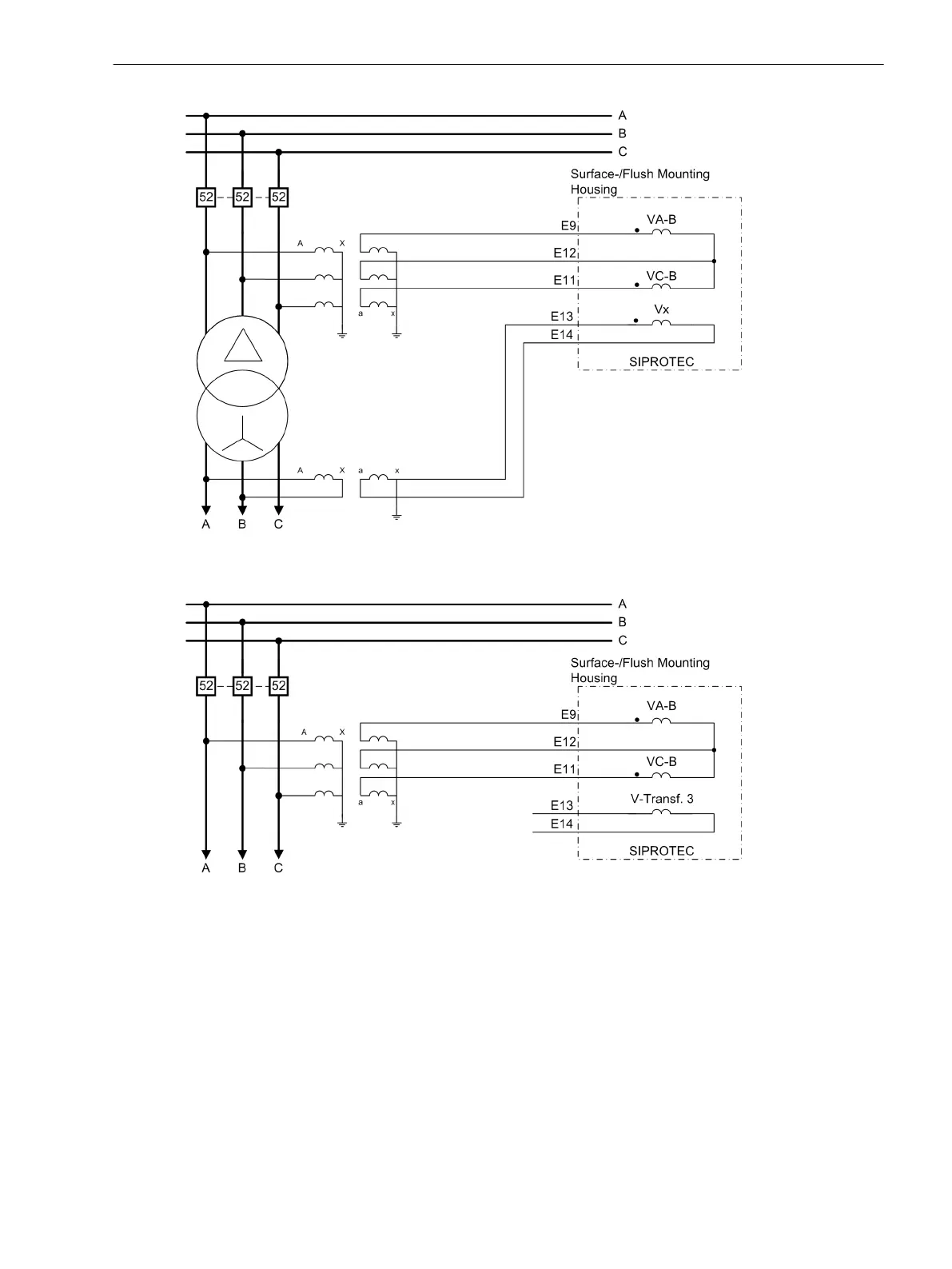

Figure C-18
Example for connection type "VAB, VBC, Vx"
[anschl-u12-u23-20070129, 1, en_US]
Figure C-19 Example for connection type "VAB, VBC"
Connection Examples
C.1 Connection Examples for Current and Voltage Transformers
SIPROTEC 4, 7SJ80, Manual 451
E50417-G1140-C343-A8, Edition 12.2017
