[anschl-u12-u23-v-schalt-20070129, 1, en_US]

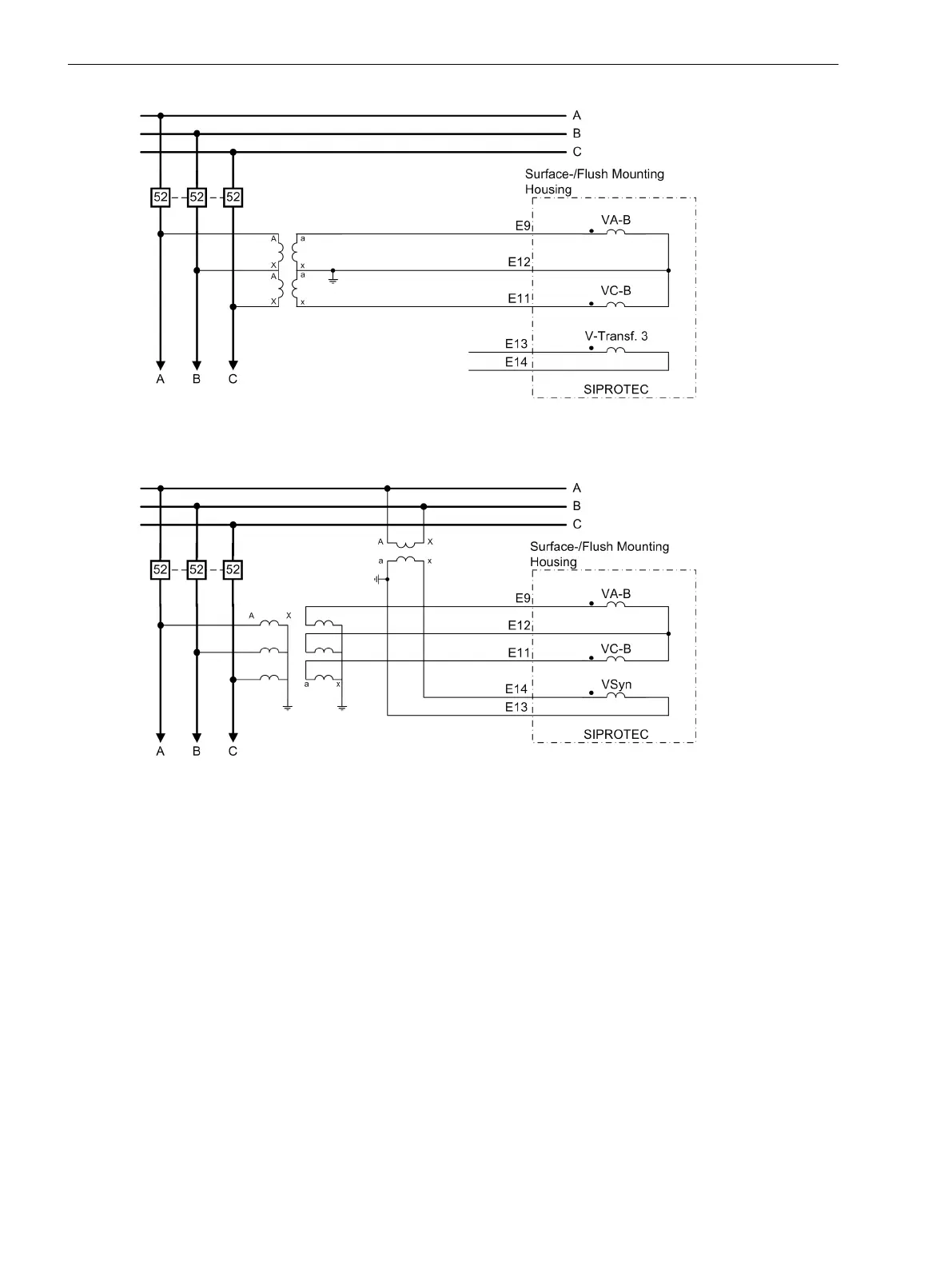

Figure C-20 Example for connection type "VAB, VBC" with phase voltage connection as open-delta connec-
tion
[anschl-u12-u23-usyn-20070129, 1, en_US]
Figure C-21 Example for connection type "VAB, VBC, VSYN"
Connection Examples
C.1 Connection Examples for Current and Voltage Transformers
452 SIPROTEC 4, 7SJ80, Manual
E50417-G1140-C343-A8, Edition 12.2017
