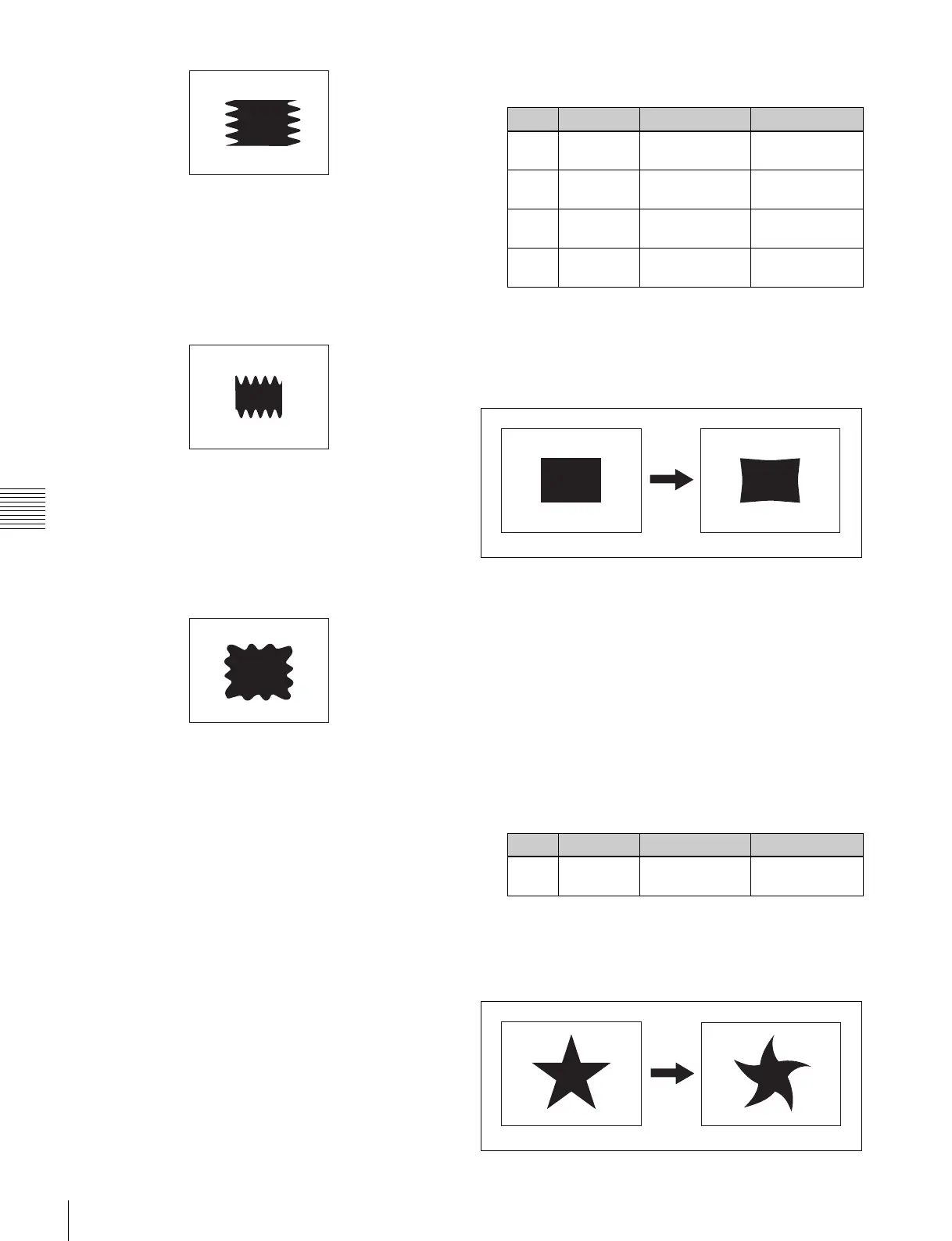

134
Basic Procedure for Wipe Settings
Chapter 5 Wipes
The parameter Speed determines the speed of waves.
A value of –100.00 generates the maximum downward
speed of waves, and a value of +100.00 the maximum
upward speed.
Vertical modulation
This modulates the pattern, applying waviness in the
vertical direction to edges.
The parameter Speed determines the speed of waves.
A value of –100.00 generates the maximum leftward speed
of waves, and a value of +100.00 the maximum rightward
speed.
Fringe
This modulates the pattern, applying waviness in the radial
direction to edges.
The parameter Speed determines the speed of waves.
A value of –100.00 generates the maximum
counterclockwise speed of waves, and a value of +100.00
the maximum clockwise speed.
You can apply modulation independently to the main
pattern and sub pattern.
1
In the M/E-1 >Wipe menu, select HF5 ‘Main Modify.’
The Main Modify menu appears.
2
Depending on the desired effect, in the <Modulation>
group select one of the following.
H (Horizontal modulation): Modulate the pattern,
applying waviness in the horizontal direction to
edges.
V (Vertical modulation): Modulate the pattern,
applying waviness in the vertical direction to
edges.
Fringe (Radial modulation): Modulate the pattern,
applying waviness in the radial direction to edges.
3
Set the following parameters.
Applying barrel or pincushion distortion to
the edge of the wipe pattern (Spring)
As the transition progresses, the edge of the pattern is
subjected to barrel or pincushion distortion.
A negative parameter value produces pincushion
distortion, and a positive value produces barrel distortion.
You can set the spring function independently for the main
and sub patterns.
1
In the M/E-1 >Wipe menu, select HF5 ‘Main Modify.’
The Main Modify menu appears.
2
Press [Spring], turning it on.
3
Set the following parameters.
Applying a spiral effect to the wipe pattern
(Spiral)
This deforms the pattern spirally.
Knob Parameter Adjustment Setting values
1 Amplitude Amplitude of
modulation
0.00 to 100.00
2 Frequency Frequency of
modulation
0.00 to 100.00
3 Speed Speed of waves –100.00 to
+100.00
4 Shape Form of the
modulation
1 to 3
Knob Parameter Adjustment Setting values
1 Gain Degree of barrel
distortion
–100.00 to
+100.00
Spring Off
Spring On
Spiral Off
Spiral On
