Sony MVS-7000X - Page 227

227
DME

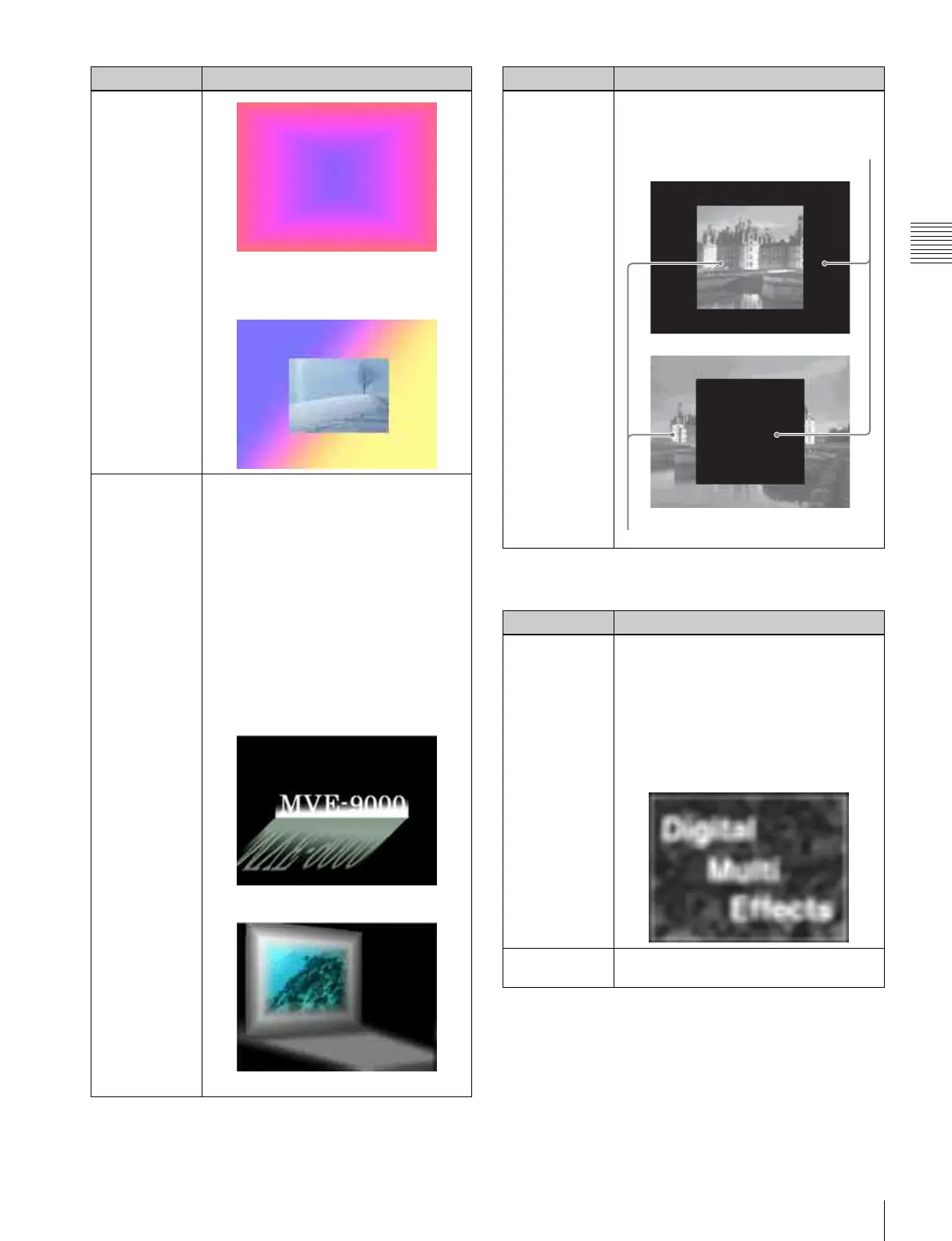

Chapter 11 DME Operations
Effects for entire image
Art Edge
(See page 243.)
Flex Shadow
(See page 247.)
Allows a shadow to be added to the image
using only one DME channel.
The following settings can be made for the
shadow.
• The signal to use for the shadow
- External: Generate shadow using
input key signal.
- Internal: Generate shadow using an
internally generated, full-size DME
key signal.
• Shadow shrinking and magnification
• Shadow position
• Shadow color and density
• Center axis of deformation
• Shadow slant and perspective
Name Effect/Image
Radial Rainbow
Examples of Art Edge source
[Rainbow Matte]
Flex Shadow Source = External
Flex Shadow Source = Internal
Wipe Crop
(See page 251.)
Crops the video image to be visible inside
or outside a wipe pattern.
Name Effect/Image
Defocus
(See page 254.)
Defocuses the whole image. The degree
of defocusing can be set simultaneously
or separately for video and key signals.
(However, when the DME dedicated
interface is used, the degree of
defocusing can be set for video signals
only.) You can also cancel the black level
leaking that occurs at the edge of the
screen when the Defocus effect is used.
Blur
(See page 255.)
Applies a rounded blurring to the whole
image.
Name Effect/Image
Background
Video image
When Invert is On
