Names and Functions of Parts of the Control Panel
Chapter 2 Menus and Control Panel
a Next transition selection buttons
Press these buttons, turning them on, to determine what the
next transition will apply to.
b Transition type selection buttons
Press one of these buttons, turning it on, to determine the
type of the next transition (see page 68).
For the method of assigning transition types, see
“Transition Control Block Button Assignments” in
Chapter 19 (Volume 2).
When multi-program mode is selected in the Setup menu,
two or more of the following buttons may light.
For details of multi-program mode, see “Setting
Transition Control Block Button Assignments” in Chapter
19 (Volume 2).
You can also assign a function to these buttons to select
whether or not the fader levers are used as keyframe
faders.

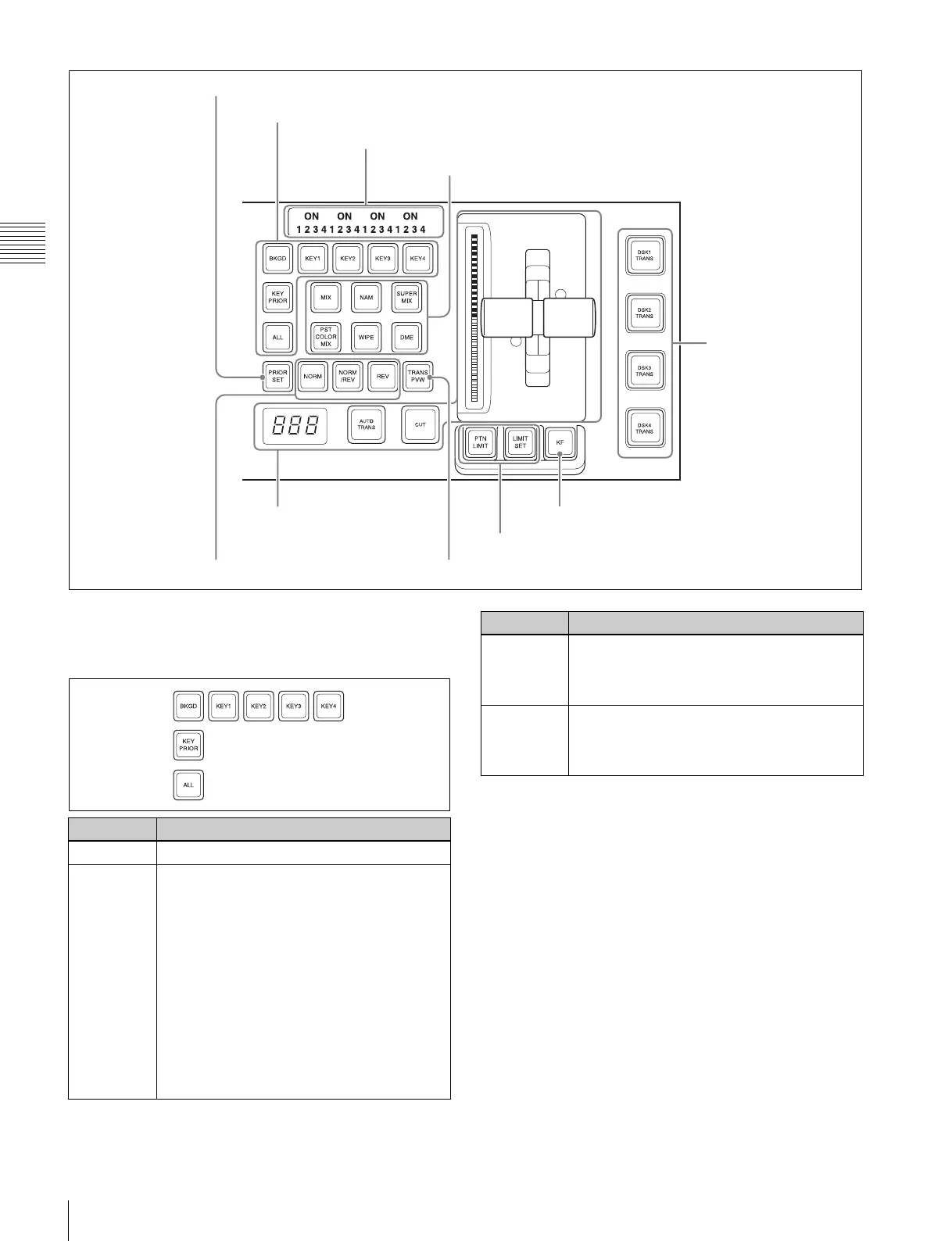

9 PRIOR SET button
1 Next transition selection buttons
8 Key status display
2 Transition type selection buttons
7 KF button
6 Pattern limit buttons
5 TRANS PVW button
3 Transition execution section
4 Wipe direction selection buttons
0 Independent key/
downstream key
transition execution
section
Name Description
BKGD Next transition changes the background.
KEY1 to
KEY8
(DSK1 to
DSK8 in the
PGM/PST
bank)
• Press this button, turning it on, to make the
next transition insert or remove the
corresponding key (keys 1 to 8).
• If a key is currently inserted it will be
removed, and vice versa.
• In the PGM/PST bank, this inserts or
removes downstream keys 1 to 8.
For details of assignment and selection of
keys 5 to 8, see the following sections in
Appendix: “Assigning Buttons for Selection of
Keys 5 to 8 in the Setup Menu” (page 345)
and “Selecting Keys 5 to 8 for Next Transition”
(page 346).
KEY PRIOR
(priority)
When this button is lit, the setting of the key
priority after the next transition is enabled.
The key priority after the next transition
appears in the key status display.
ALL Pressing this button turns on a preselected
set of the [BKGD], [KEY1] to [KEY8], and
[KEY PRIOR] buttons. Make this setting in a
Setup menu.
