Signal Output Settings (Output Menu)
Chapter 20 Switcher Setup (Switcher)

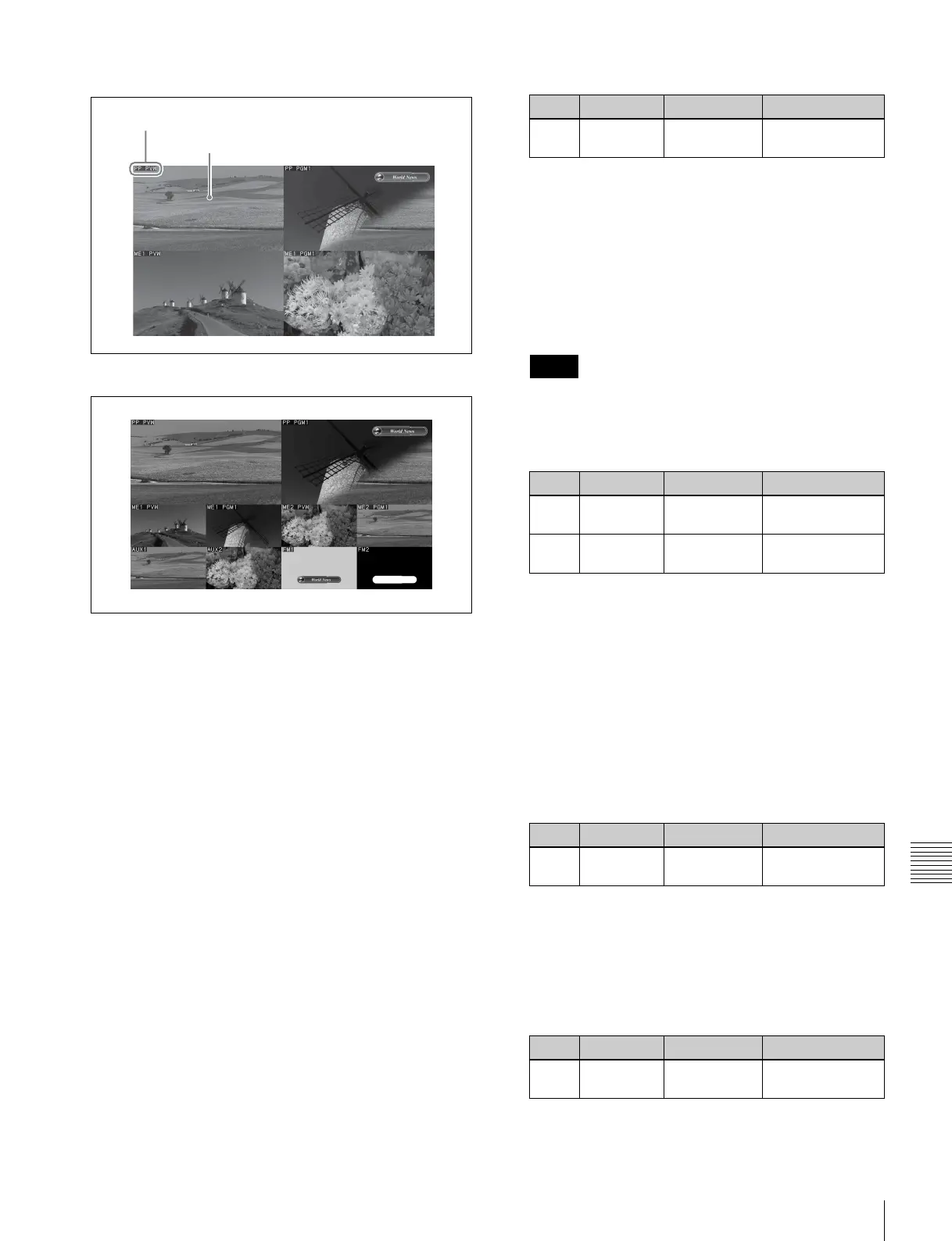

Example of 4-split screen:
Example of 10-split screen:
In the following description, a split window is referred to
as a “sub-screen.”
1 In the Switcher >Output menu, press [Multi Viewer].
The Multi Viewer menu appears.
2 In the <Multi Viewer> group, press [1] or [2] to select
the setting target.
The status area shows a list of outputs assigned to the
sub-screens.
In the <Split Mode> group, select the number of split
windows.
Split 4: Split the screen into 4 windows.
Split 10: Split the screen into 10 windows.
3 To border the sub-screens, press [Border Enable] to
turn it on.
To specify whether to show or hide the sub-
screen names
1 In the Multi Viewer menu, use any of the following
methods to select the target sub-screens.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob.
2 Press [Name Enable] to select either of the following.
Enable: Show the subs-screen name.
Disable: Hide the sub-screen name.
To make the setting for all of 10 sub-screens in a single
operation, turn [All Name Enable] on or off.
3 To set the name display position, adjust the following
parameters.
If you change any of the following parameter values,
the name display position will change on all sub-
screens. You cannot adjust the name display position
for each sub-screen.
To assign outputs to the sub-screens
1 In the Multi Viewer menu, press [Output Assign].
The Output Assign menu appears.
2 Use any of the following methods to select the target
sub-screens in the list on the left.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob.
3 Use any of the following methods to select the target
outputs in the list on the left.
• Press directly on the list in the status area.
• Press the arrow keys to scroll the reverse video
cursor.
• Turn the knob.
4 Press [Set].
Sub-screen
Sub-screen name
Knob Parameter Adjustment Setting values
1 Window No Sub-screen
selection
1 to 10
Notes
Knob Parameter Adjustment Setting values
2 Name
Position H
Horizontal
position
0 to 100
3 Name
Position V
Vertical
position
0 to 100
Knob Parameter Adjustment Setting values
1 Window No Sub-screen
selection
1 to 10
Knob Parameter Adjustment Setting values
2 Output No Output
selection
1 to 10
