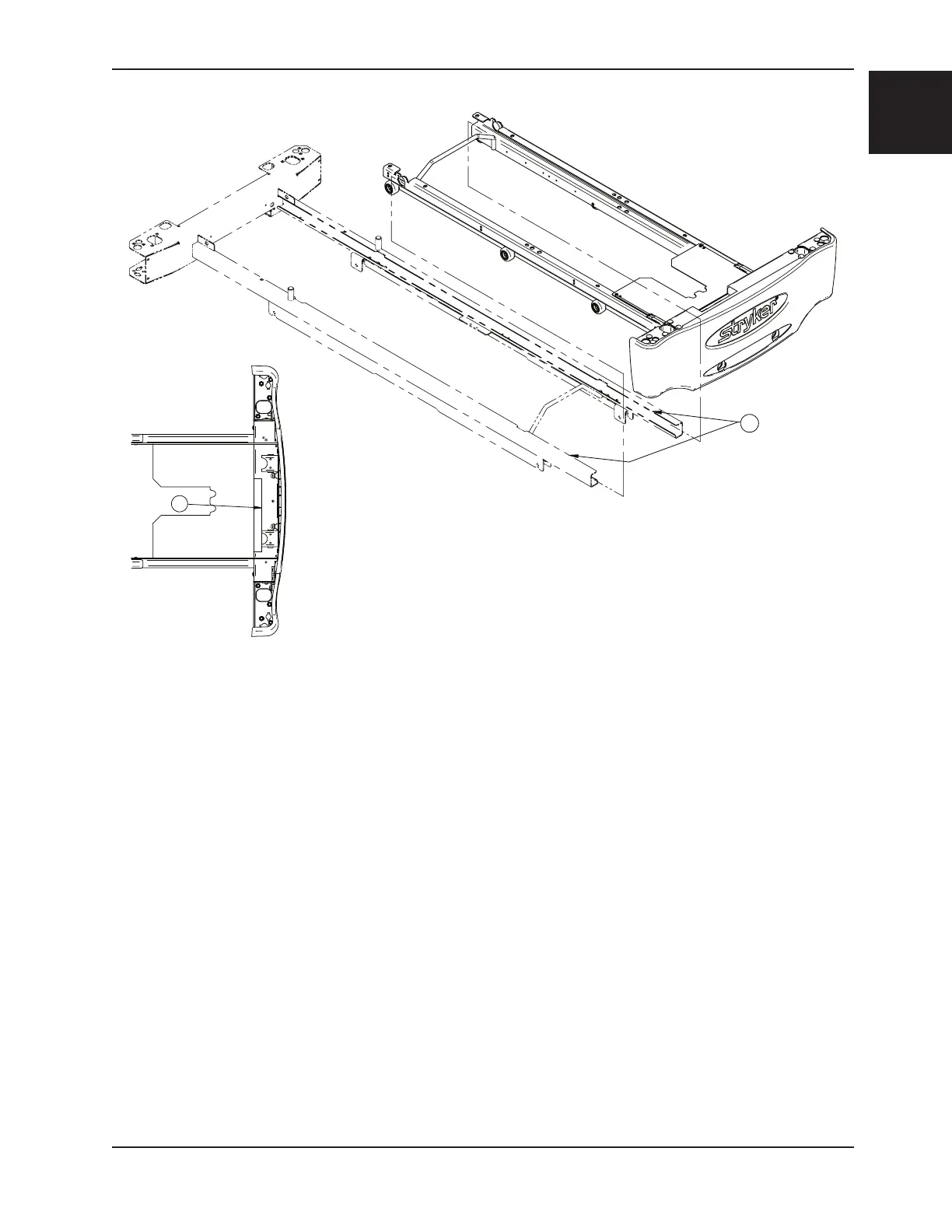

Moving Frame Assembly - L28-005 Rev M (Reference Only)
Item Part No. Part Name Qty.
1 28-0420P Frame Cover Plate 1
2 28-0107P Mobile Frame 1
3 28-0220P Foot End Casing Cover 1
4 28-0272Z Anchor Plate 2
5 AAL28-0134 Head/Foot Board Extrusions 2
6 AAL28-0144 Accessory Extrusion 2
7 M0019 Petro Canada OG2 Grease 1
8 QDF7881 Outer Retaining Ring 6
10 QP23-0257 Mattress Support Glide 2
11 QP28-0111 Foot End Molded Section 1
12 QPN14-0705 Roller 6
13 QPPF1514-1 White Plastic Cap 2
14 QDF1515 Plastic Washer 2
15 VB35A1O72-13 Carriage Bolt 8
16 VE30A1O Nylon Locknut 8
18 VV33A1N16 Pan Head Machine Screw 4
19 VV37A1N57 Truss Head Machine Screw 2
20 VV83A9G16 Pan Head Tapping Screw 14
21 QDF132X Weather Strip Tape 1
22 QDF233X Cushion Tape 1
Moving Frame Assembly
Bottom View
