Chapter 5 Maintaining the Workstation 5-47
4. Pull up the lever on the right side of the heatsink/fan assembly to loosen the
metal latch from the hook on the retaining bracket (see
FIGURE 5-31).

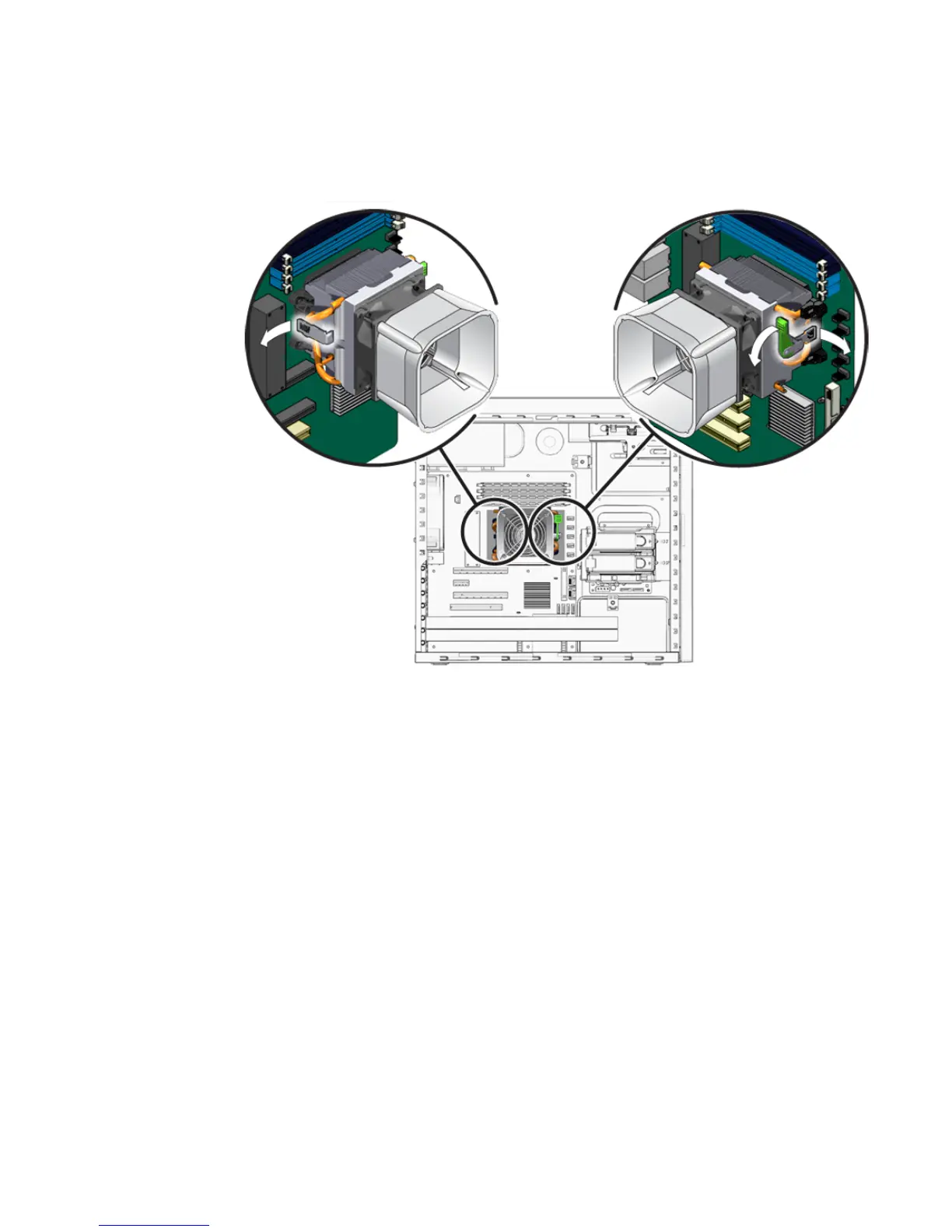

FIGURE 5-31 Unlatching the Heatsink/Fan Assembly
5. Push down the metal latch on the left side of the assembly to loosen the latch
from the hook on the retaining bracket (see
FIGURE 5-31).
6. Twist the heatsink/fan assembly to the right or the left, in order to break the seal
with the thermal grease.
