Chapter 1 Sun Ultra 20 M2 Workstation Hardware Features 1-5

FIGURE 1-4 shows the cable connections on the motherboard. TABLE 1-4 lists the

components called out in the figure.

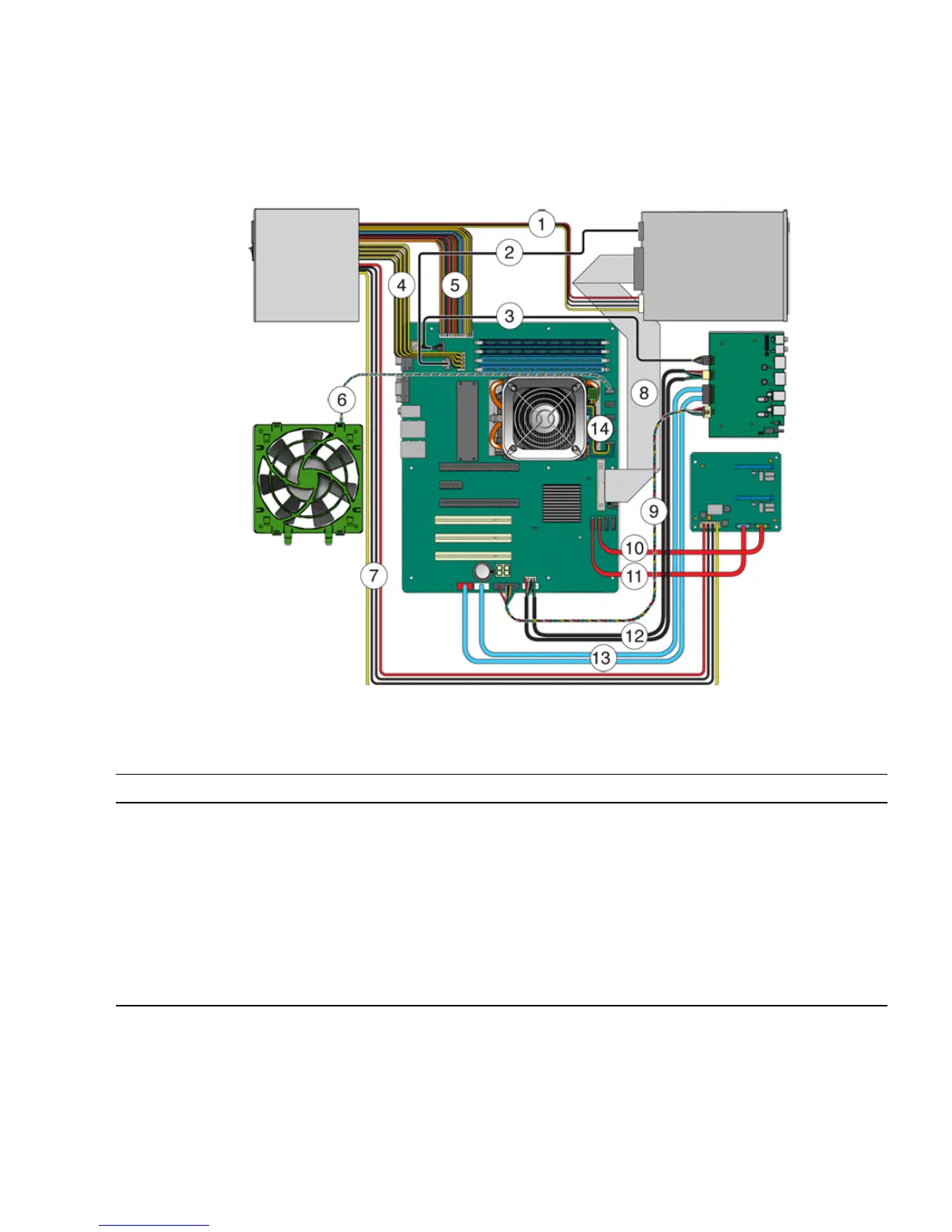

FIGURE 1-4 Power Supply and Component Cable Connections to Motherboard

TABLE 1-4 Power Supply and Component Cable Connections to Motherboard

Label Cable Connection Label Cable Connection

1 Power supply 3 to DVD drive 8 DVD drive to motherboard IDE

2 DVD drive analog to motherboard J8 9 I/O board J5 to motherboard USB 3

3 I/O board J1 to motherboard J7 10 Storage backplane HDD2 to motherboard SATA 2

4 Power supply P2 to motherboard PWR2 11 Storage backplane HDD1 to motherboard SATA 1

5 Power supply P1 to motherboard PWR1 12 I/O board J12 to motherboard FPB

6 System fan to motherboard SYS_FAN 13 I/O board J8 to motherboard 1394-1 and 1394-2

7 Power supply P4 to storage backplane J3 14 CPU fan to motherboard CPU_FAN
