Chapter 1 Sun Ultra 20 M2 Workstation Hardware Features 1-3
1.2 Back Panel
FIGURE 1-2 depicts the back panel of the Sun Ultra 20 M2 Workstation. TABLE 1-2 lists
the components called out in the figure.

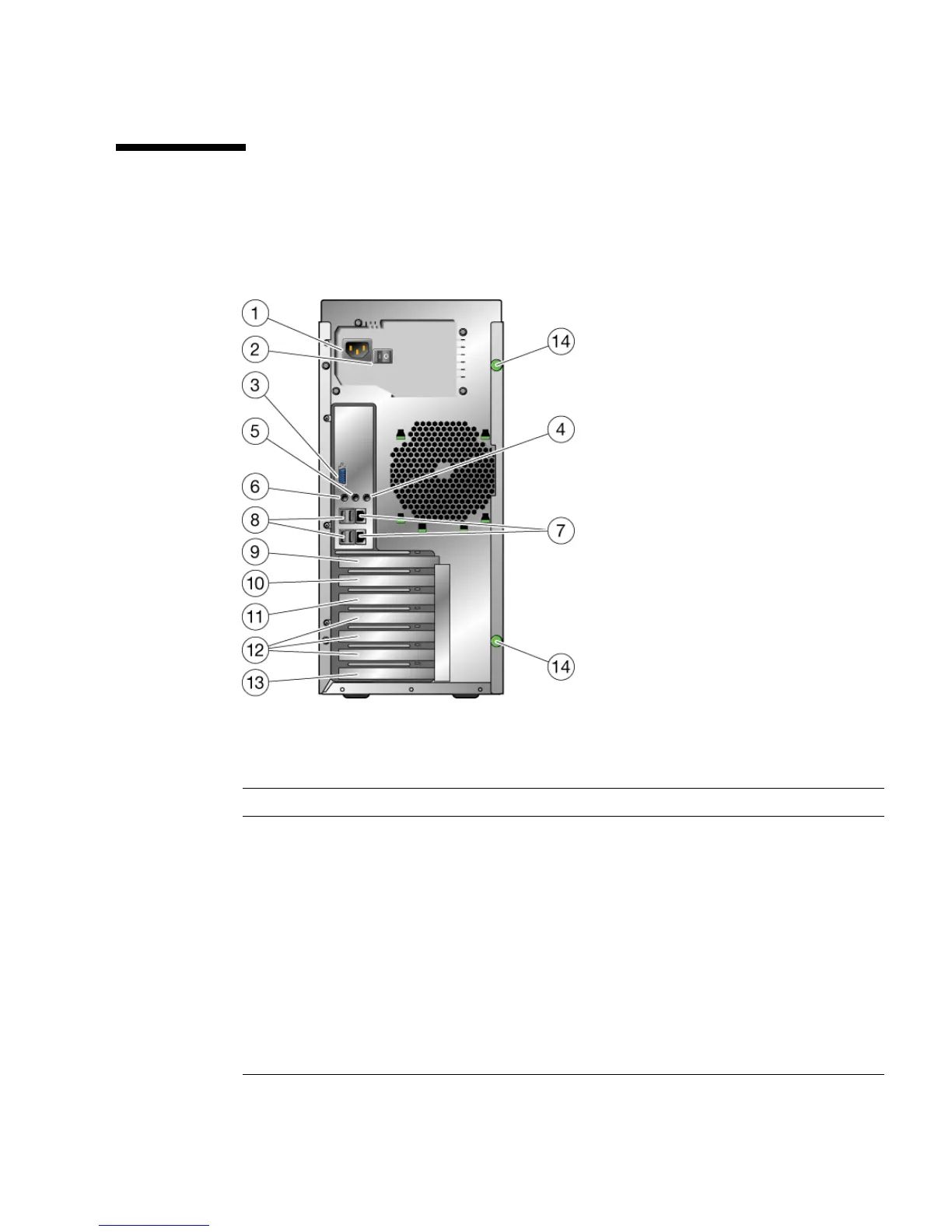

FIGURE 1-2 Back Panel Components
TABLE 1-2 Back Panel Components
Label Connector/Slot Label Connector/Slot
1 Power connector 8 Four USB 2.0 connectors
2 Power switch 9 PCI Express x16 graphics slot
3 Onboard DB15 VGA graphics
connector (for ES 1000 graphics
controller)
10 PCI Express x1 slot
4 Line-in jack 11 PCI Express x16 mechanical slot
(x8 electrical)
5 Line-out jack 12 Three PCI 33-MHz 32-bit slots
6 Microphone jack 13 Cover plate, no slot
7 Two Ethernet connectors
