Chapter 5 Maintaining the Workstation 5-15
5.6 Replacing the Storage Backplane
This section describes how to remove and install the storage backplane. For a
definition of terms used in this section, see Section 5.4, “Removing or Adding a Hard
Disk Drive” on page 5-8.
5.6.1 Removing the Storage Backplane
Perform this procedure to remove the storage backplane.
1. Follow the instructions in Section 5.2.2, “Powering Off the System and Removing
the Left Side Access Panel” on page 5-3
.
2. Gently lay the system on its right side on a stable, nonslip surface.
3. Locate the HDD assembly (see
FIGURE 5-8).

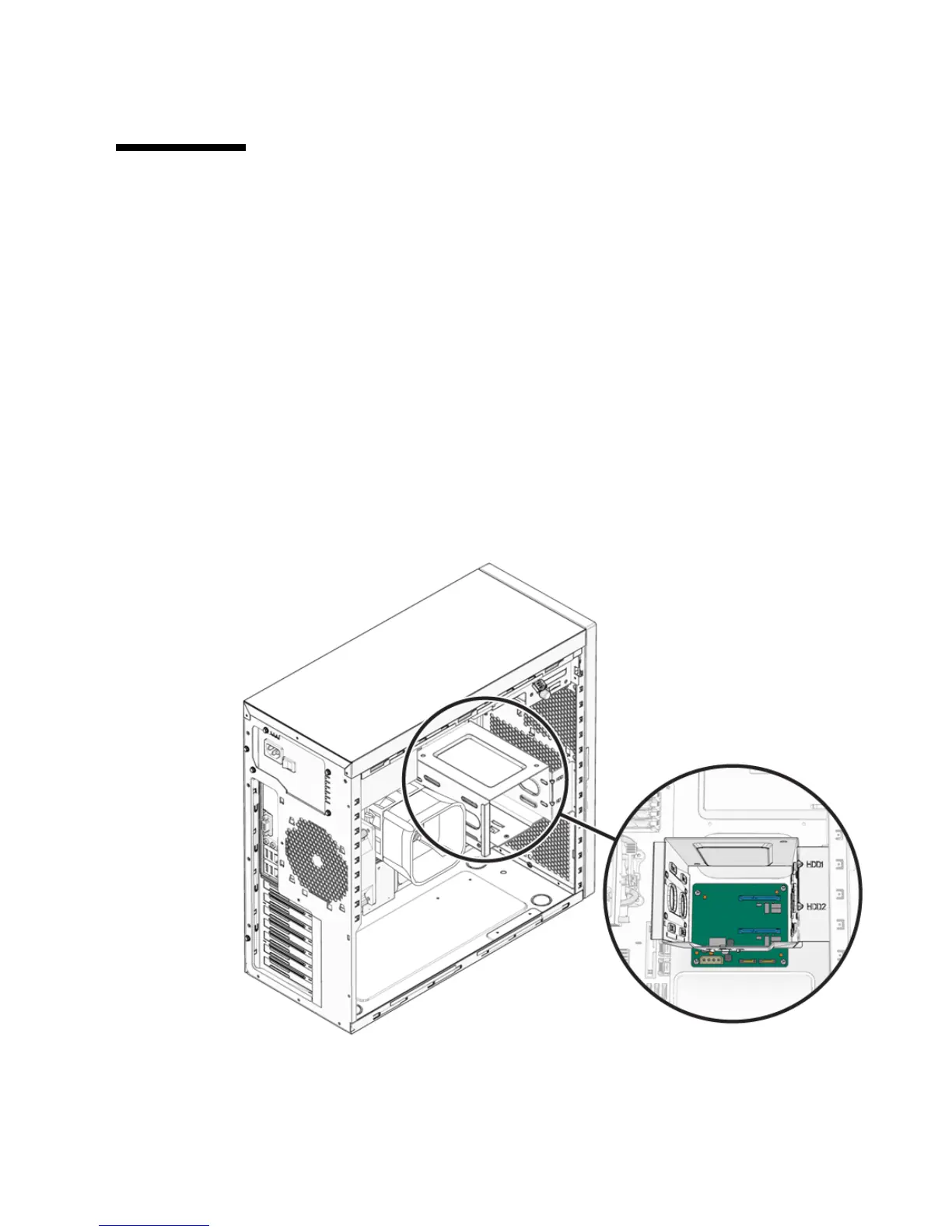

FIGURE 5-8 Location of the Storage Backplane
To Next Page
