5.2.3 Removing the Front Bezel
Note – Do not remove the front bezel unless removal is required to complete the
current maintenance procedure.
Follow these instructions to remove the front bezel.
1. Perform the steps listed in Section 5.2.2, “Powering Off the System and Removing
the Left Side Access Panel” on page 5-3.
2. Loosen the two left side bezel tabs (see
FIGURE 5-2) by gently pressing the side of
each tab inward and slightly forward.
The edge of the bezel nearest the tabs moves slightly away from the front of the
chassis as the ridges holding each tab in place are released.
Caution – Be very careful when pulling the bezel away from the chassis. The bezel
tabs and the chassis hooks might break if you apply too much force or attempt to
swing the bezel open.

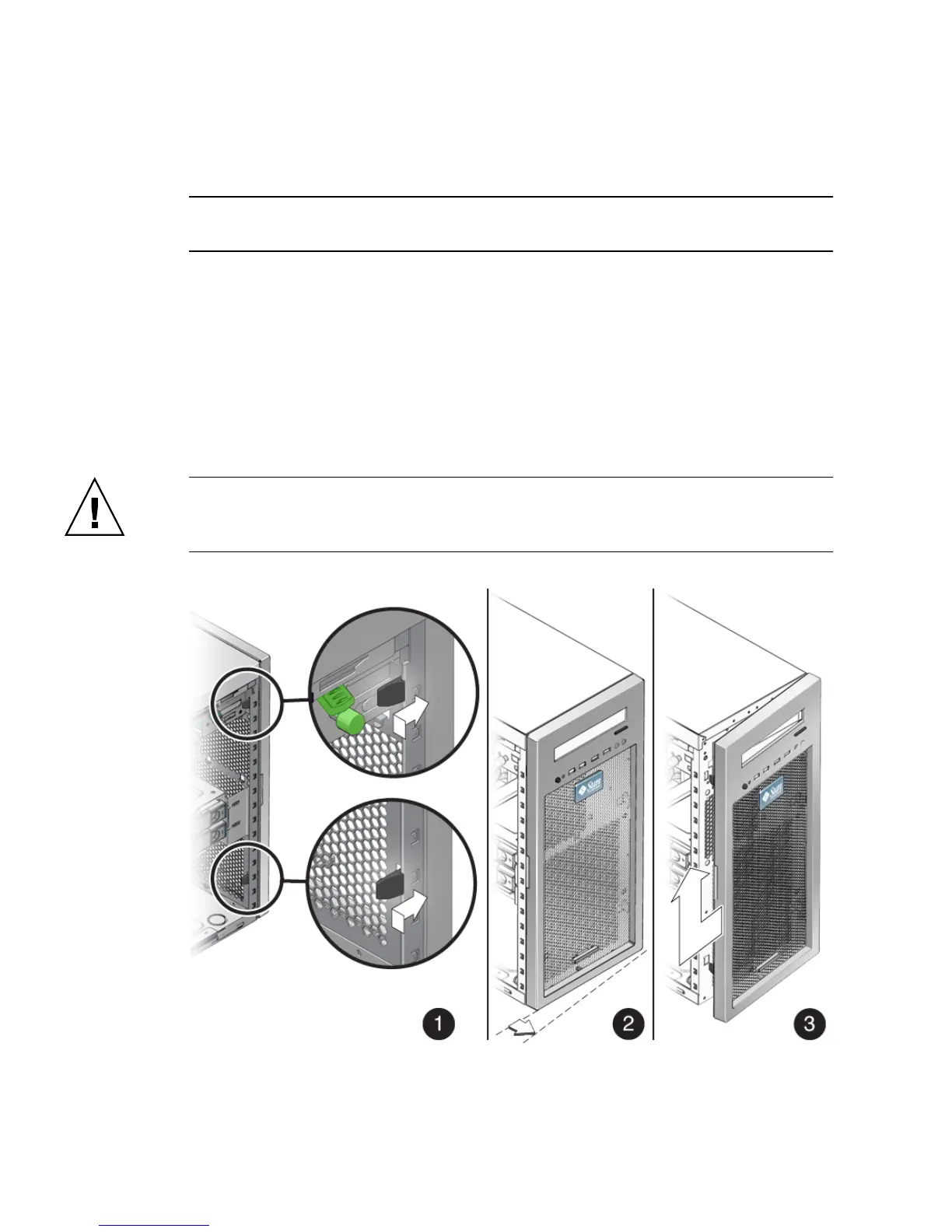

FIGURE 5-2 Removing the Front Bezel
