Sun Microsystems Ultra 20 M2 - FIGURE 5-18 Installing a PCI-E Graphics Card

5-28 Sun Ultra 20 M2 Workstation Service Manual • January 2007
8. If you are installing an NVIDIA FX3500 graphics card, connect the graphics power
cable to the connector on the card. This might require moving the cable out of its
cable tie.

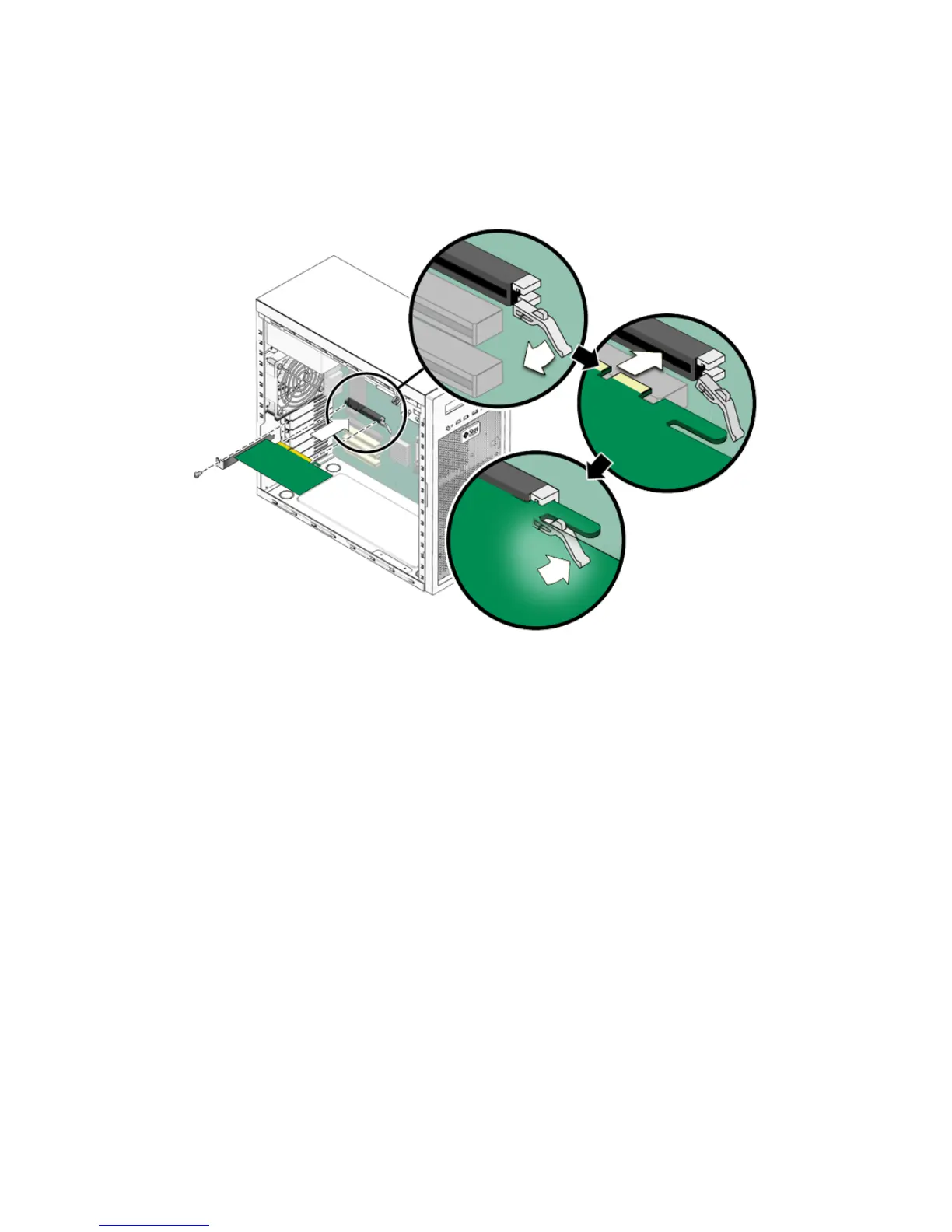

FIGURE 5-18 Installing a PCI-E Graphics Card
