Chapter 5 Maintaining the Workstation 5-35
5. Insert a new battery with the positive sign (+) facing up (see FIGURE 5-22).
Tilt the battery into the battery connector, angling the battery under the battery
latch. Slide the battery until it clicks into place.

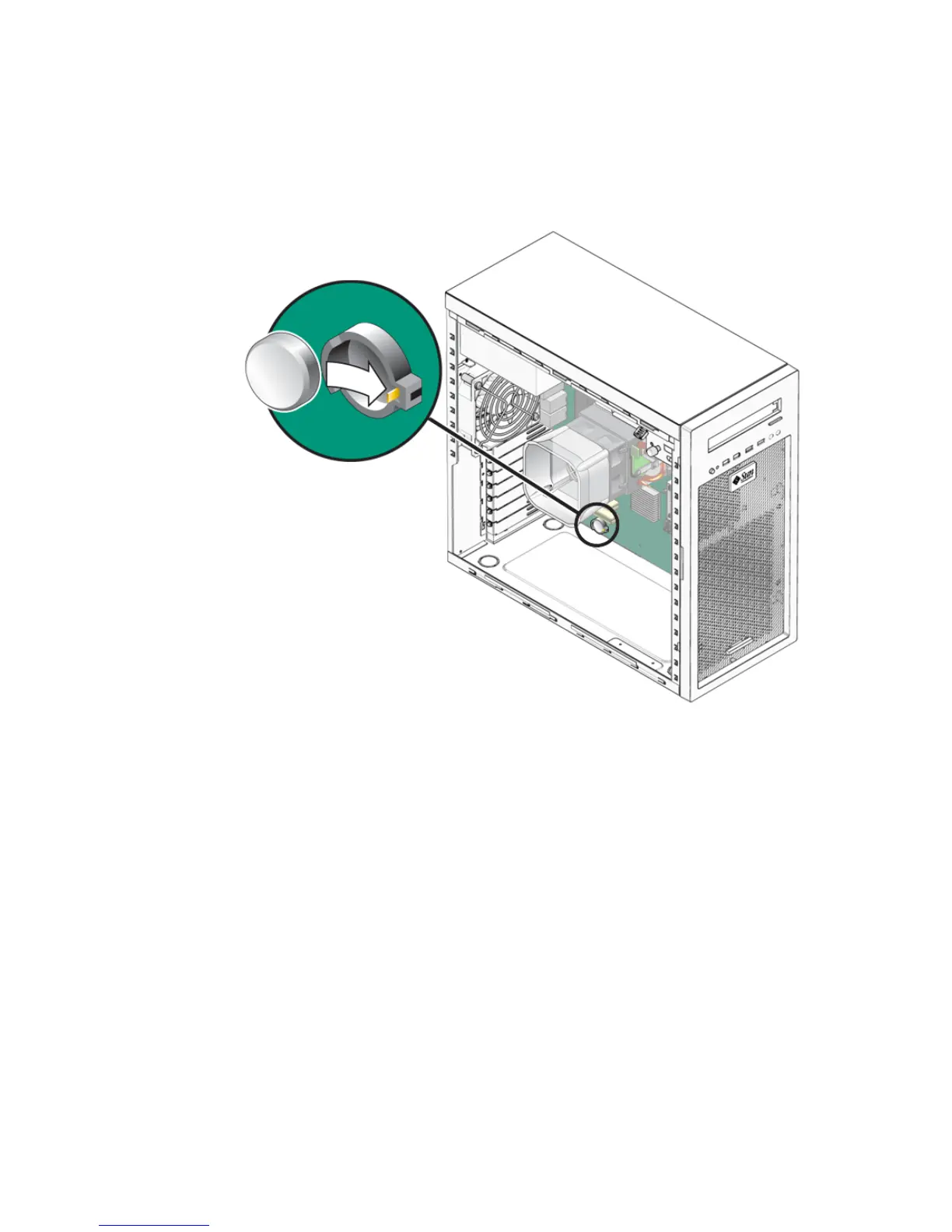

FIGURE 5-22 Installing a System Battery
6. Close the system by performing the steps in Section 5.3.1, “Postinstallation
Instructions” on page 5-5
