Sun Microsystems Ultra 20 M2 - FIGURE 5-20 Installing a PCI Card

5-32 Sun Ultra 20 M2 Workstation Service Manual • January 2007
6. Position the card over the selected slot (see FIGURE 5-20).

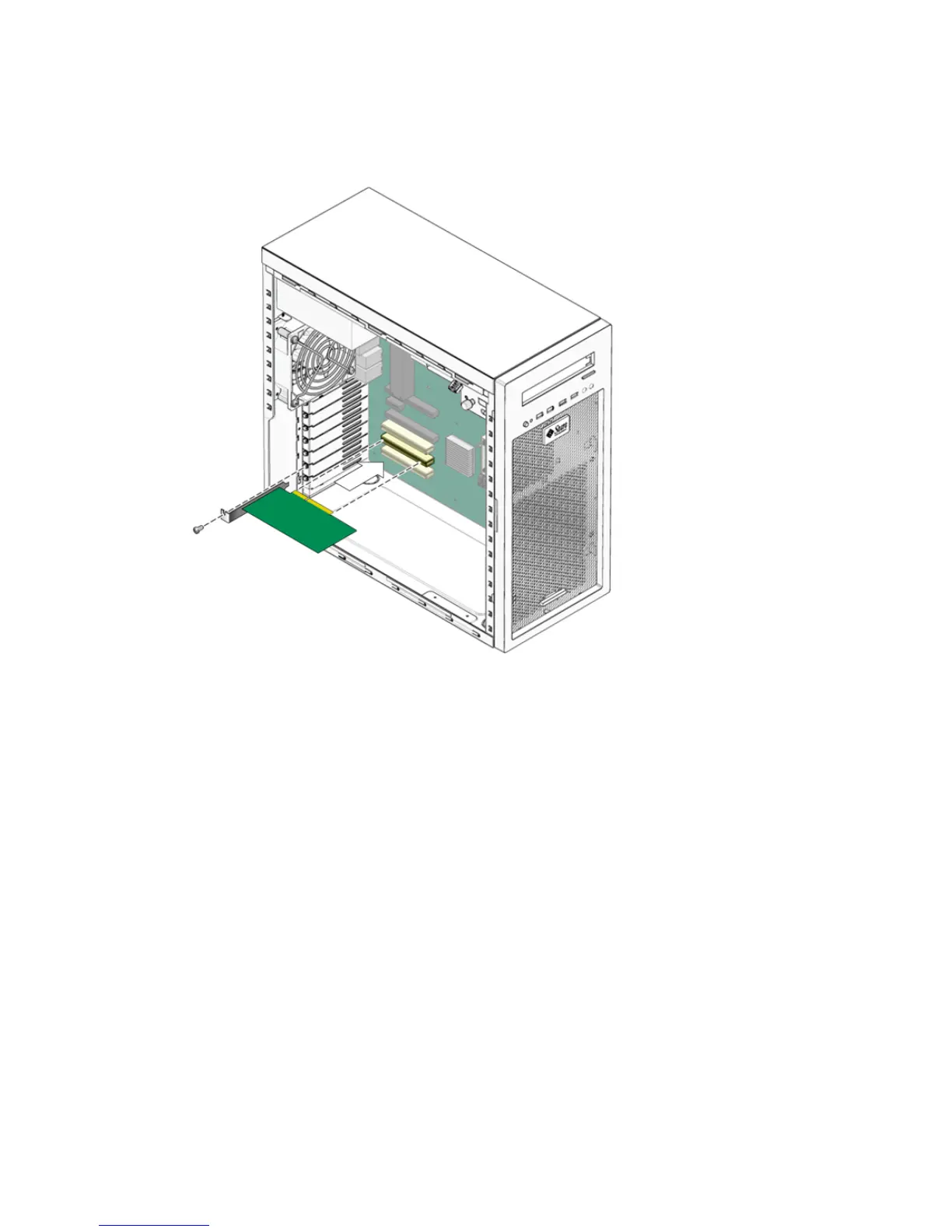

FIGURE 5-20 Installing a PCI card
7. Press down on the card until it is completely seated in the slot.
8. Fasten the retaining screw into place. Torque the screws to 8- to 9-inch pounds.
9. Close the system by performing the steps in Section 5.3.1, “Postinstallation
Instructions” on page 5-5.
