Chapter 2 Unpacking, Cabling, and Powering the Sun Ultra 20 M2 Workstation 2-5
5. Connect the monitor cable as follows:
■ If a PCI Express graphics card is not installed in the top PCI-E slot, connect the
monitor to the onboard video connector. See the top of
FIGURE 2-3.
■ If a PCI Express graphics card is installed in the top PCI-E slot, connect the
monitor to the graphics card connector. See the bottom of
FIGURE 2-3.
Your graphics card might require a DVI cable to connect to your monitor.

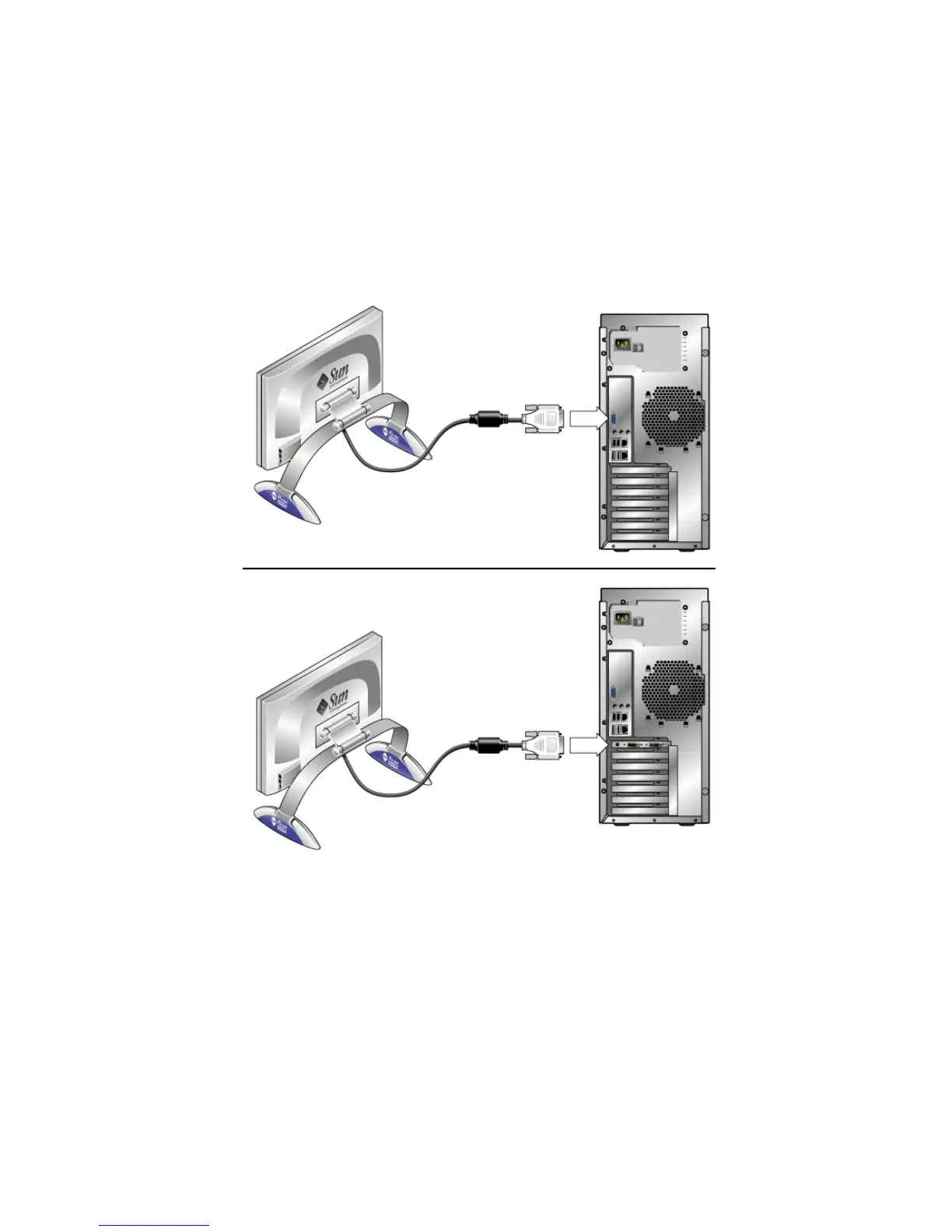

FIGURE 2-3 Connecting the Monitor to the System
6. Connect any additional external devices to the workstation’s other connectors.
