OPERATION & MAINTENANCE MANUAL SWE50E/SWE60E/SWE70E/SWE80E9/SWE100

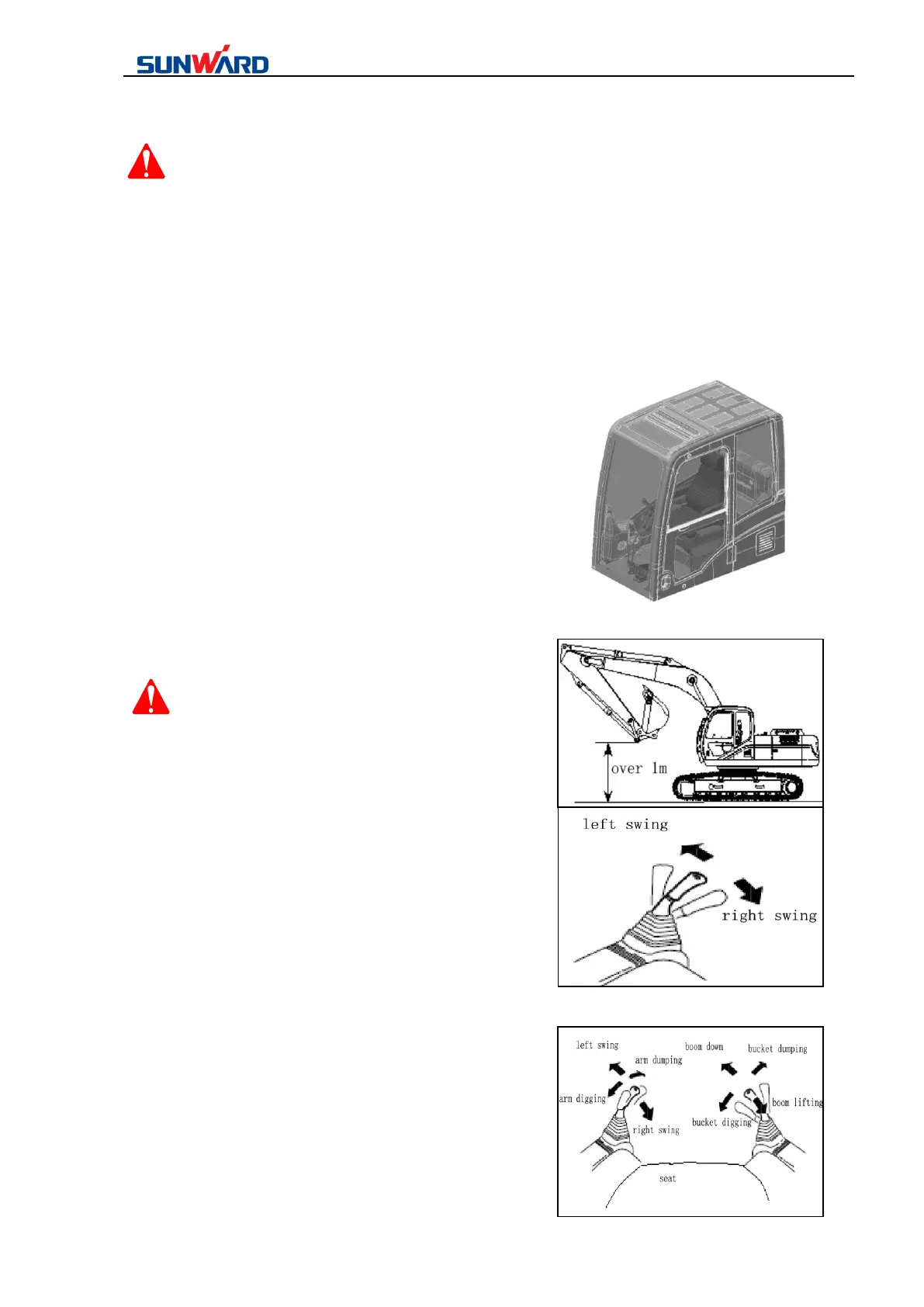

3.10.10 Upper-carriage swing
Warning
Before swing operation, check that
the surrounding area is clear of
obstacles and has sufficient space to
swing
During swing operation, do not extend
bucket and arm at one time, unless the
space is larger than machine’s max
digging radius.
Start the engine, set safety lever to :ON
position.
Raise boom, fold arm and bucket to keep work
equipments at a height of 1 M above ground.
Operate the lever on the left of seat： to swing
the machine to the left, push lever to the left; to
swing the machine to the right, push lever to
the right.
3.10.11 Operate work equipments
Warning
When the machine is set to
“auto-idle” state, the machine will
stop all action for 10 seconds, and
then engine will go to idle speed
state automatically. Since then, any
operation on lever will shift the
machine to high rev.
The moving speed of work equipments is
in proportion with distance of
handling lever. i.e. the bigger the
distance of lever being moved is , the
faster the work equipments move.
Avoid sudden movement at high speed.
Work equipments are regulated by levers
located on both side of seat.
Left control lever
Forward, backward movement controls
bucket dumping and digging.
Left, right movement controls upper-structure
left swing and right swing.
Right control lever
Forward, backward movement controls
boom down movement and up movement.
Left, right movement controls bucket
digging and dumping.
