SUNWARD SWE50E - Left Pilot Control Joystick; Throttle Control Knob

OPERATION & MAINTENANCE MANUAL SWE50E/SWE60E/SWE70E/SWE80E9/SWE100
69

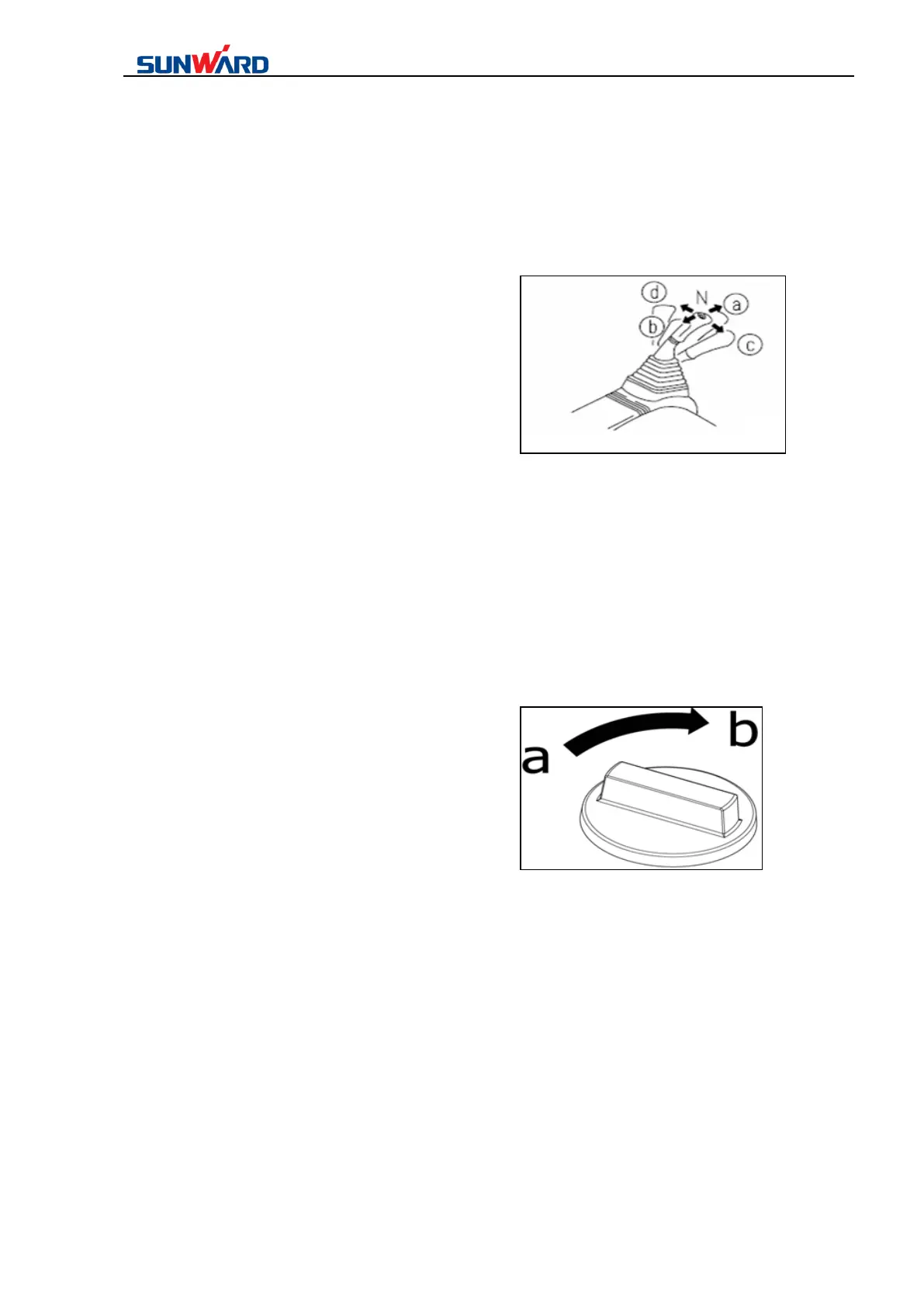

3.3.11 Left pilot control joystick
（with automatic slow-down device)
 Left side work equipment control joystick (8) is
used to operate arm to dig or dump and control
upper-structure to slew.
（a）arm dumping
（b）arm digging
（c）right slewing
（d）left slewing
N（neutral）：the upper-structure and the
arm stay where they are and remain
immovable.
3.3.12 Throttle control knob
 Control knob is used to regulate engine rev and
power output.
（a） low idle speed position
（b） high idle speed position
 When shifting fuel control knob from position
“a” to position “b”, engine rev will increase.；
 When shifting the knob from position “b” to
“a”, engine revolution will decrease.
