SUNWARD SWE50E - Overall Machine View

OPERATION & MAINTENANCE MANUAL SWE50E/SWE60E/SWE70E/SWE80E9/SWE100
57

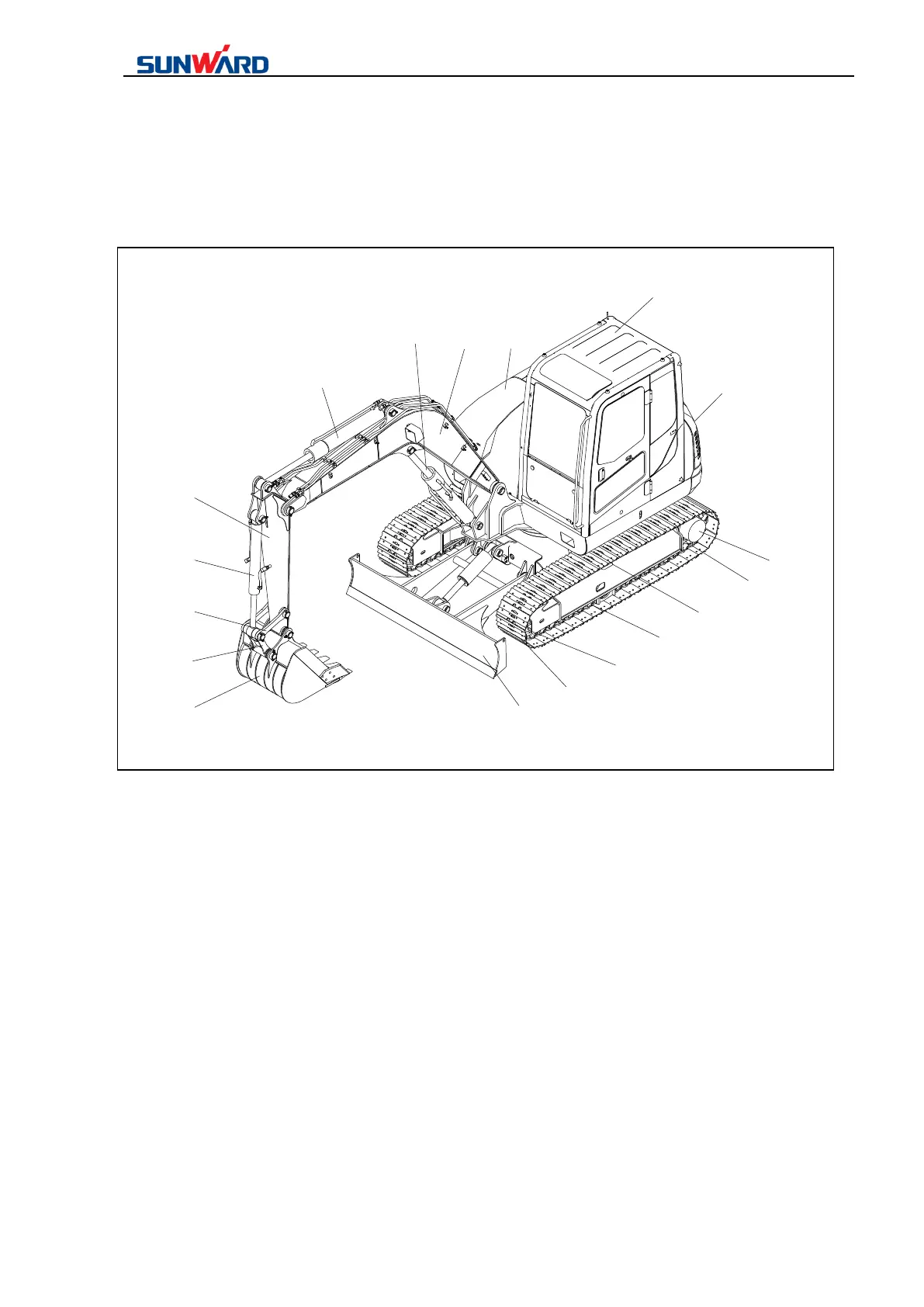

3.1 Overall machine view
 To operate machine safely and properly, it’s crucial to fully understand the machine’s individual
structure and operation methods for controlling equipments, as well as the presented meaning.
1、bucket 2、bucket link 3、idler link 4、bucket cylinder
5、arm 6、arm cylinder 7、boom cylinder 8、boom
9、engine cover 10、cab 11、counterweight 12、travel motor
13、sprocket 14、carrier roller 15、track roller 16、idler roller
17、track 18、push bucket assembly
